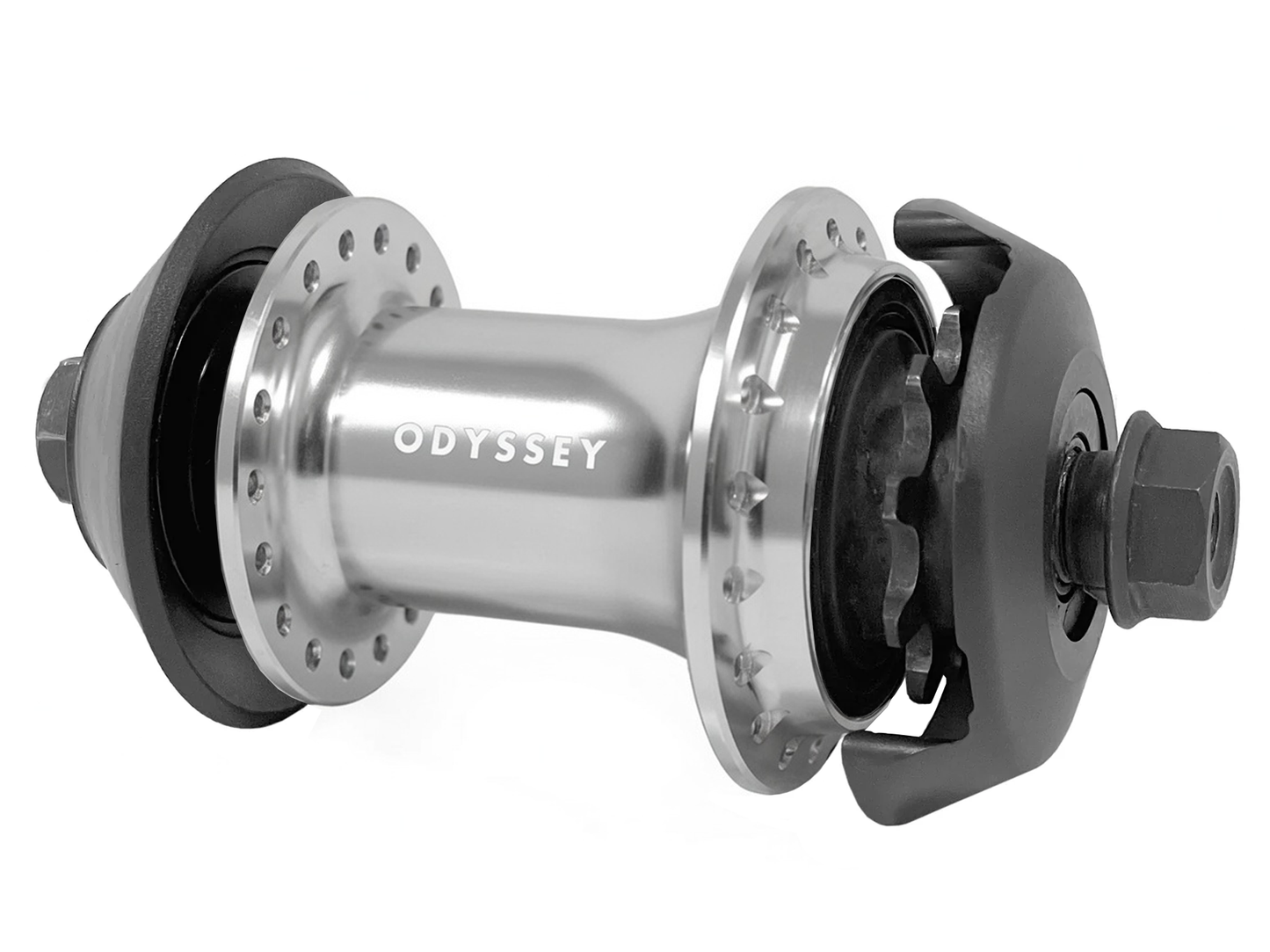

Odyssey Hexagram Rear Cassette Hub

The Hexagram is an all-new, lightweight freestyle cassette hub featuring faster, alternating 6-pawl engagement that is RHD/LHD switchable and comes with plastic drive and non-drive side guards.

Key Features
• 7075-T6 aluminium hub shell
• 6 Pawls with alternating 3 Pawl engagement
  - Improved, faster engagement than traditional 3 Pawl designs
• All-new 9T driver design with improved durability
  - Sealed cartridge bearing and precision needle roller assembly
  - Proven LHD/RHD square tooth profile
  - Simplified service procedure
• Pawls and springs mount in the hubshell
  - Keeps driver simple and low maintenance
  - Makes swapping pawls and springs much easier
  - LHD/RHD switchable
  - Alternating 3 pawl engagement
• Drive-side and Non-drive-side guard compatibility
  - PC guards included for both sides
  - Slim NDS collar available separately for a clean look without guards
• 6903 hubshell bearings
  - Easily obtainable, available at most bike shops, often on-hand
  - Easy knock-out/press-in serviceability
• 17mm 4130 chromoly inbound axle with 4130 chromoly 14mm bolts

SPECS
Driver: 9T, RHD/LHD Switchable
Axle: 4140 chromoly with inbound 14mm bolts
Spoke Configuration: 36-Hole

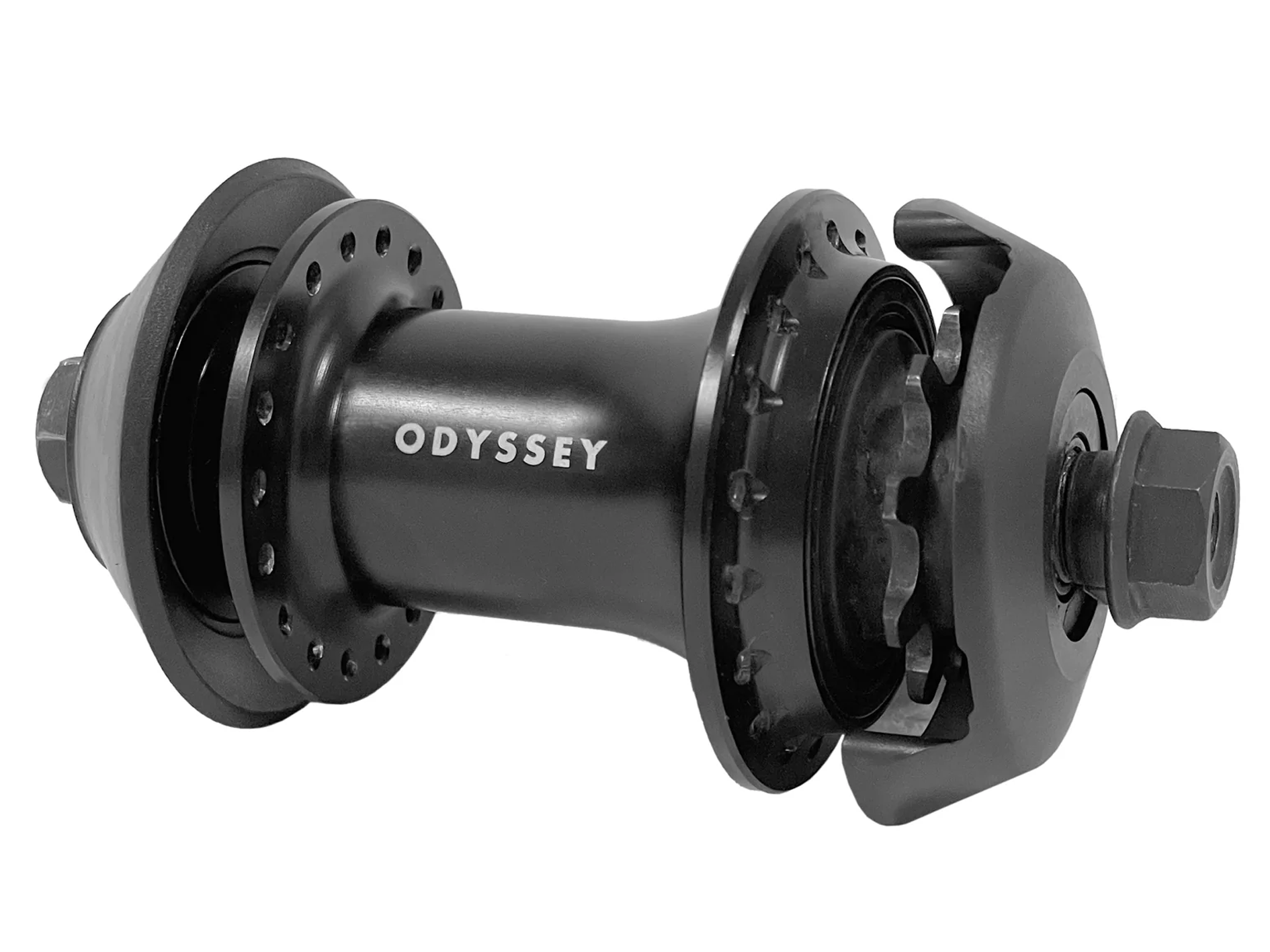

Colour: Black

WHEEL BUILDING INFO
Drive Side Effective Flange Diameter: 55mm
Non-Drive Side Effective Flange Diameter: 48mm
Drive Side Flange to Centre: 28mm
Non-Drive Side Flange to Centre: 26mm

BEARINGS
Hub Shell Non-Drive: 6903 Sealed
Driver: Sealed Precision Caged Needle Roller

WEIGHT
With Guards: 510 grams
Without Guards: 471 grams
