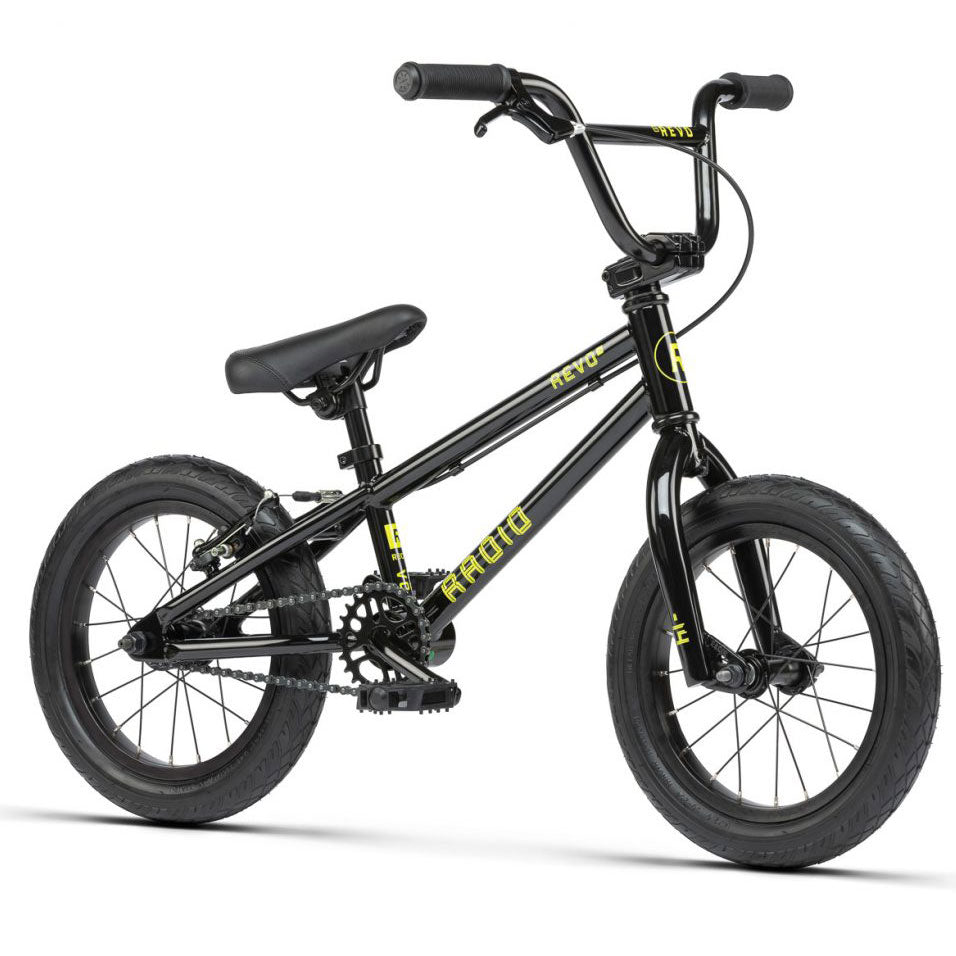

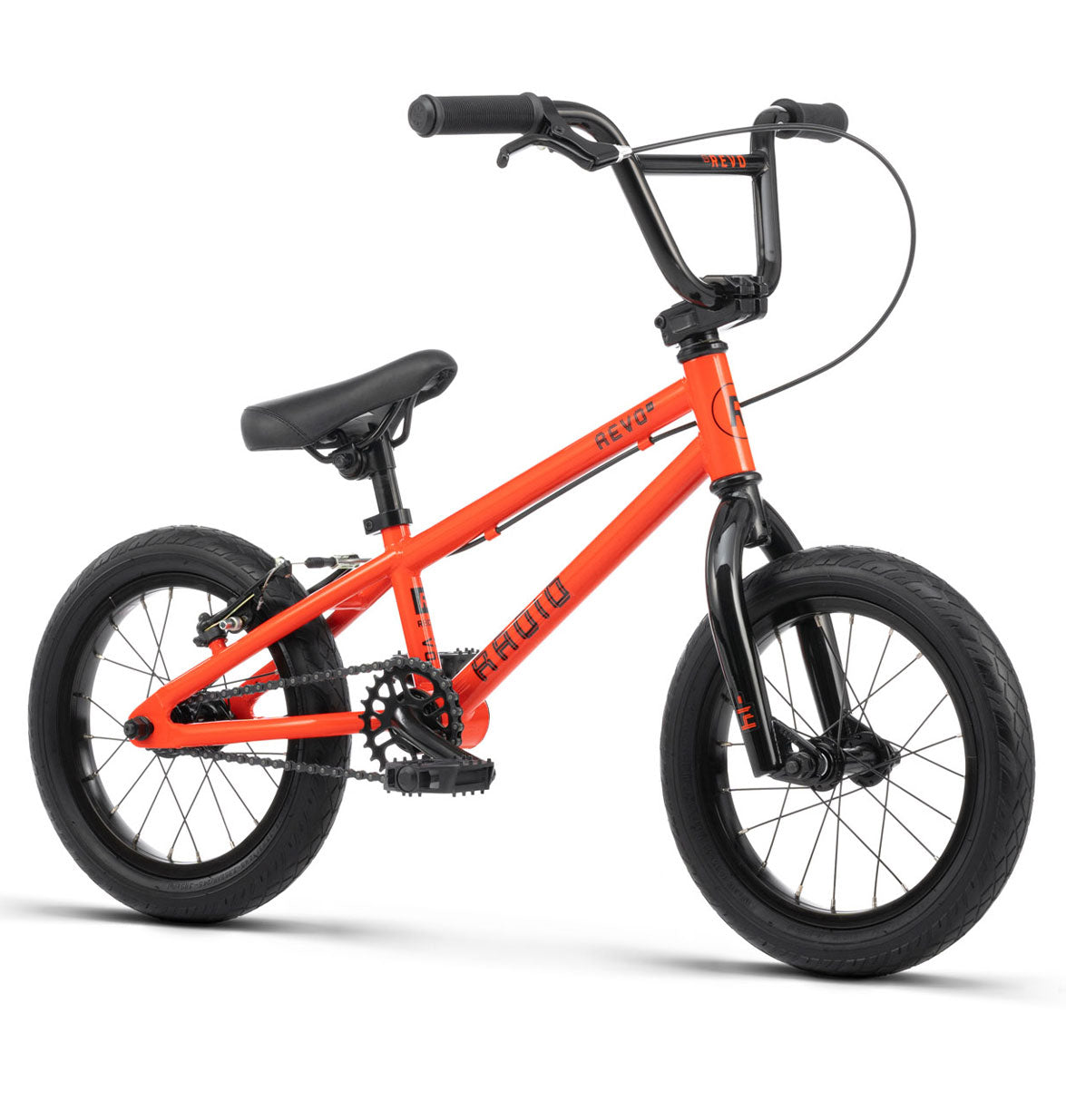

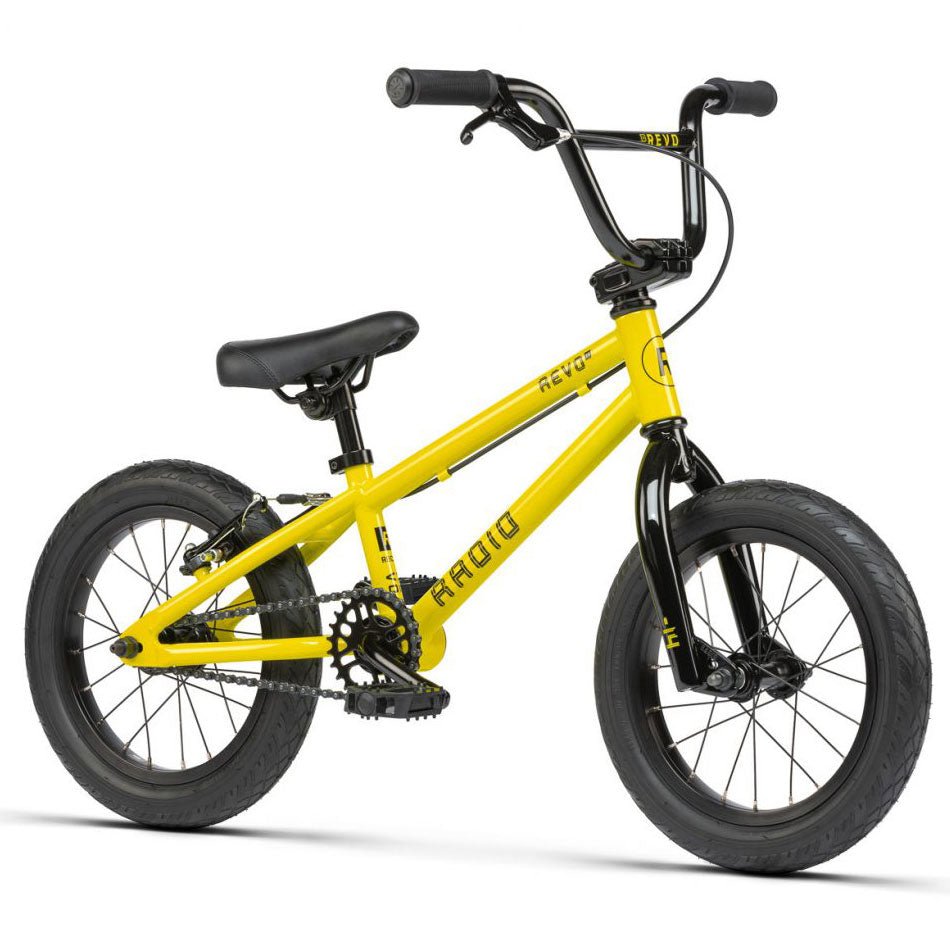

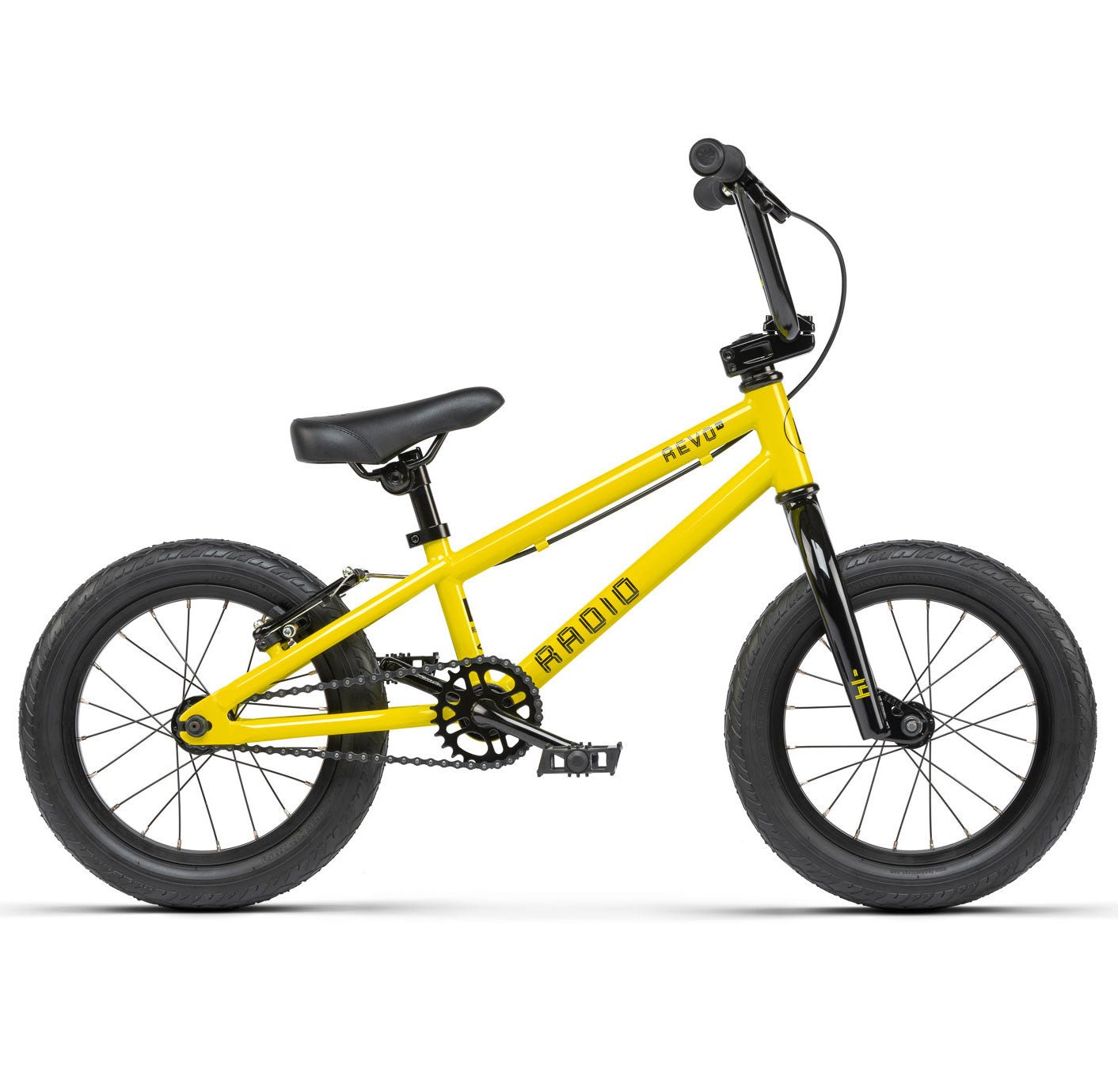

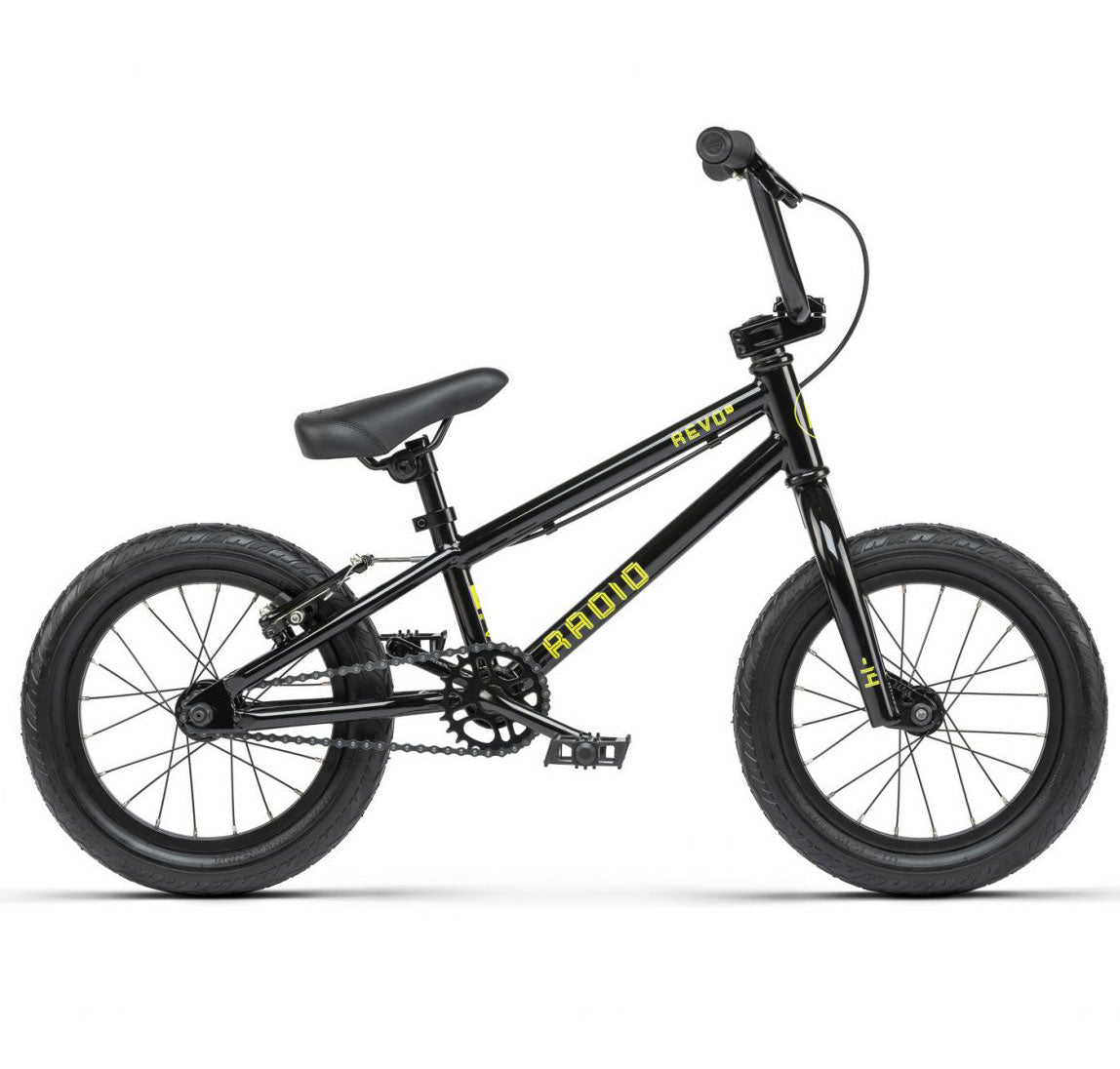

Radio Revo 14" BMX Bike

The Radio Revo 14" BMX bike features great, responsive geometry with good, lightweight parts at an awesome lower price-point. Perfect for the lil one not sure if bmx if forever but sturdy enough to take them as far as dream. Low standover means the young tackers can get on pedals earlier with the stability of bigger then 14' wheels.

Specifications
Frame - Radio 'Revo 14' frame, full 1020 hi-ten
Fork - Radio 'Rookie 14' 1020 hi-ten fork, tapered legs
Handlebar - Radio 'Revo 14' bar, hi-ten
Grips - Radio 'Junior' grips, flangeless, 110mm
Stem - Salt 'Junior' topload stem, 40mm reach
Headset - FSA a-head-set loose ball
Brake lever - Radio 'Junior' alloy brake lever
Brake - Radio 'AM' caliper brake, alloy, front / Radio 'AM-V' V-brake, alloy, rear
Crank - Radio 'Rookie' 1pc crank, forged, Cr-Mo, 102mm
BB - Radio 'US' BB set, looseball
Pedals - Radio 'Junior' pedals, nylon
Chain - KMC S1 chain
Sprocket - Radio 'Rookie' steel 25T sprocket
Driver – 9T, cassette
Front hub - Radio 'Rookie' steel hub, Lb, 20H
Rear hub - Radio 'Rookie' steel hub, Lb, 20H
Front rim - Salt 'AM' rim, straight single wall, 20H
Rear rim - Salt 'AM' rim, straight single wall, 20H
Seat - Radio 'Century' railed seat
Seat post – Radio 'AM' alloy seat post 250mm
Seat clamp - Radio slim alloy seat clamp
Tyres - Radio 'Rookie' tyres, 2.0″ front & rear
Weight - 8.825kg

Frame geometry
Top tube length - 13.7″
Chain stay length - 10.55″
Head tube angle - 72°
Seat tube angle - 73°
Bottom bracket height - 7.5″
Standover height - 5.5″

Handlebar geometry
Rise - 6.5″
Width - 22.4″
Backsweep - 8°
Upsweep - 2.5°
