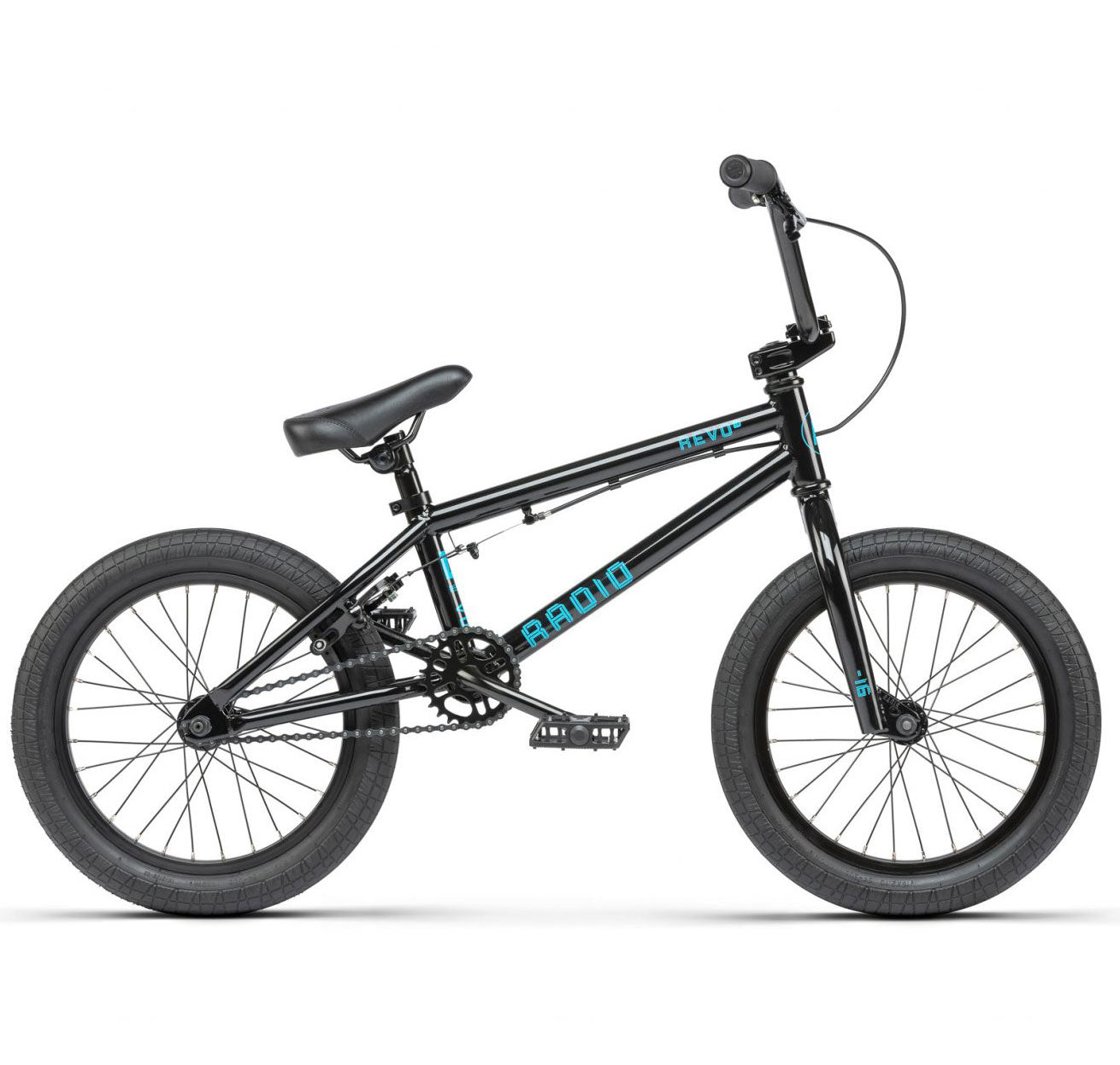

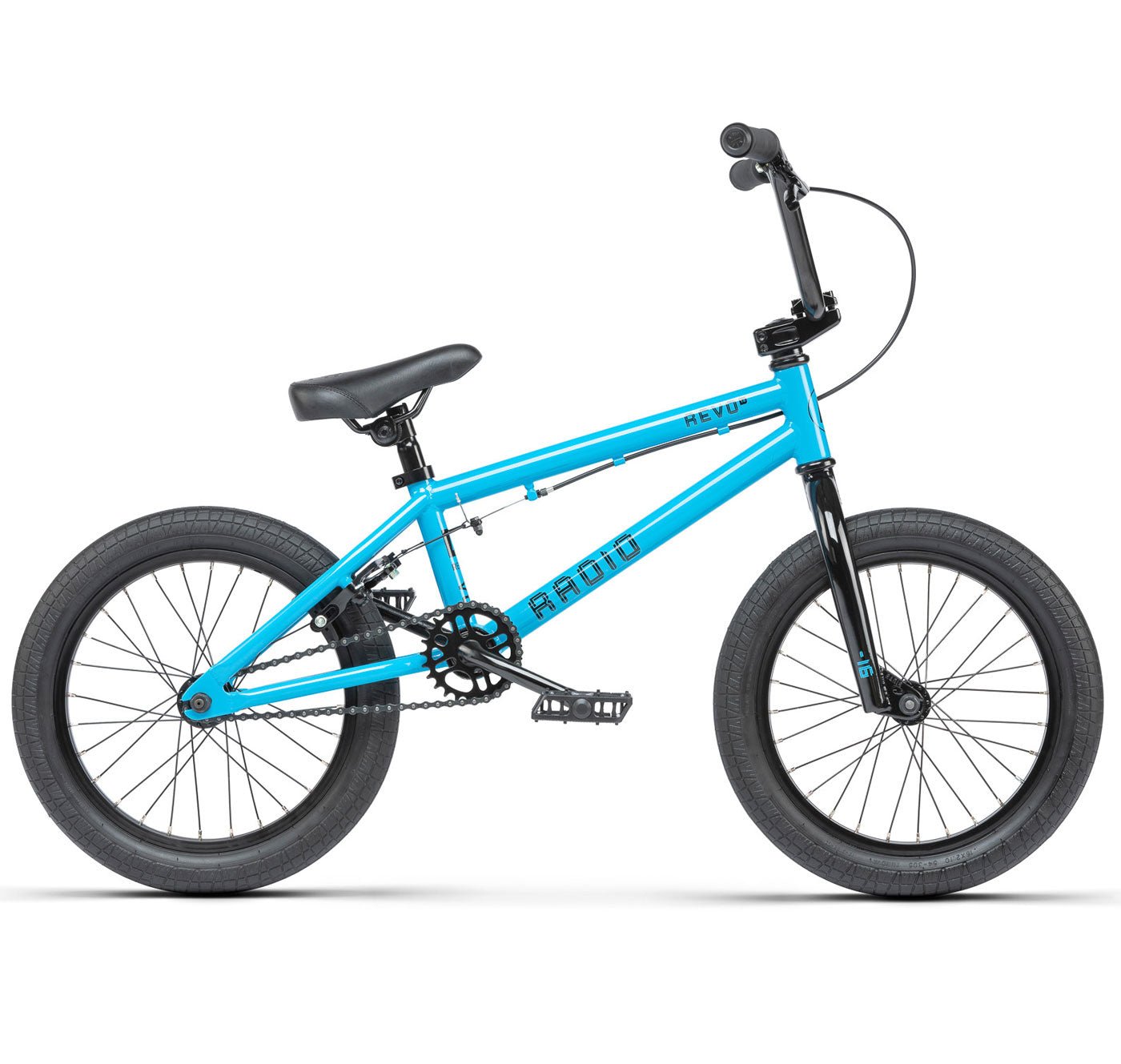

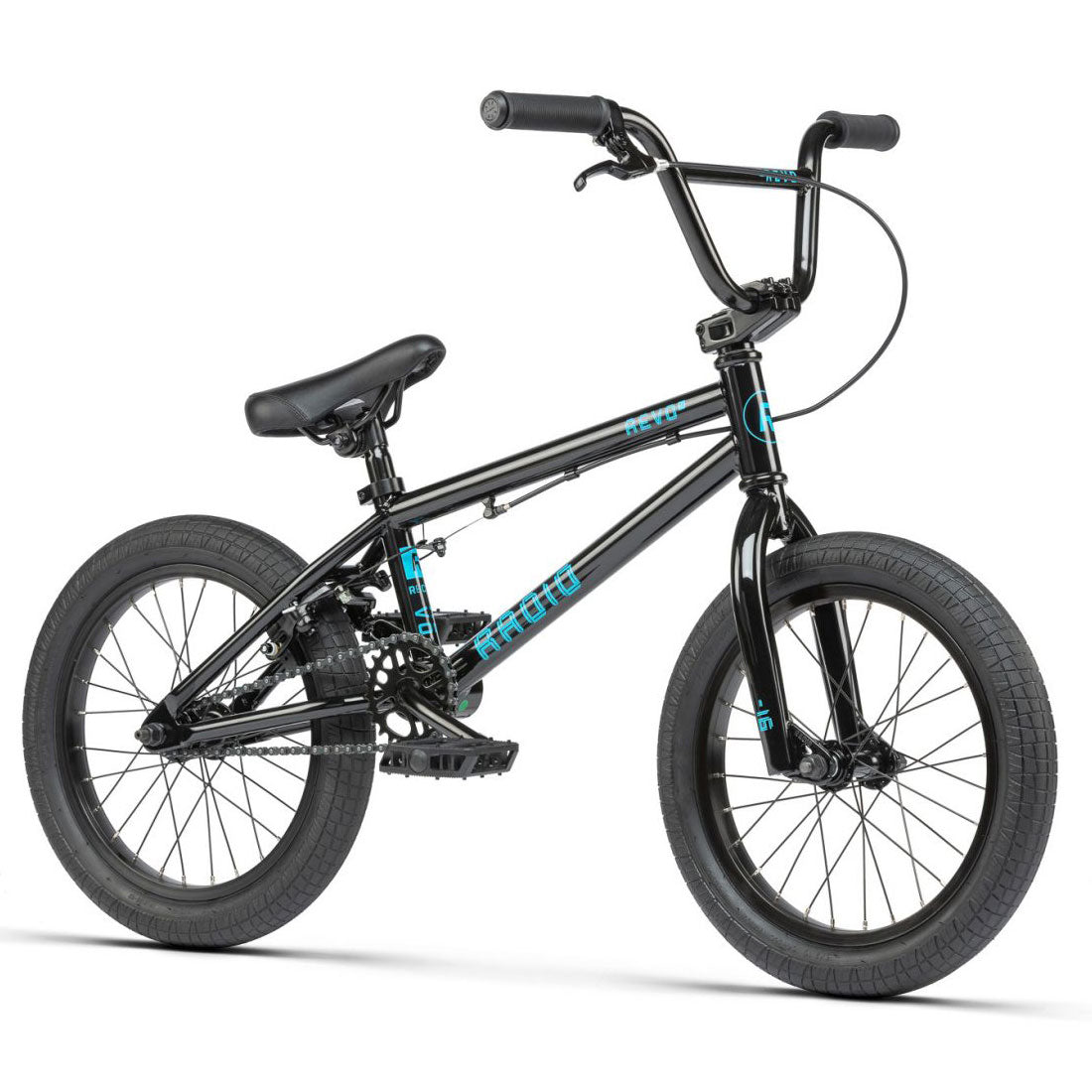

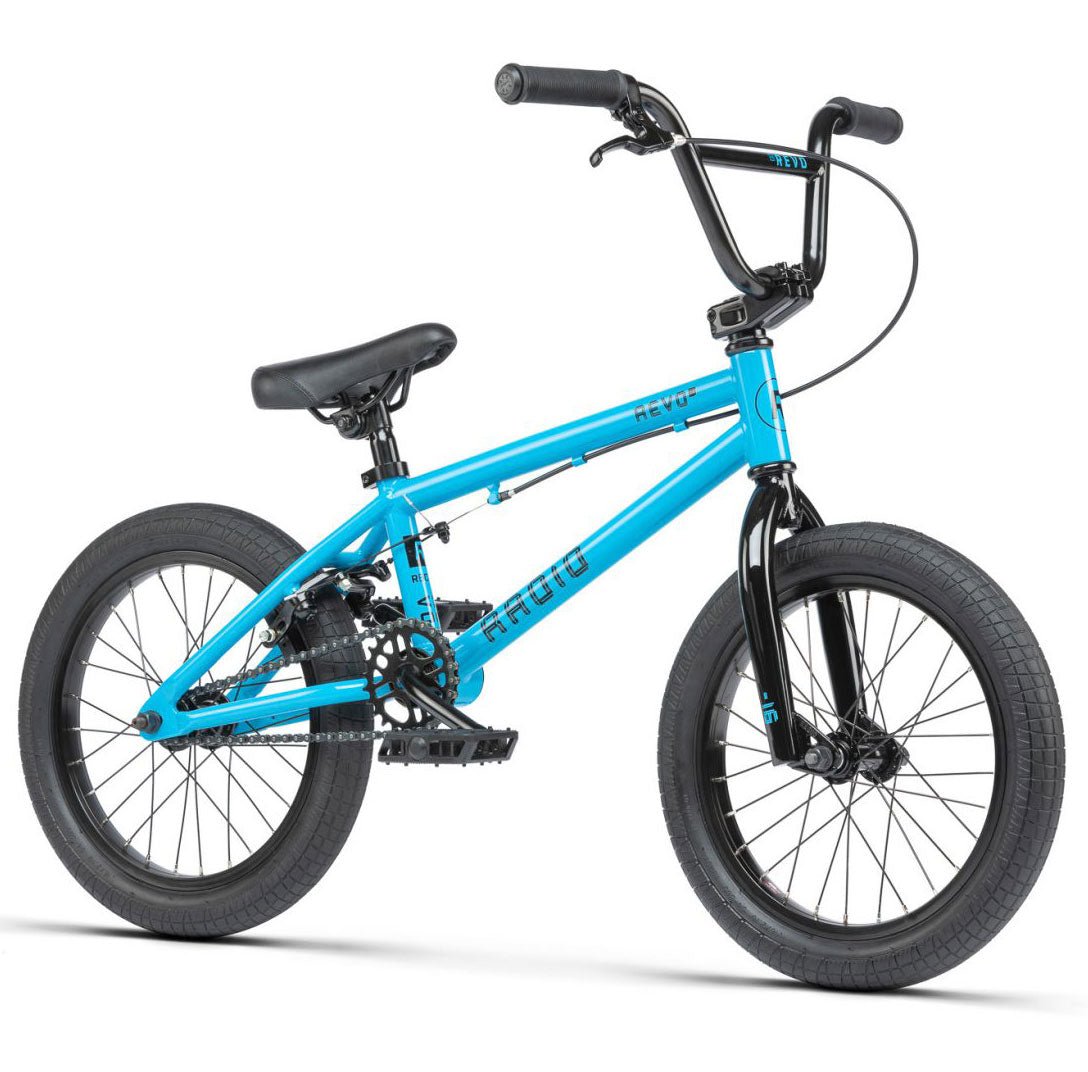

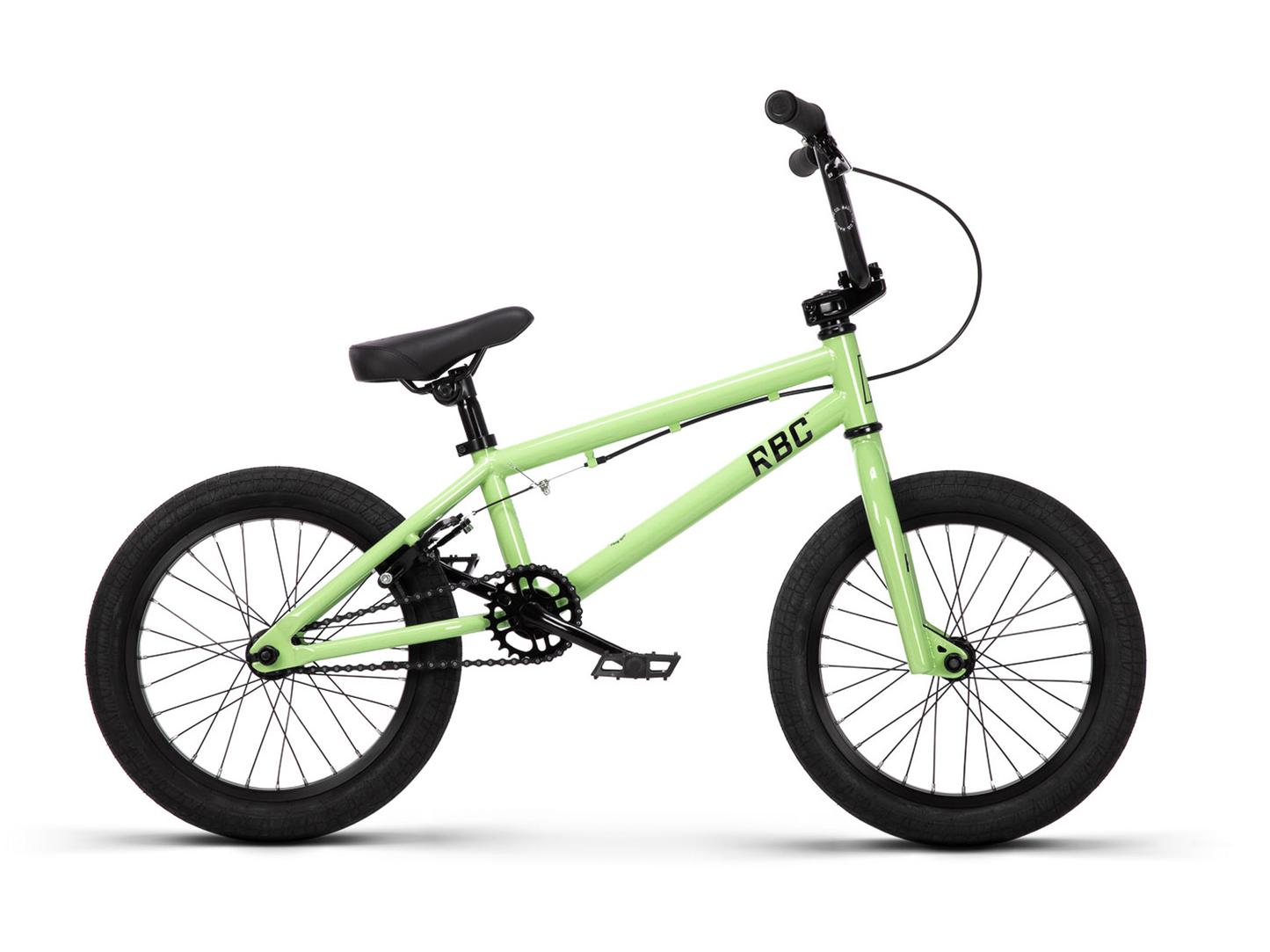

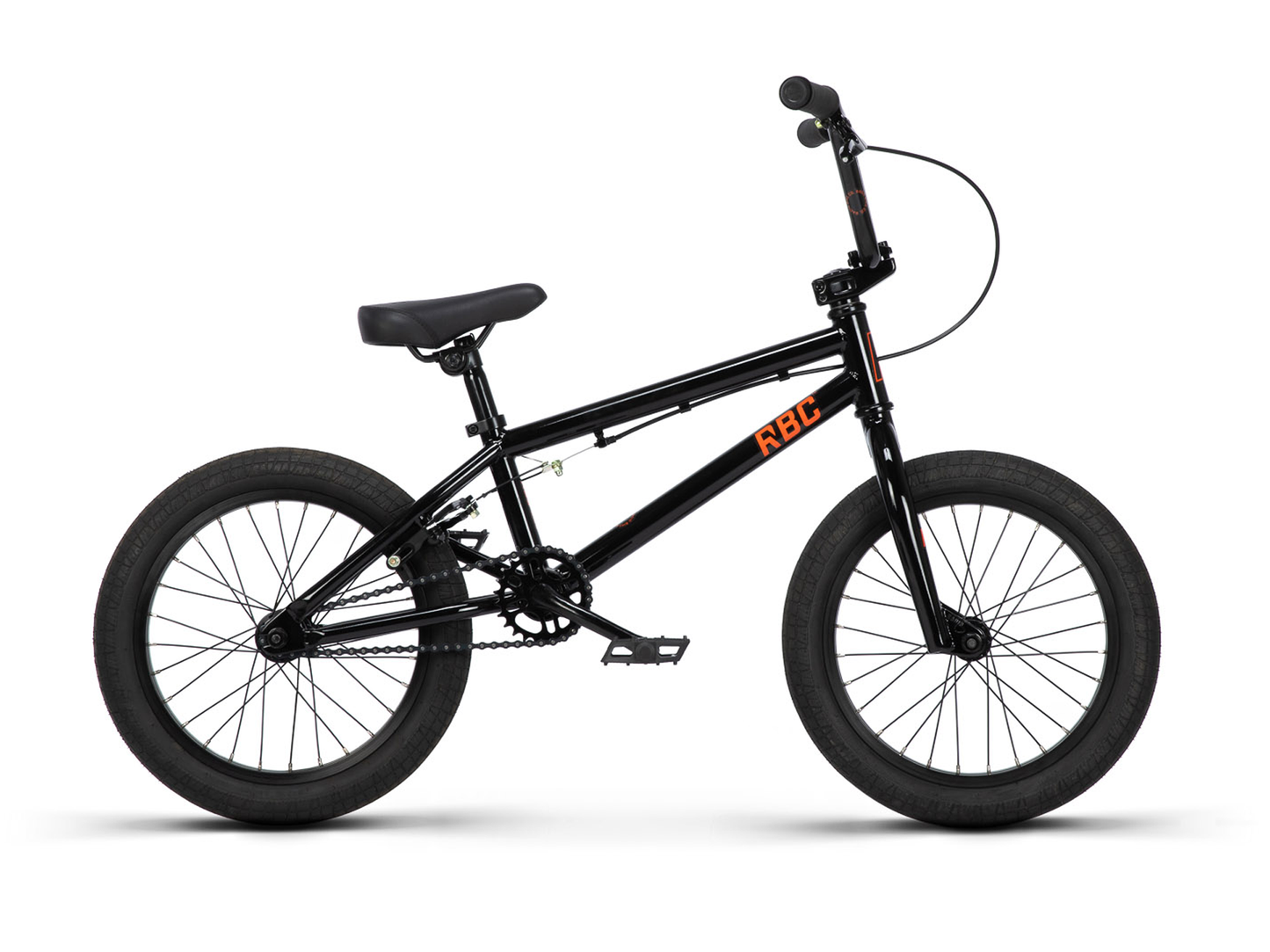

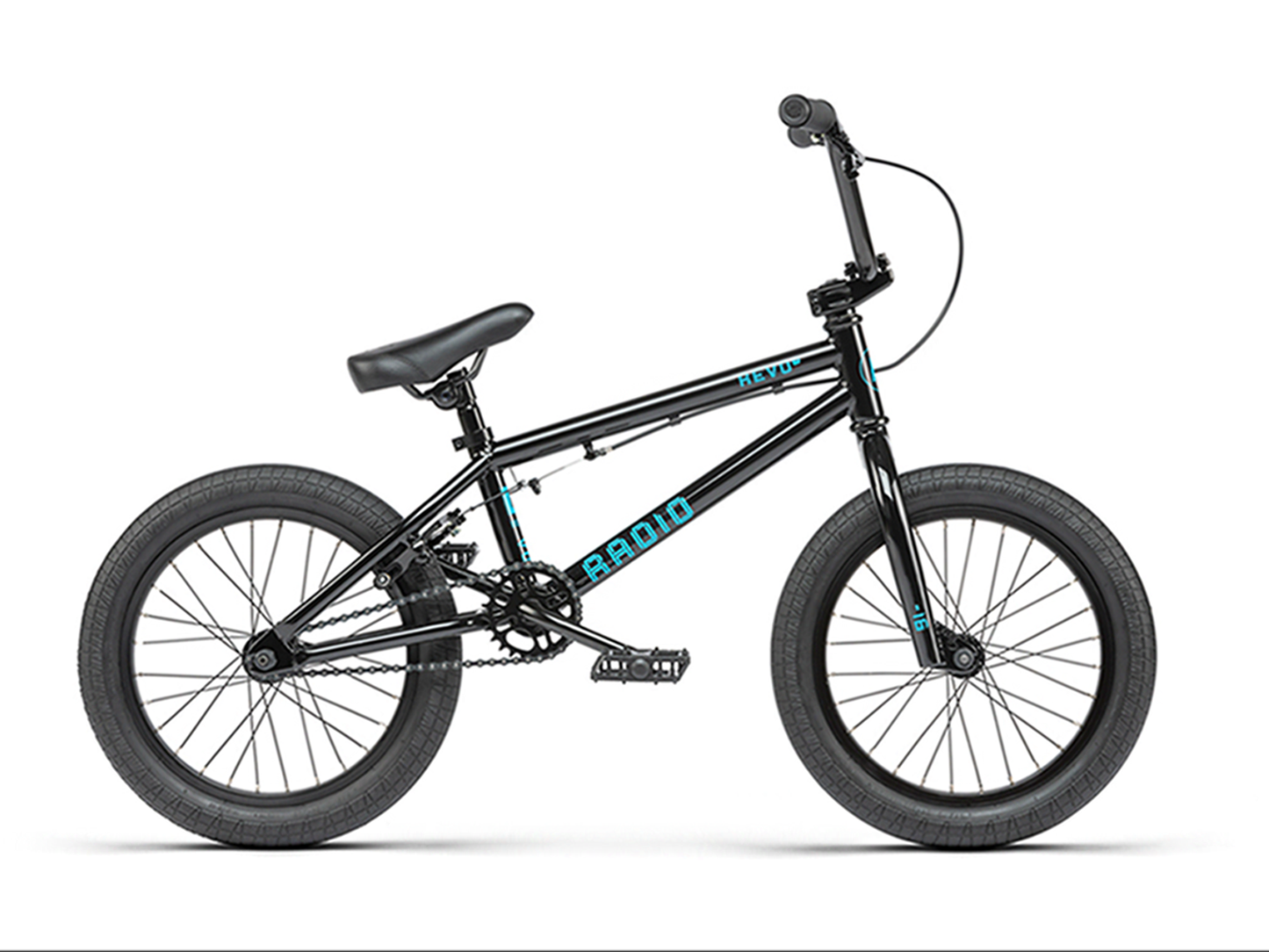

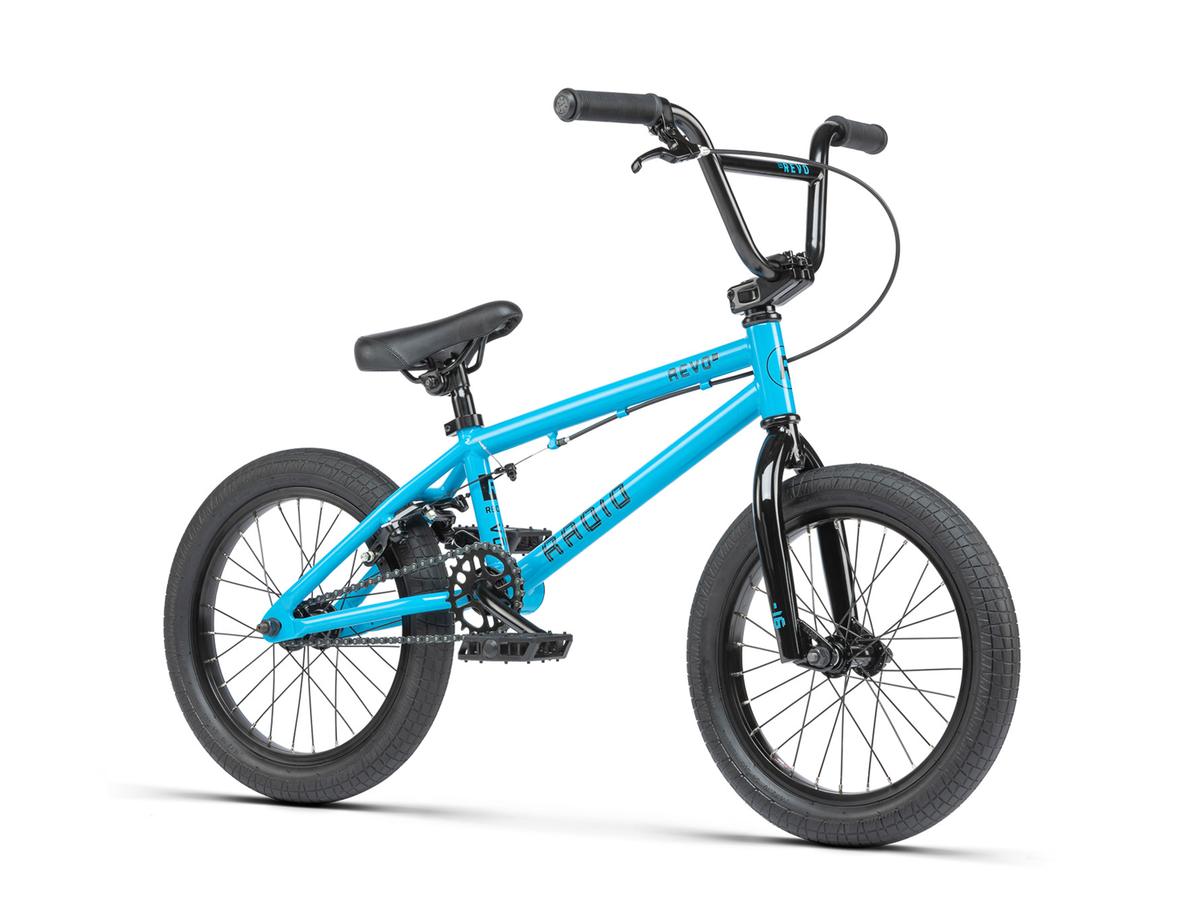

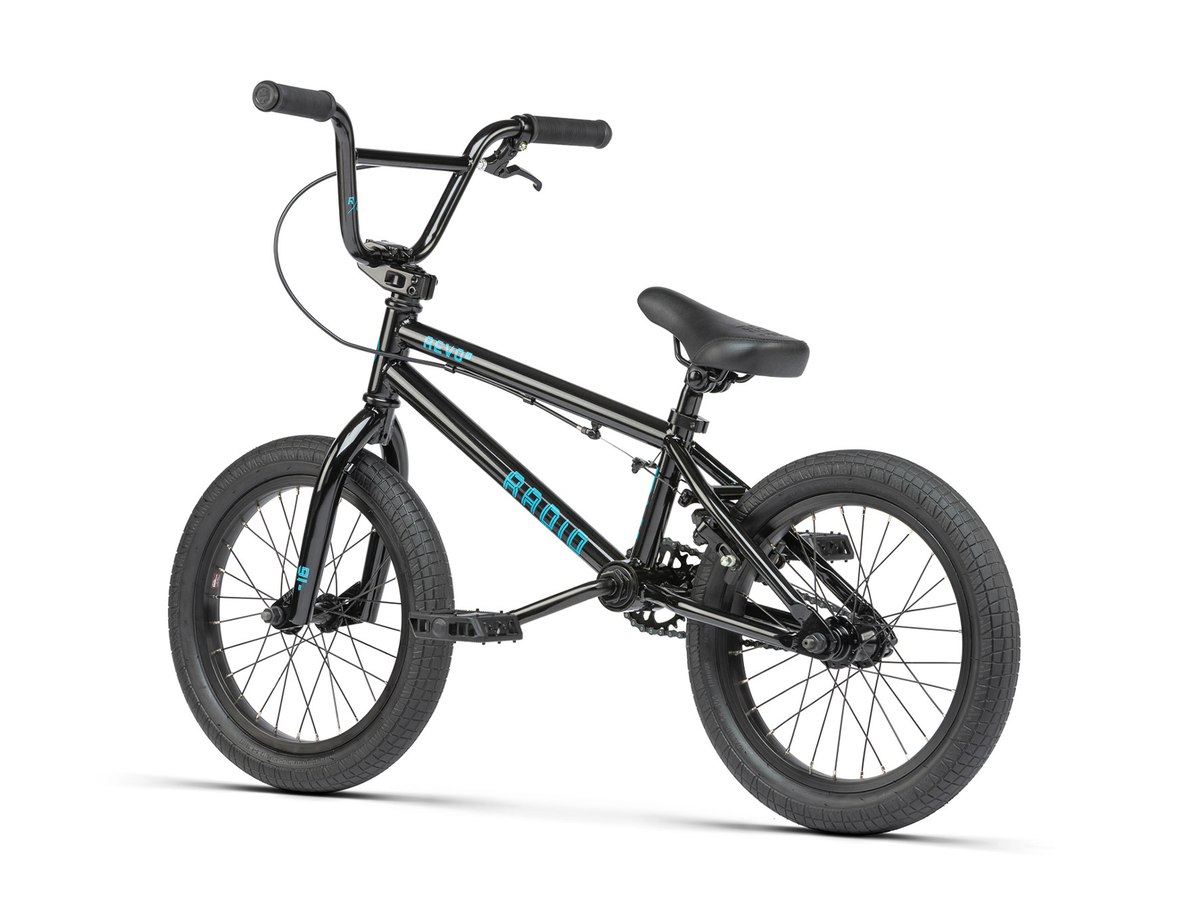

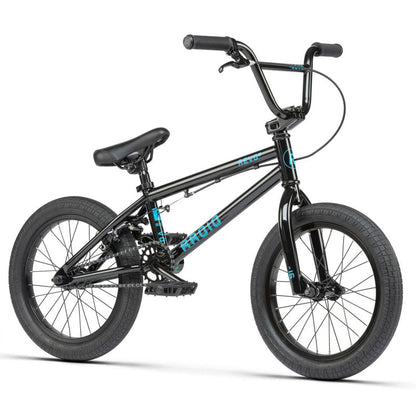

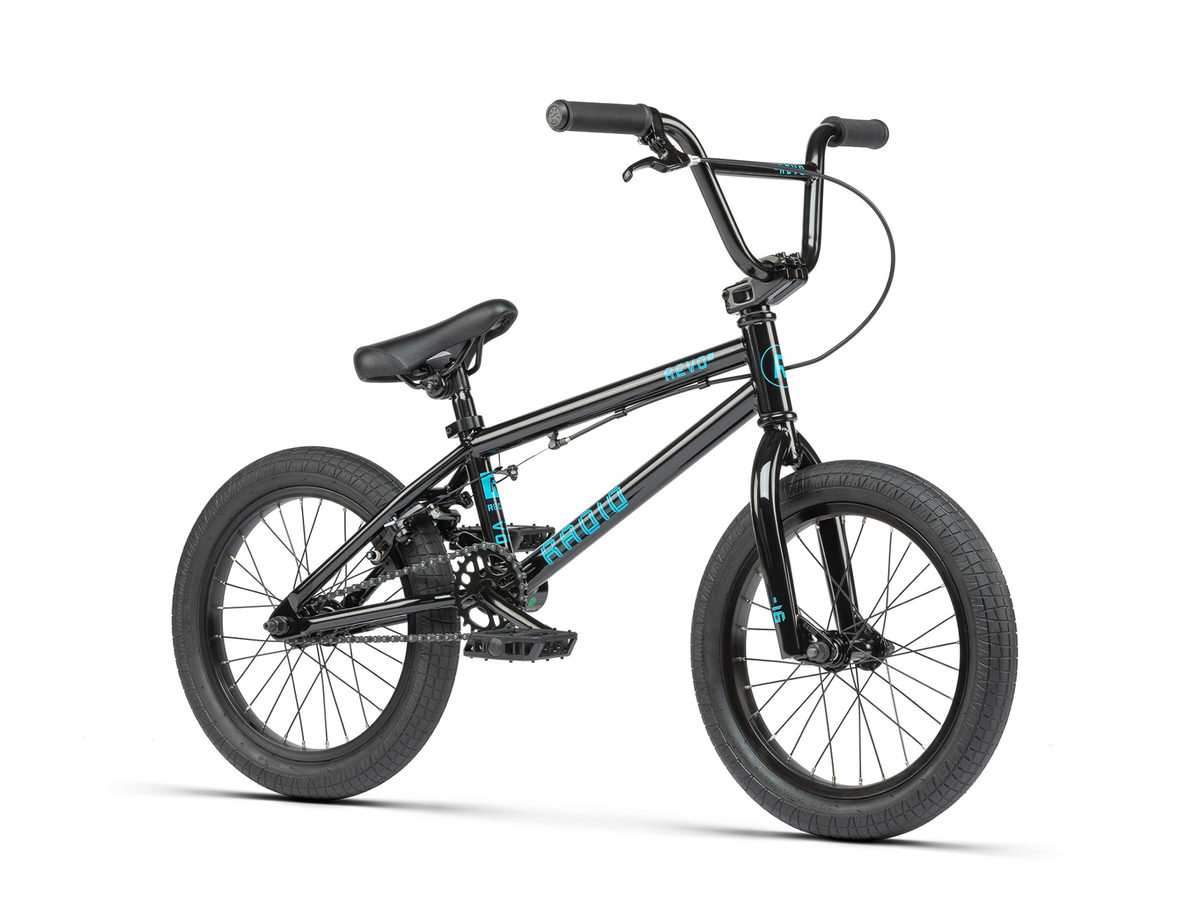

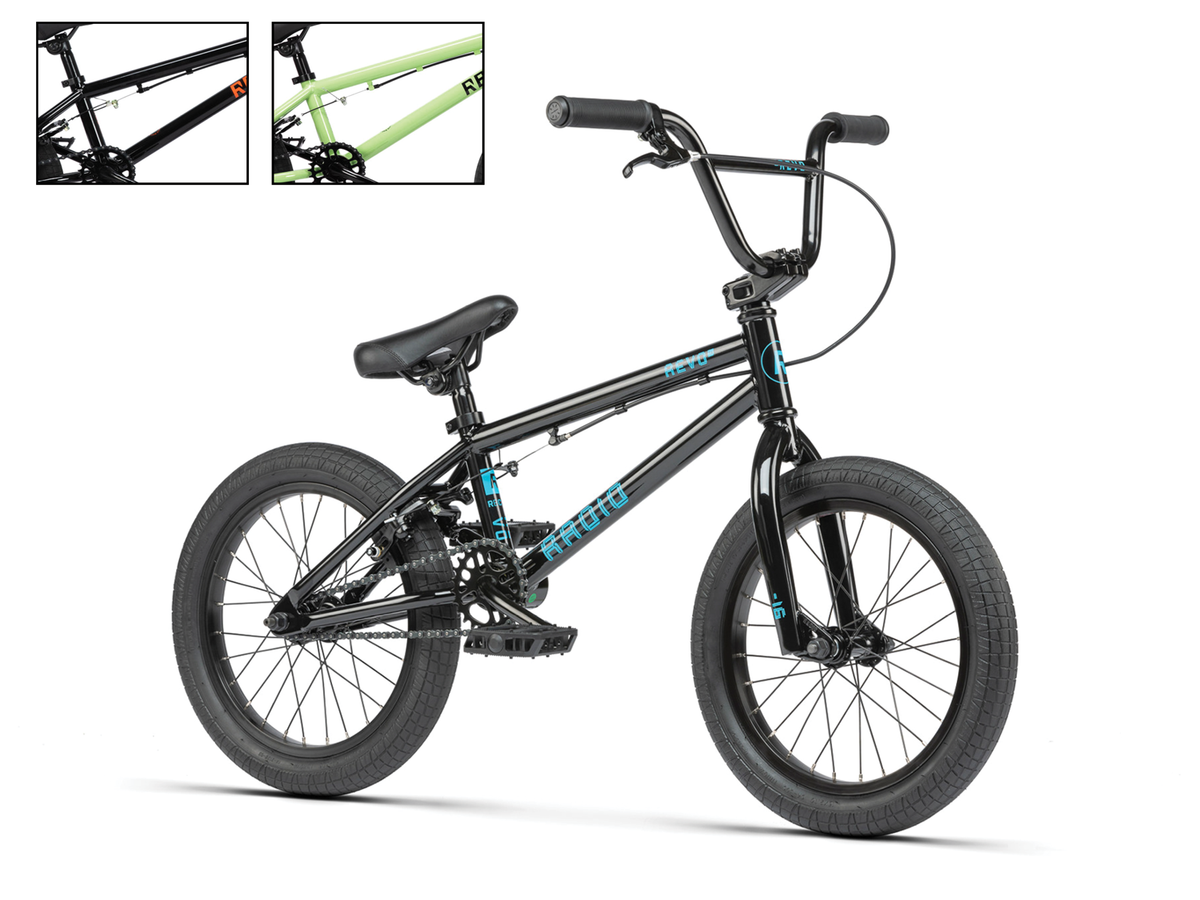

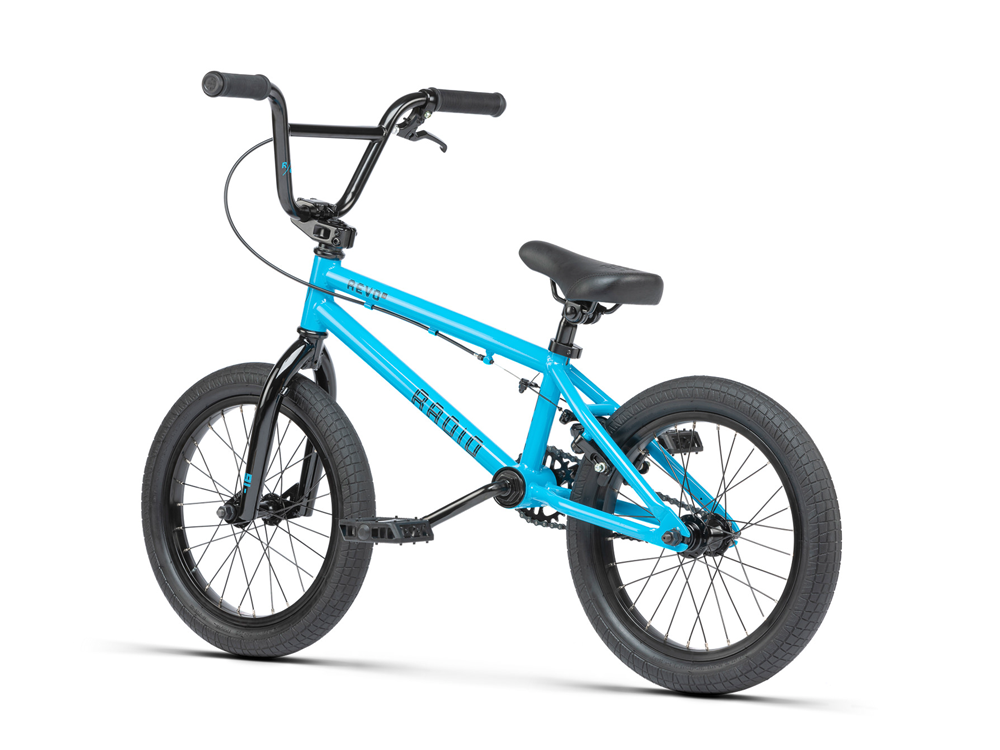

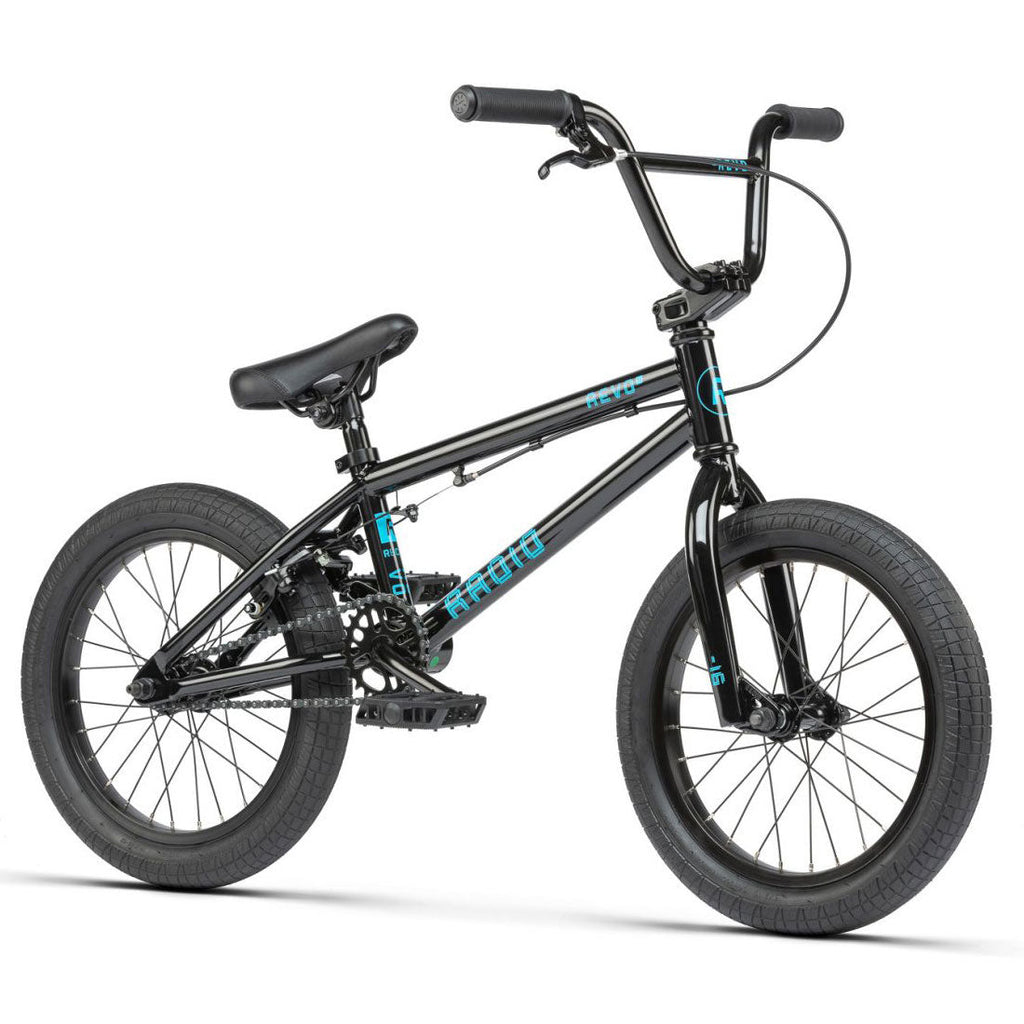

Radio Revo 16" BMX Bike

The Radio Revo is the perfect 16 inch bike for those entering into BMX! Great geometry for the track and park but with more affordable parts to get you started.

Specifications

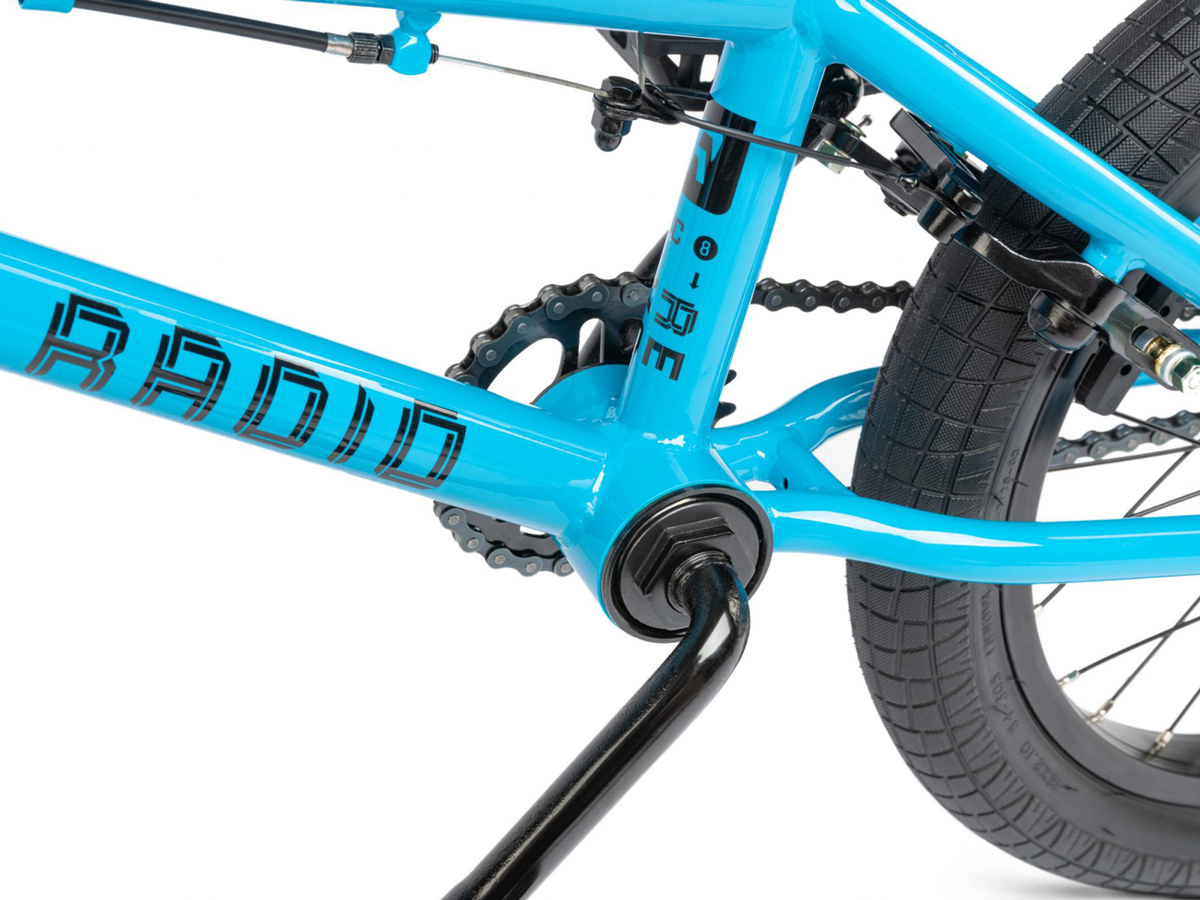

Frame - Radio 'Revo 16' frame, full 1020 hi-ten
Fork - Radio 'Rookie 16' fork, hi-ten
Handlebar - Radio 'Revo 16' bar, hi-ten
Grips - Radio 'Junior' grips, flangeless, 130mm
Stem - Salt 'Junior' topload stem, 40mm reach
Headset - FSA a-head-set loose ball
Brake lever - Radio 'Junior 16' brake lever, alloy
Brake - Radio 'AM' caliper brake, alloy, front / Radio 'AM-U' U-brake, alloy, rear
Crank - Radio 'Rookie' 1pc crank, forged, Cr-Mo, 127mm

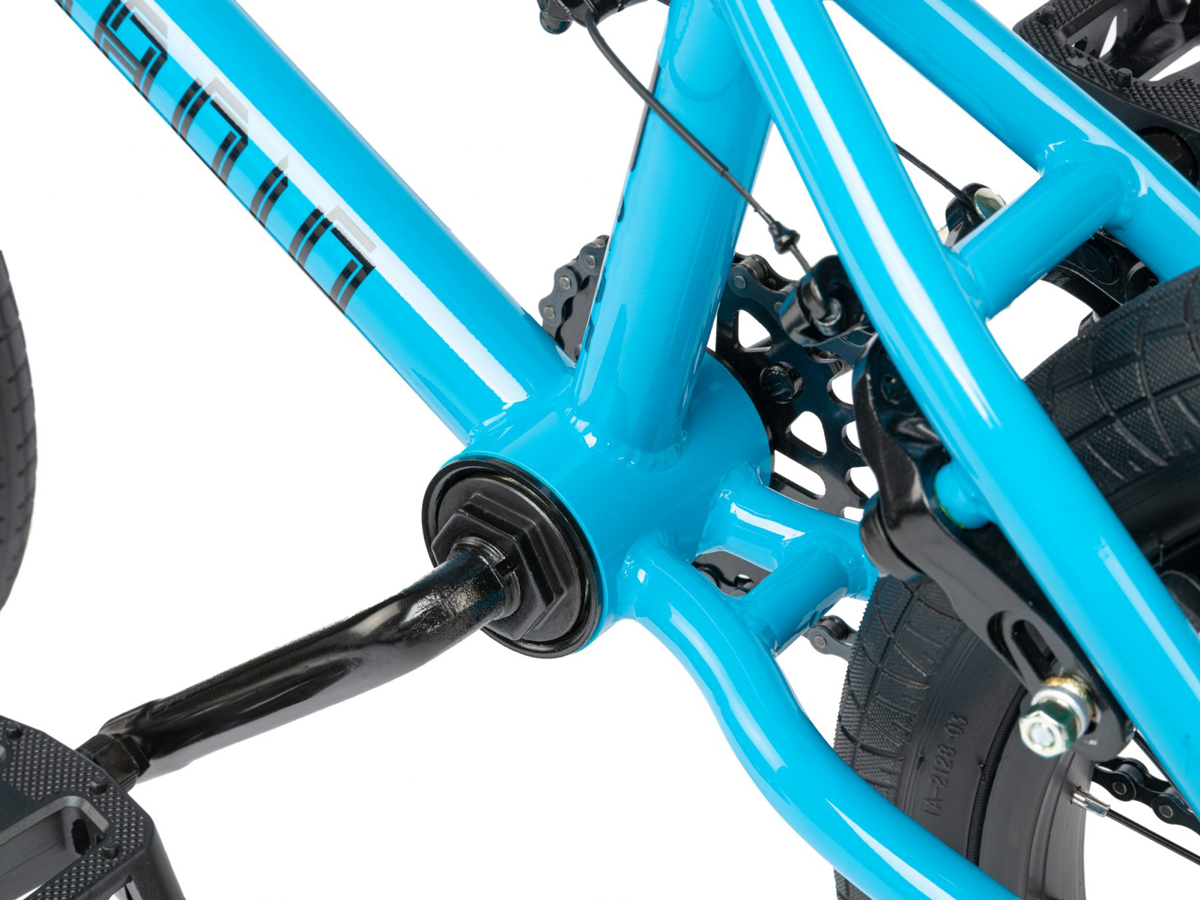

BB - USA size, looseball
Pedals - Radio 'Rookie' nylon pedals
Chain - KMC 'S1' chain
Sprocket - Radio 'Rookie' sprocket, steel, 25T
Driver - 9T, cassette

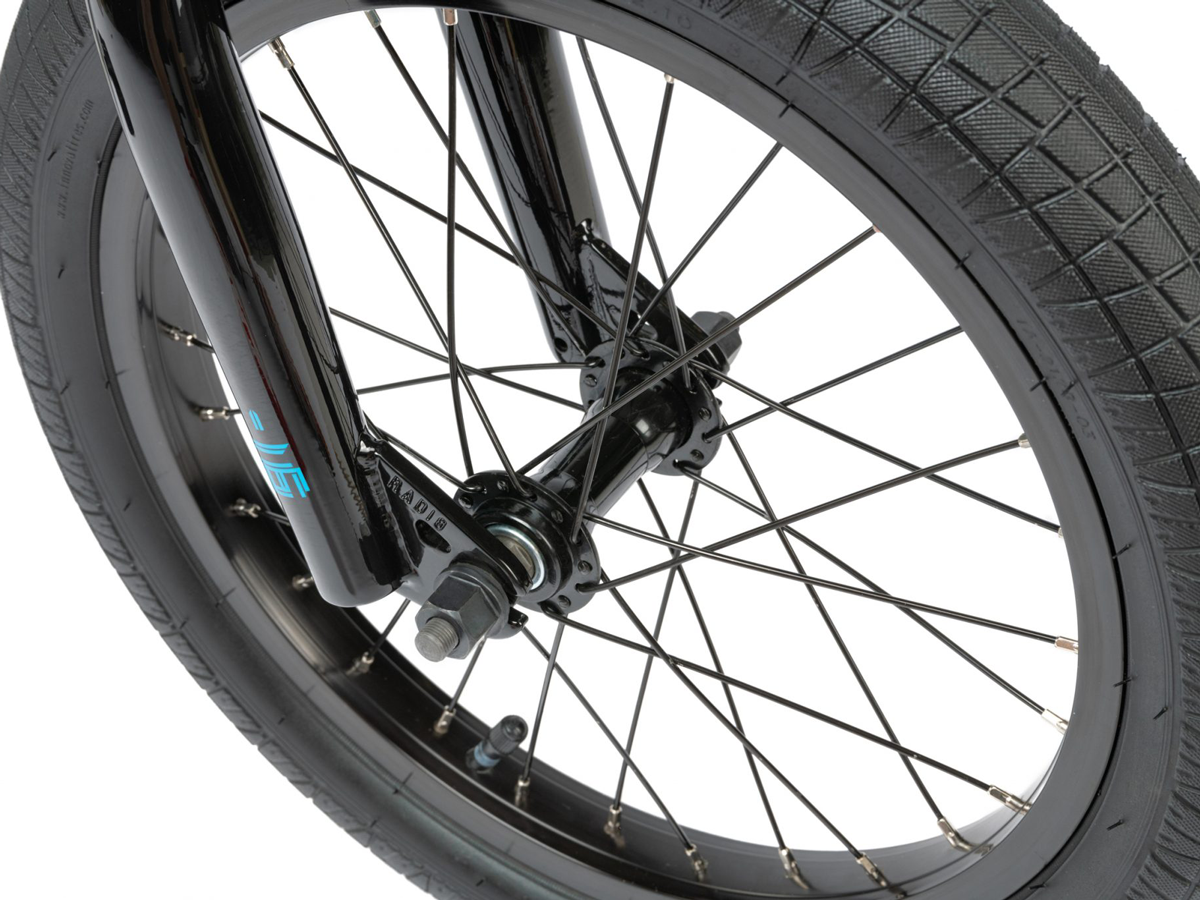

Front hub - Radio 'Rookie' steel hub, Lb, 28H
Rear hub - Radio 'Rookie' cassette hub, steel, Lb, 9T, 3/8″ axle, 28H
Front rim - Salt 'AM' rim, straight single wall, 28H
Rear rim - Salt 'AM' rim, straight single wall, 28H

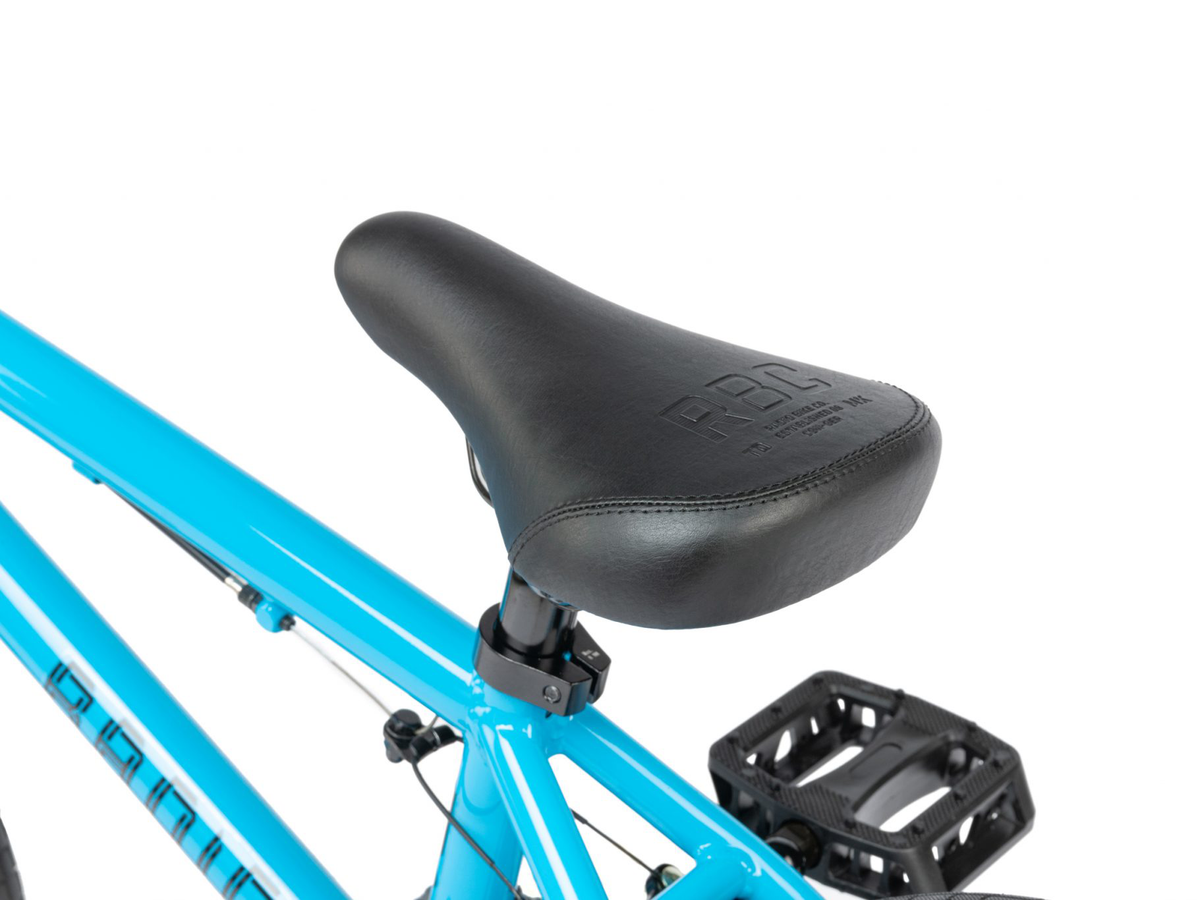

Seat - Radio 'Century' railed seat
Seat post – Radio 'AM' alloy seatpost
Seat clamp - Radio slim alloy seat clamp
Tyres - Radio 'Rookie' tyres, 16″x2.1″, front & rear
Weight - 9.95kg

Frame geometry
Top tube length - 16″
Chain stay length - 11.2″
Head tube angle - 75°
Seat tube angle - 71.5°
Bottom bracket height - 9.75″
Standover height - 6.6″

Handlebar geometry
Rise - 6.8″
Width - 23.6″
Backsweep - 10°
Upsweep - 3°
