Sunday 20" Street Sweeper (Jake Seeley) Bike

The Street Sweeper is designed with serious street riders in mind.

Built around Jake Seeley’s chromoly aftermarket signature frame, it uses a 75.25° head tube angle, a very short chainstay and a higher bottom bracket to match perfectly with Jake’s technical riding style. With its 4-piece bars, 160mm cranks, sealed hubs and Sunday Street Sweeper tyres, this is truly a pro-level bike. Follow @thejakeseeley.

Features
- Aftermarket Sunday Street Sweeper frame
- 100% chromoly forks and 4-piece bars
- Sunday Seeley signature grips
- Sunday seat, pivotal
- Odyssey Quadrant rims
- FSA conical headset
- Sunday Street Sweeper 2.4" tyres

Specifications
Frame - Sunday Street Sweeper, 20.75" top tube, 100% chromoly aftermarket frame, removable brake hardware
Fork - Sunday Pro, 20", 100% chromoly fork w/ 1-piece steerer tube and welded pre-load, 25mm offset
Handlebar - Sunday, 100% chromoly, 4-piece
Bar Pad - Sunday
Stem - Sunday Freeze top load, 48mm
Headset - FSA integrated conical, 1-1/8"
Alloy Cap - Sunday M16, aluminium
Brake Lever - Odyssey Springfield
Brakes - Odyssey Springfield U-brake
Brake Cable - Odyssey Quik Slic
Grips - Sunday Jake Seeley
Seat -

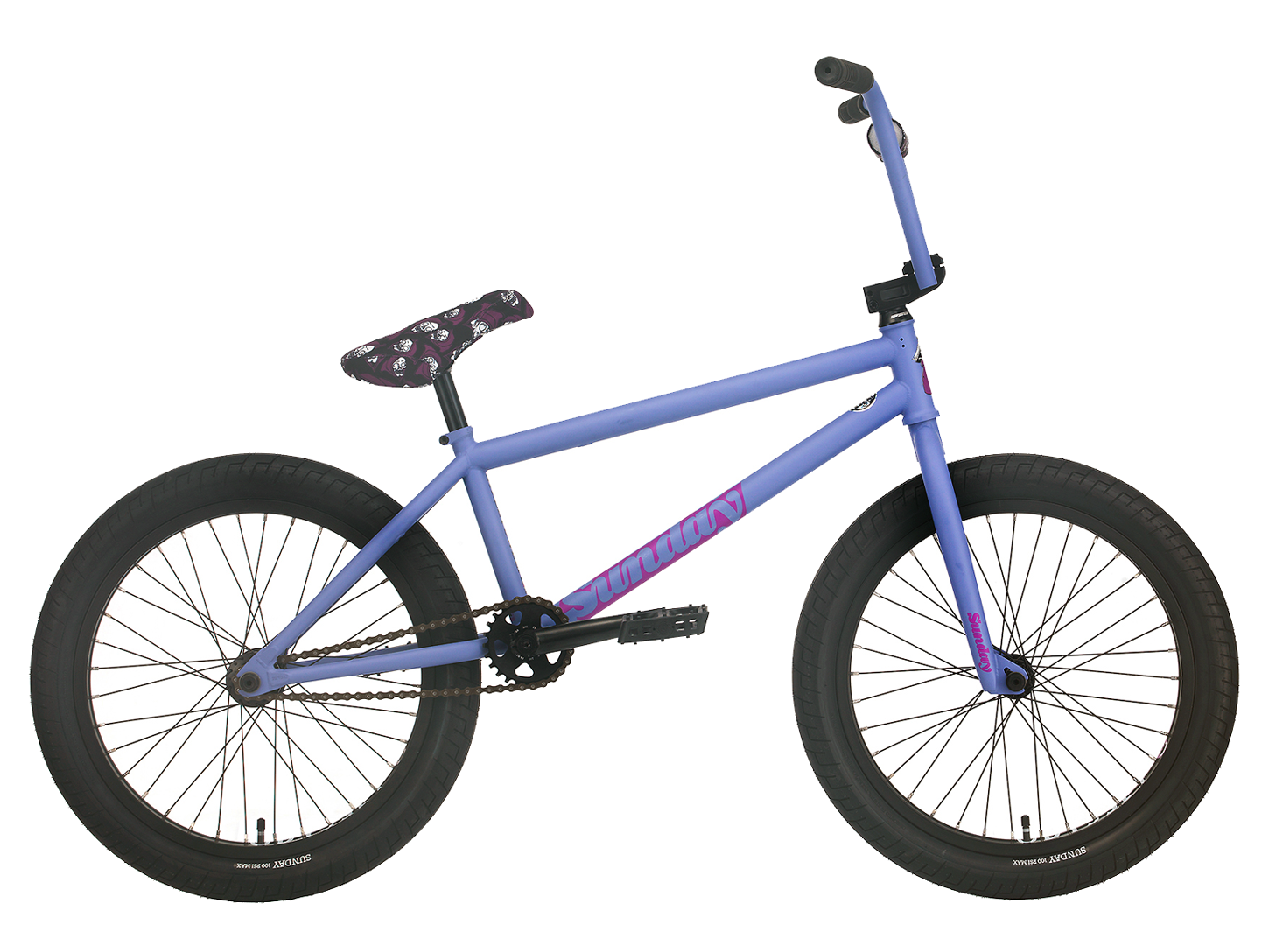

Matt Blue/Lavender - Sunday Seeley, pivotal

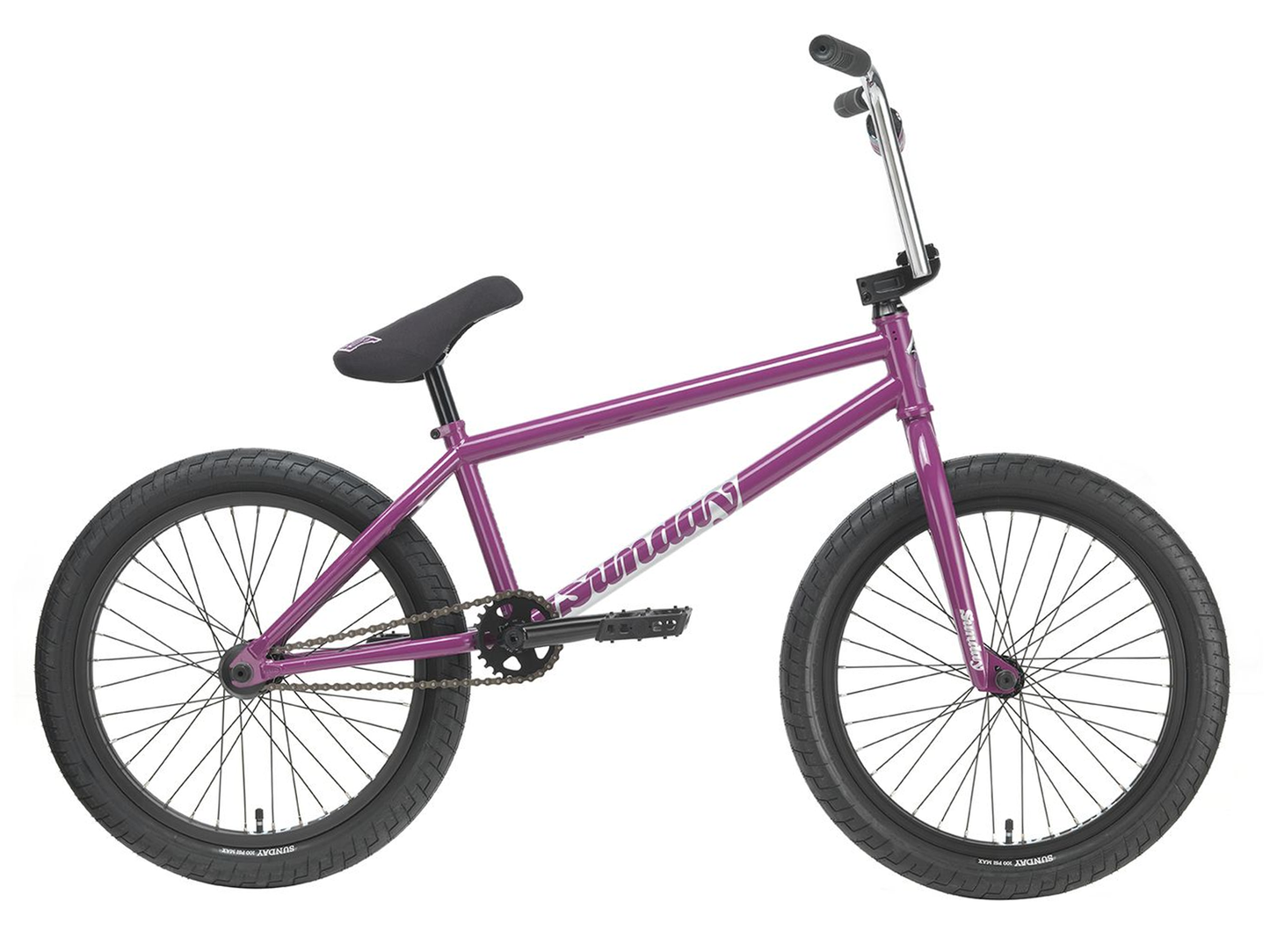

Gloss Berry - Sunday Blockhead, Pivotal
Seat post - Sunday pivotal
Seat Clamp - Integrated
Sprocket - Sunday Sabretooth v2, 25T, 6061 aluminum
Cranks - 160mm, 3-piece, chromoly
BB Parts - Sealed, mid, 19mm
Pedals - Odyssey Twisted PC Pro
Rims - Odyssey Quadrant, 20", 36H
Front Hub - Sunday, 36H, low-flange, sealed , 3/8" female axle
Rear Hub -
Matt Blue/Lavender - Odyssey Clutch v2 freecoaster, 36H, 14mm female axle w/ 9T driver, RHD, non-drive PC guard
Gloss Berry - Odyssey Clutch PRO freecoaster, 36H, 14mm inbound axle bolts w/ 9T driver, RHD, plastic guards
Spokes - 14g steel, black
Tyres - Sunday Street Sweeper v2, 20 x 2.4" (F & R)
Chain - KMC Z1 wide
Approx. Weight - 11.33 kg (brakeless)

Frame Geometry
Top Tube Length - 20.75"
Head Tube Angle - 75.25°
Seat Tube Angle - 71°
Chainstay Length - 12.7"-13”
Bottom Bracket Height - 11.7"
Headtube Length - 4.7"
Standover - 8.85”

Handlebar Geometry
Rise - 9"
Width - 29"
Backsweep - 12°
Upsweep - 3°
