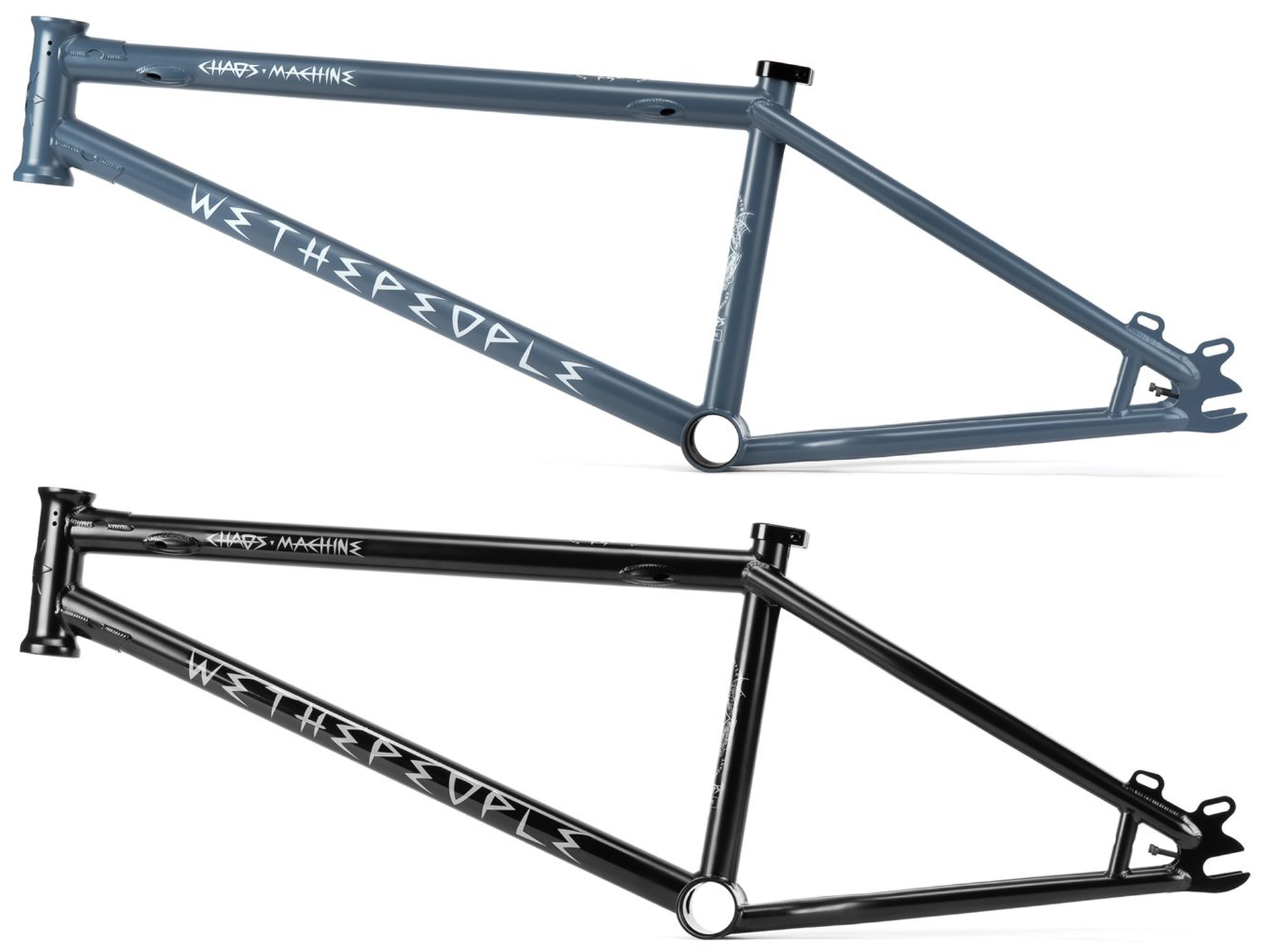

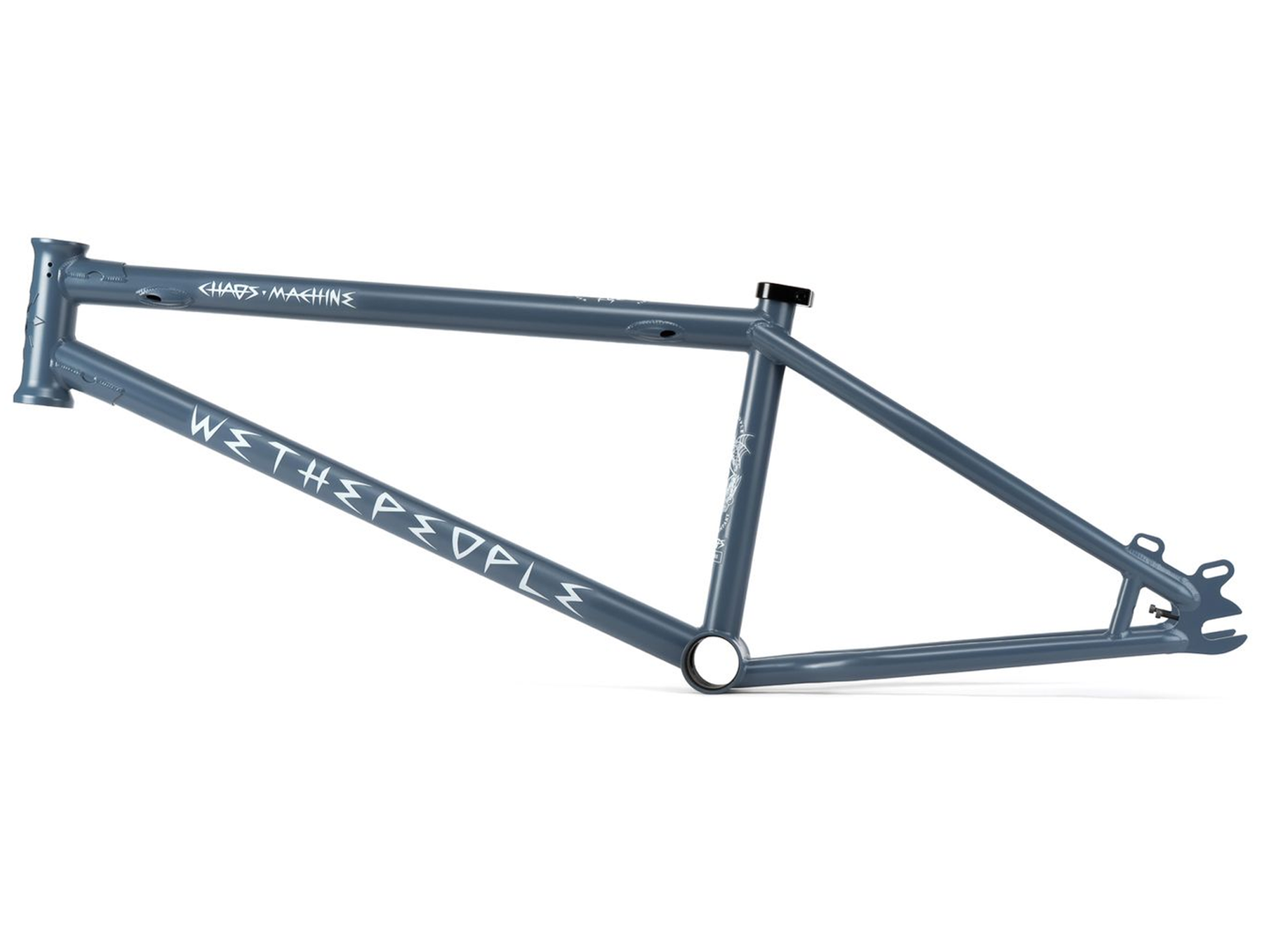

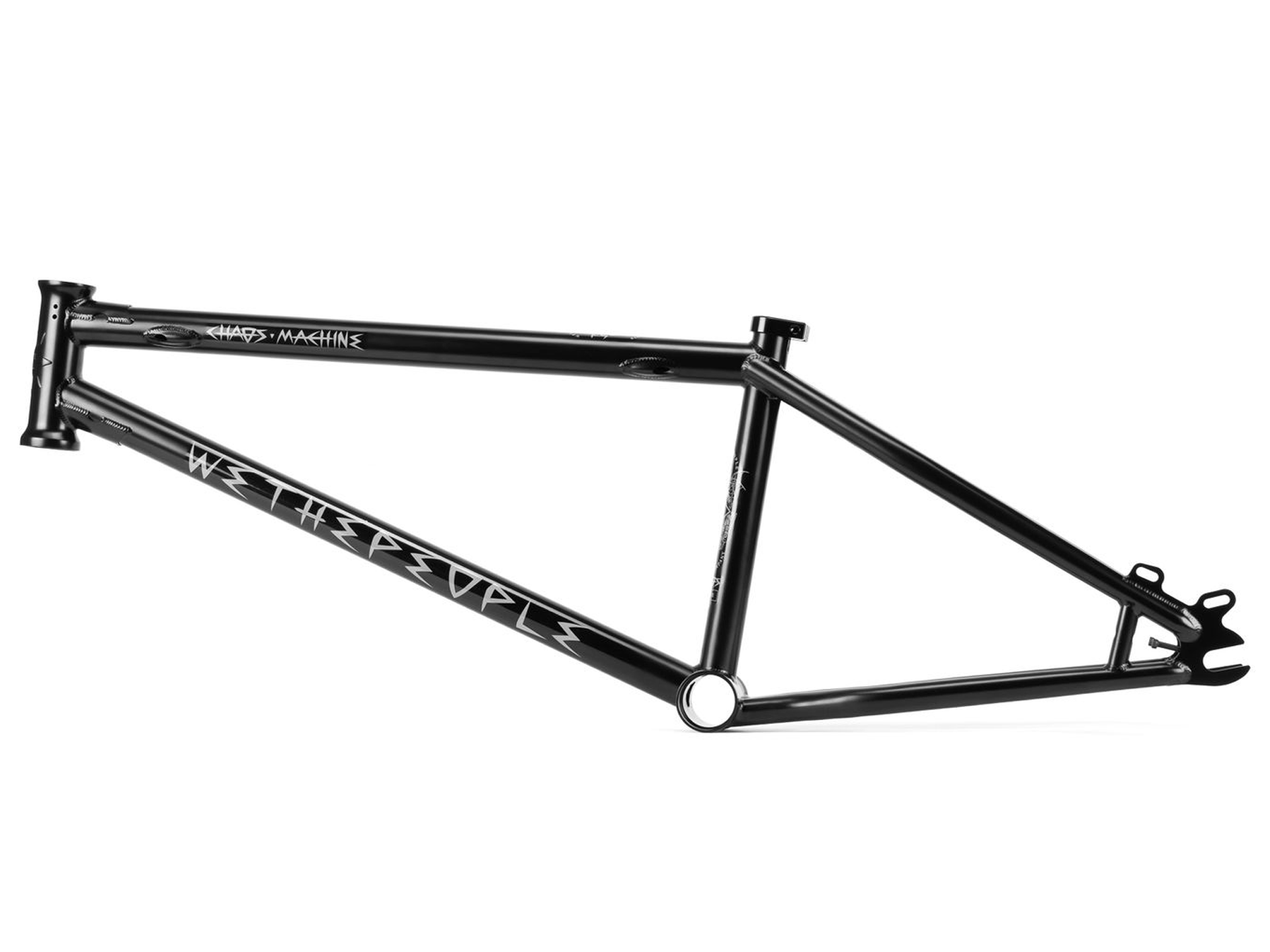

WETHEPEOPLE Chaos Machine 20 V2 (Jones-Peni) Frame

WTP worked with Aussie trail boss and BMX lifer Tyson Jones-Peni on an all-out trail and bowl roasting machine. The Chaos Machine Frame features long and stable geometry, combined with Wethepeople’s legendary frame building technology, making it one of the meanest and toughest rigs in the game. Tyson isn’t scared to go fast and hit the mainline with some serious speed. Disc brake compatible, super long 14"+ chainstay and to the unique detailing on the seat stay bridge and head tube, the Chaos Machine frame is one of the most “signature” frames WTP have ever made.

Features
- NEW disc-only version
- NEW Internal cable routing through the top tube
- Tyson Jones-Peni signature trail/transition frame
- Long and stable trail geometry
- IS disc mount for 140mm-160mm rotors - PM mounts found HERE
- unique disc brake mount works in multiple chain stay positions
- 127mm tall head tube for less spacers with an uncut fork
- larger radius stay tubing for a stiffer and stronger back end
- CNC-machined seat stay bridge
- disc brace on stays for extra braking stiffness
- larger 1.8mm welding at the head tube
- wider rear triangle allows clearance for a 2.4" tyre
- WTP top tube and down tube gusset
- includes lifetime guarantee

Specifications
Tubing - Butted, Japanese seamless 4130 crmo tubing
Bottom bracket - 74mm mid-size
Head tube - 127mm CNC-machined and heat-treated, integrated. h/set, badge
Dropouts - Minimal size, not suitable for pegs, 6mm CNC-machined heat-treated crmo, integrated chain tensioners
Brakes - Disc mount for 140-160mm rotors
Weight - 2.40kg – 21.35" tt

Frame Geometry
Top tube length - 21", 21.35", 21.7"
Chain stay length - 14" - 14.75" / optimised for 14.1"/14.35"/14.7" with 30-9 gearing
Head tube angle - 74.25°
Seat tube angle - 71°
BB height - 11.5"
Standover height - 9.5"
