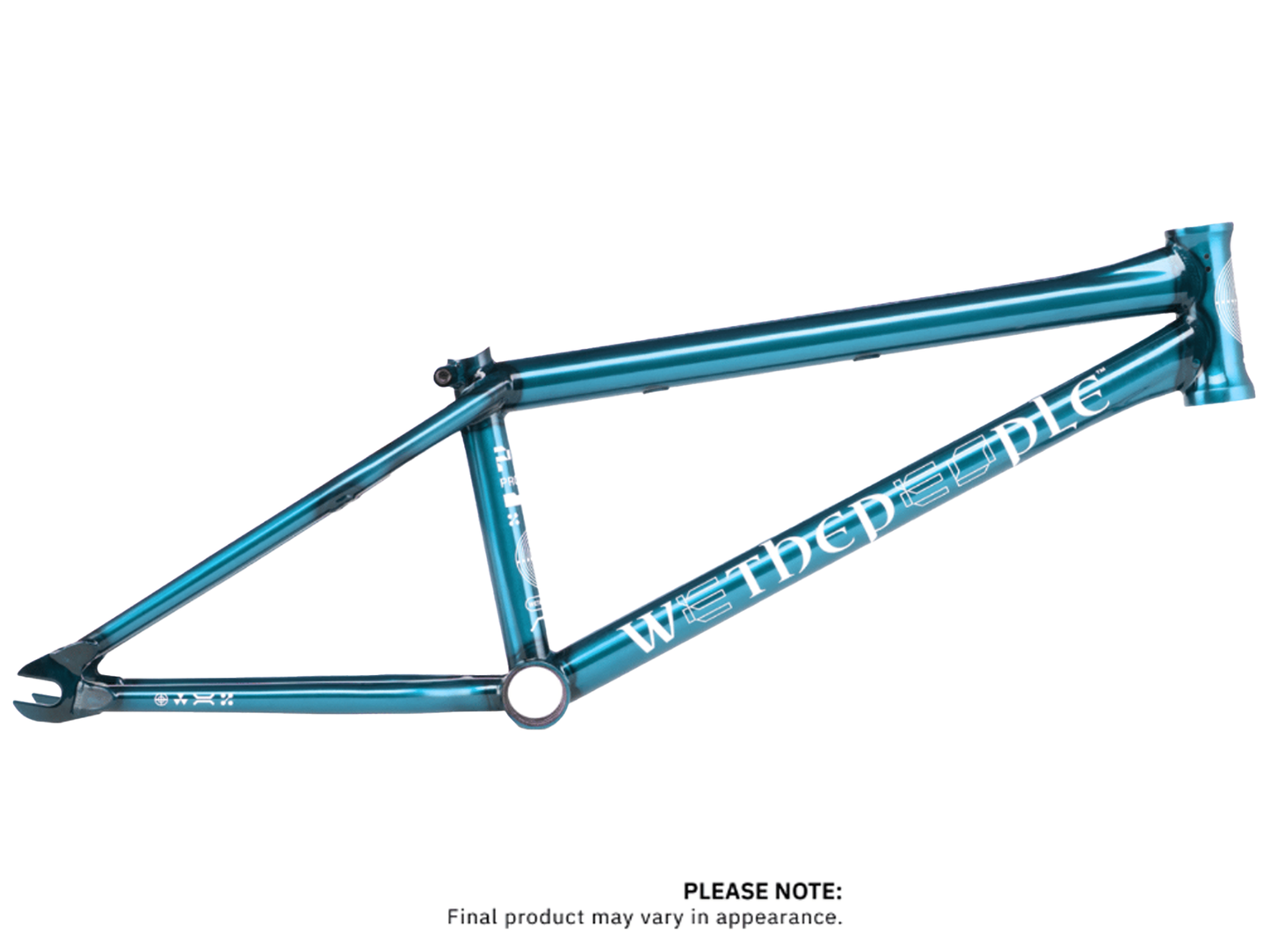

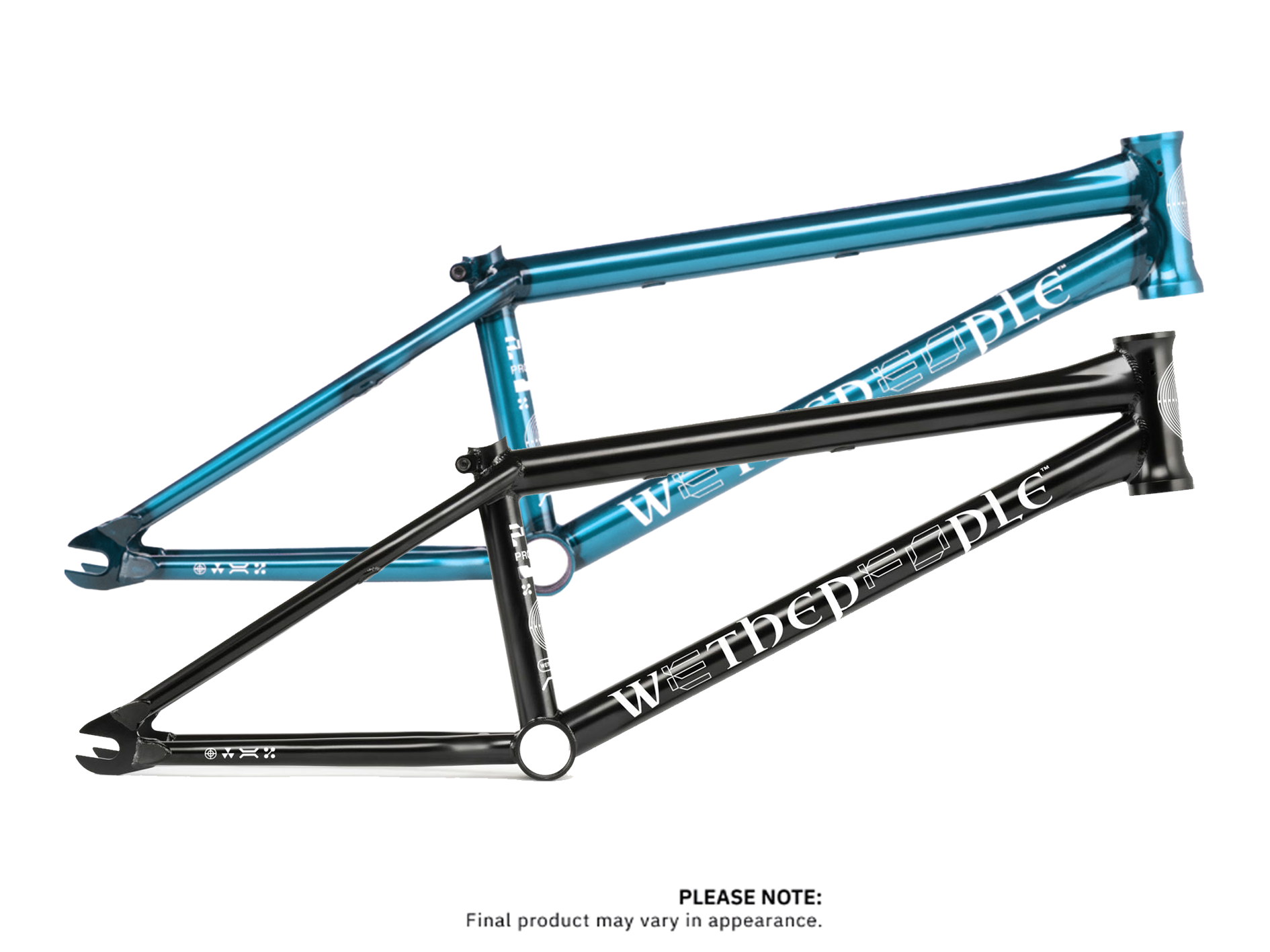

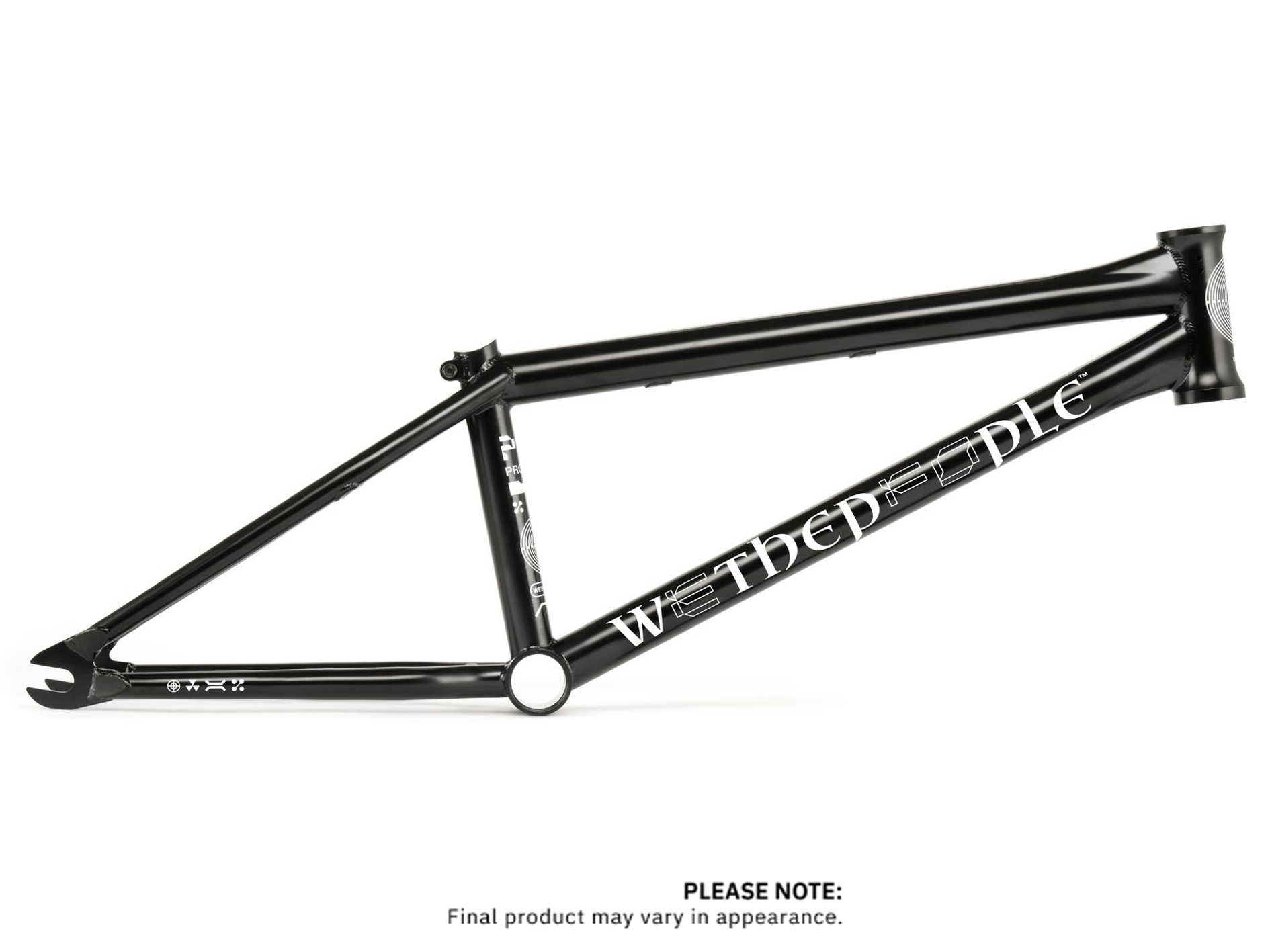

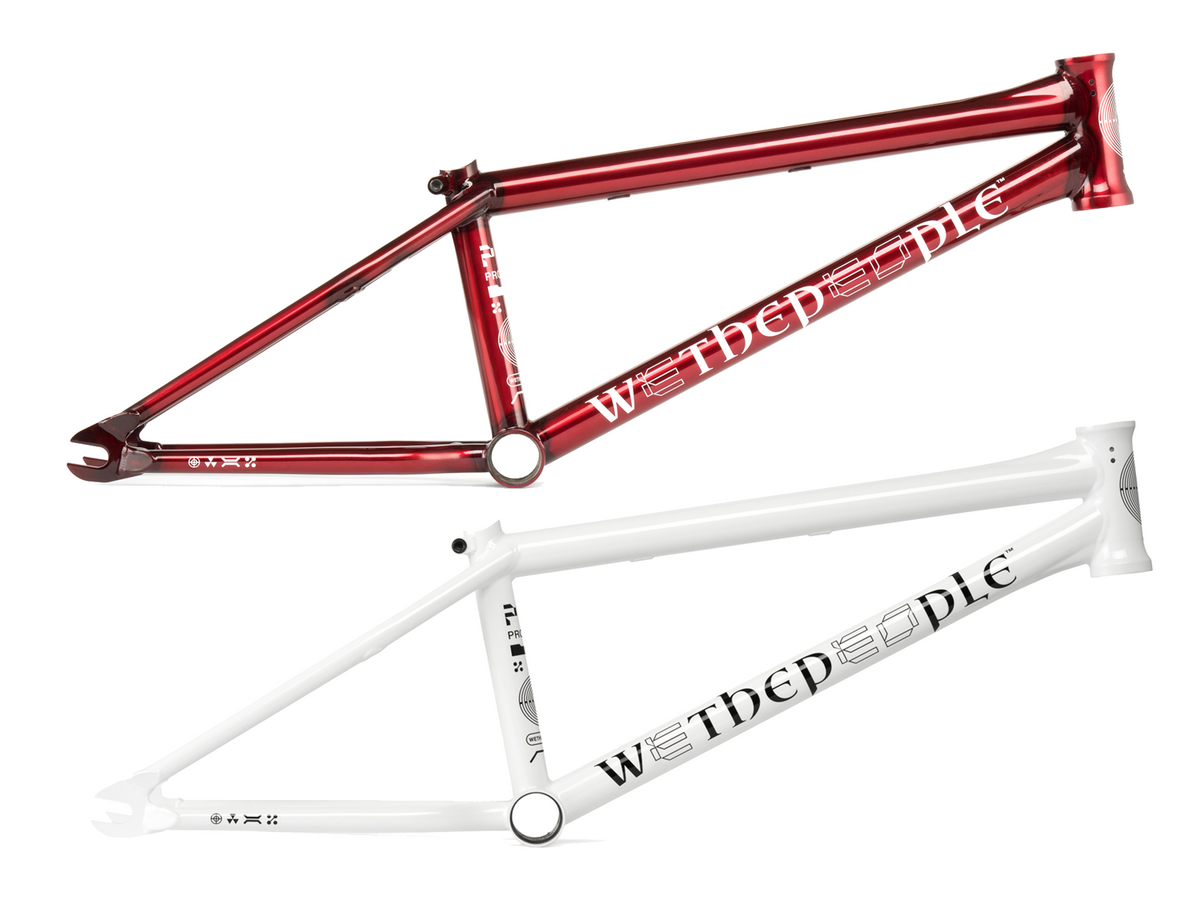

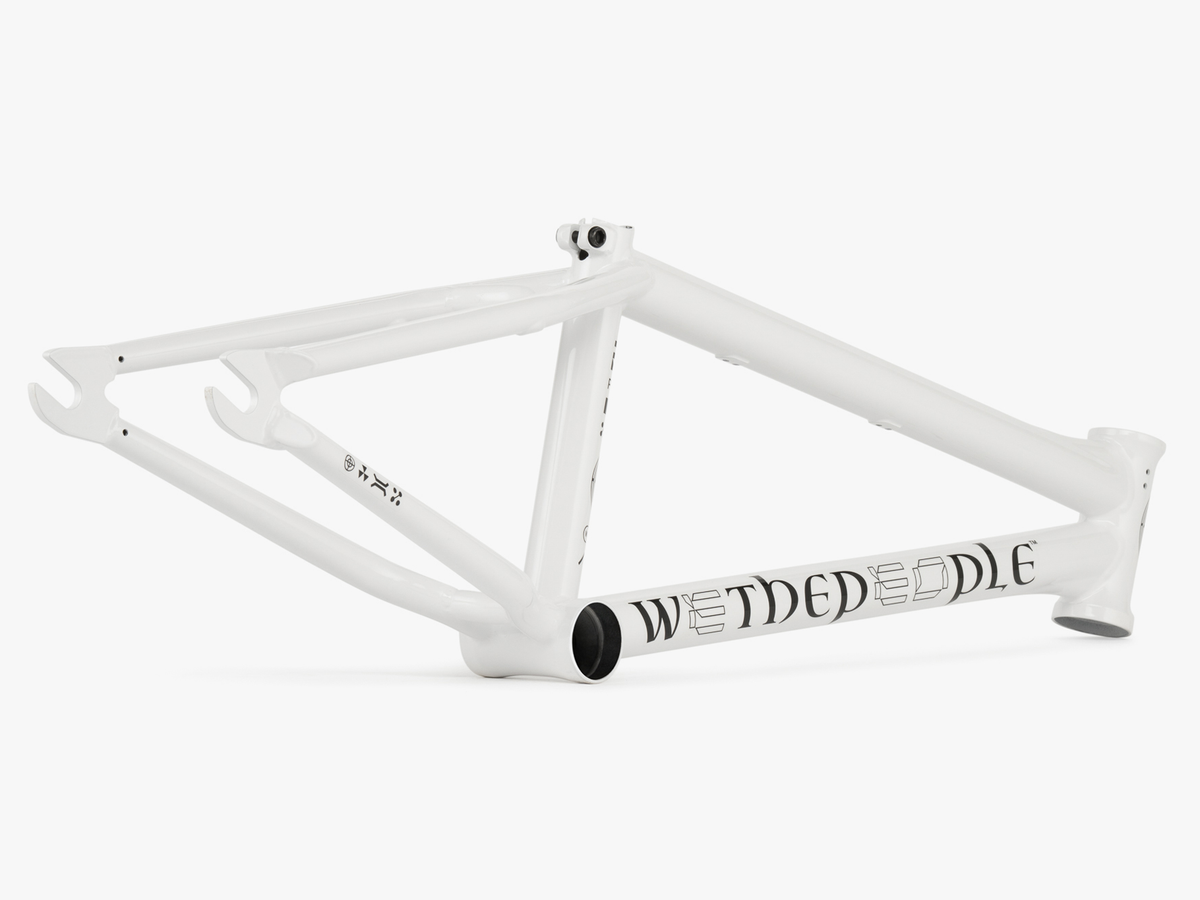

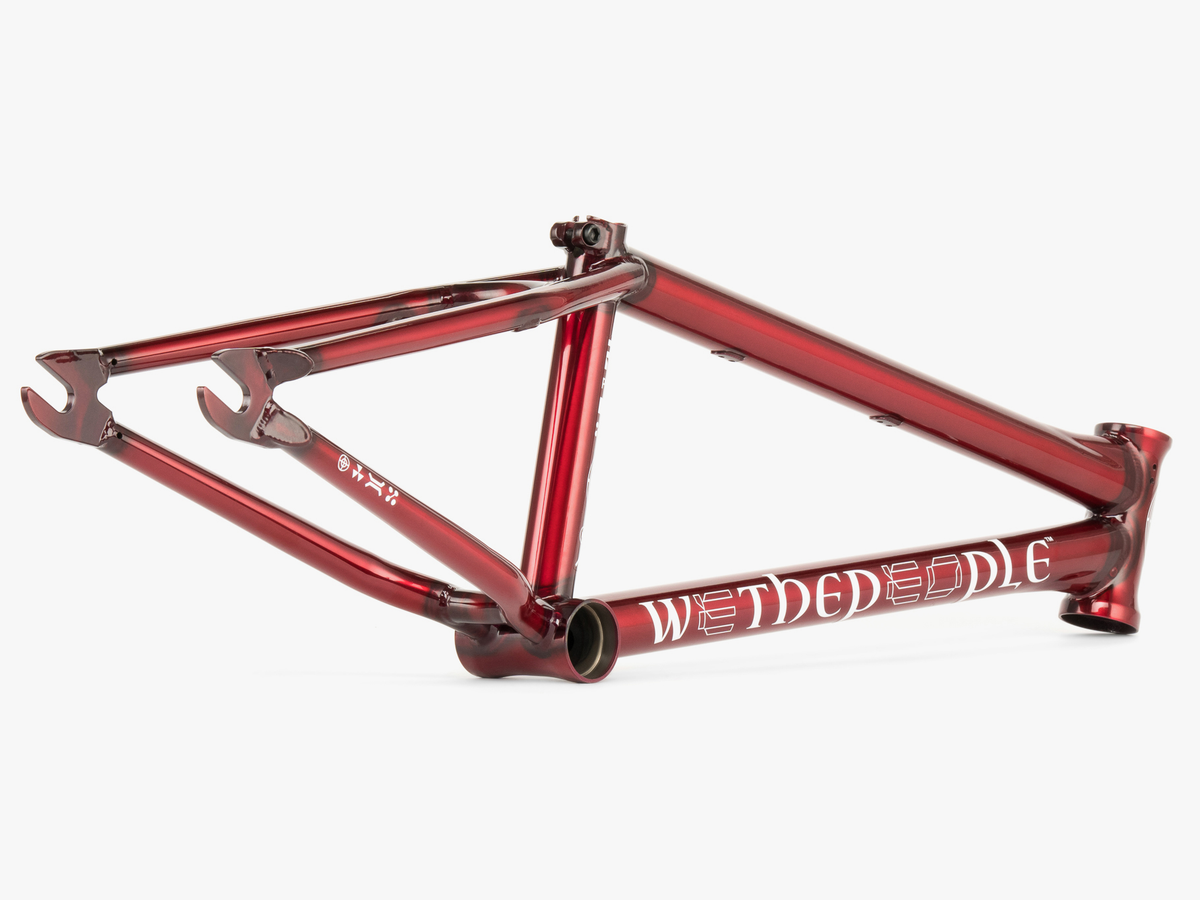

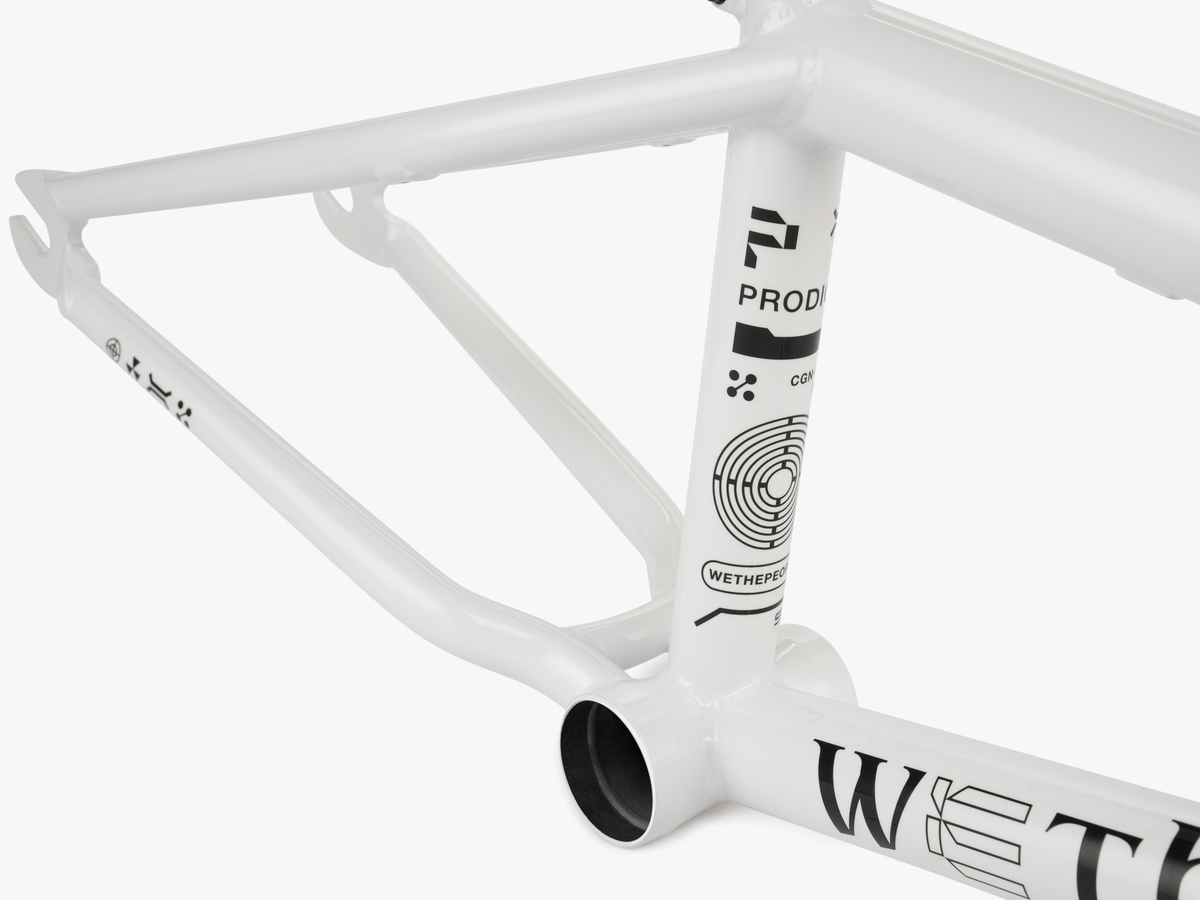

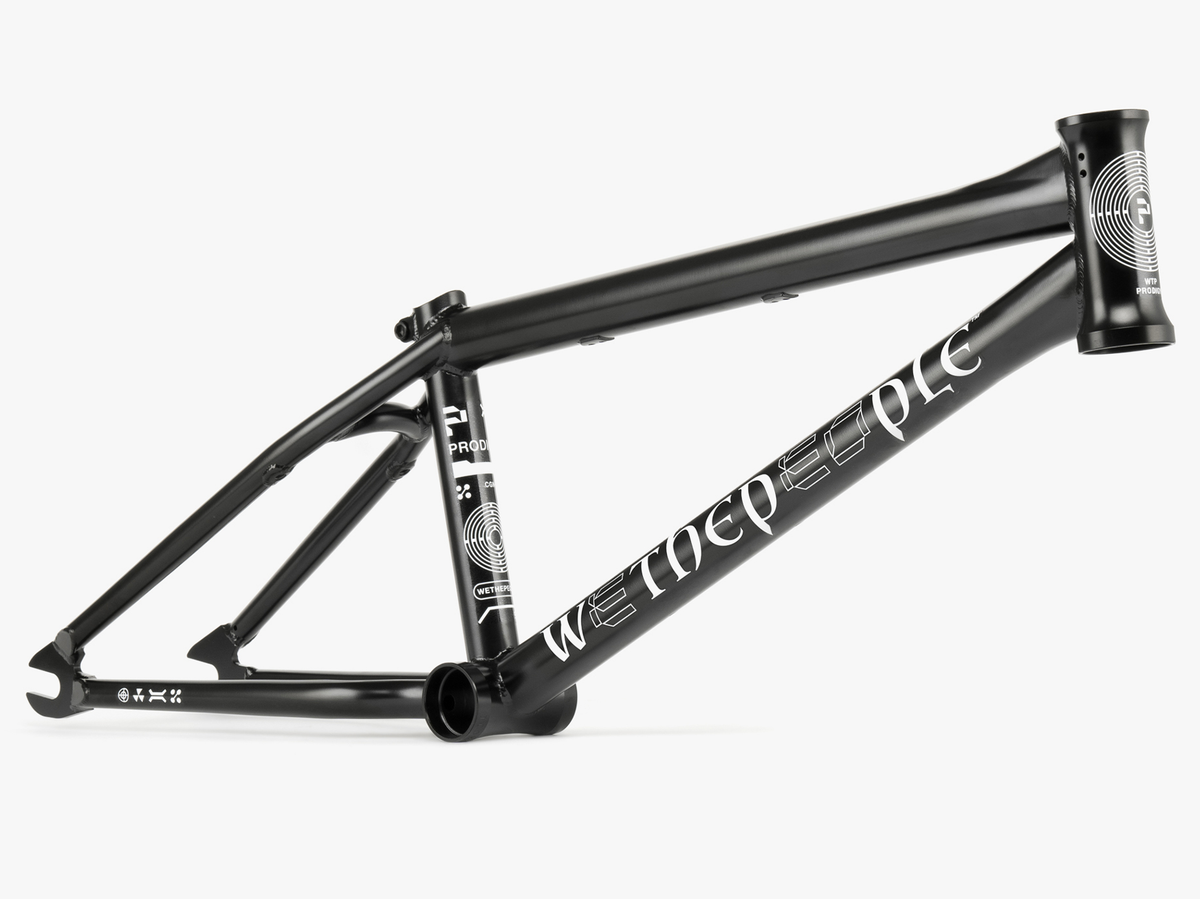

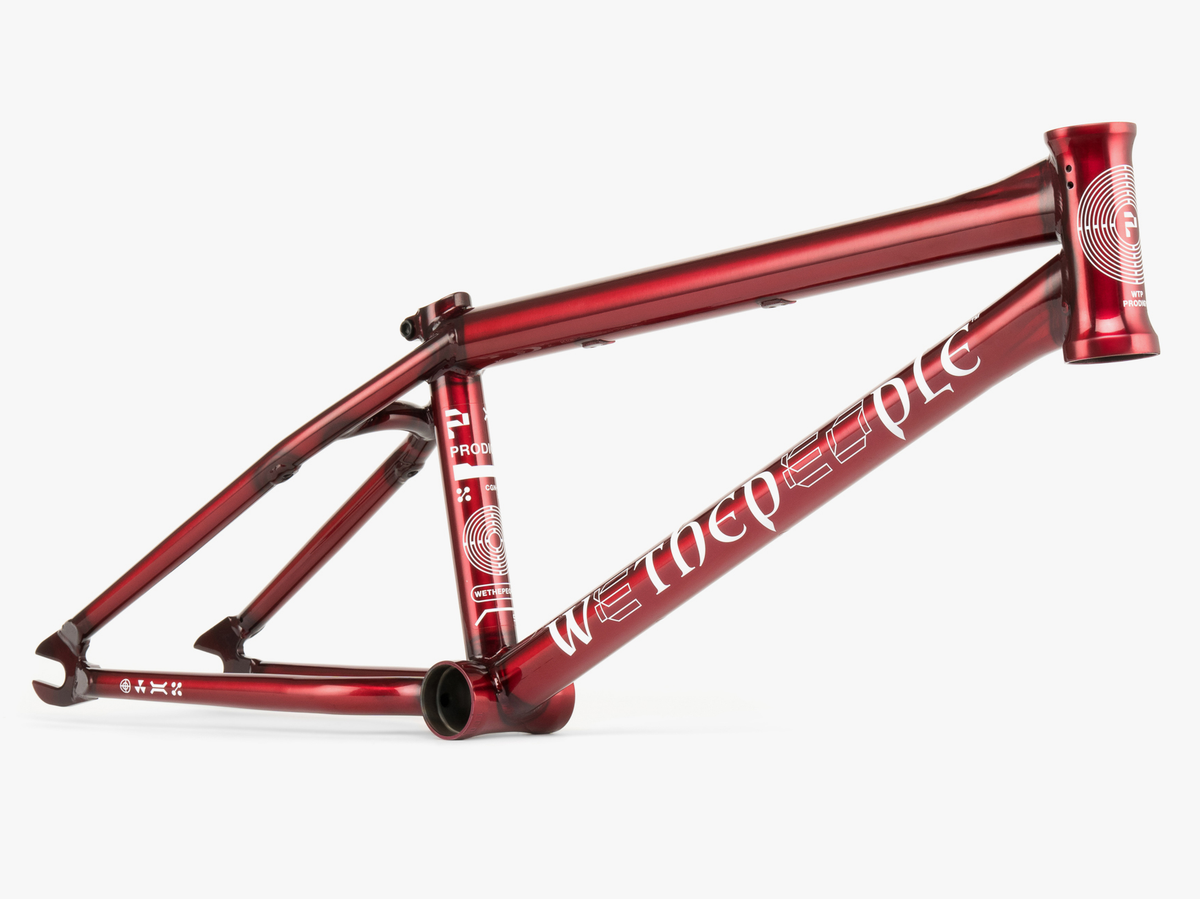

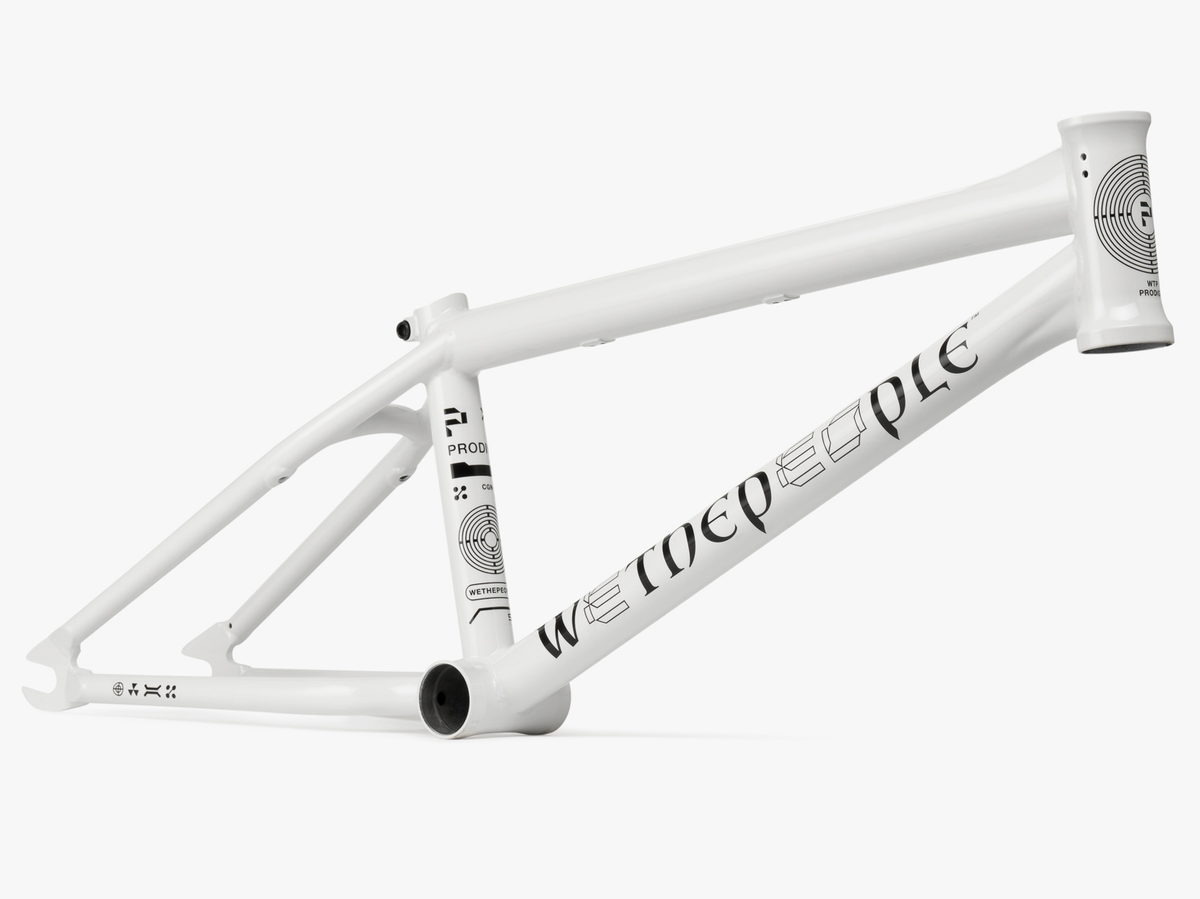

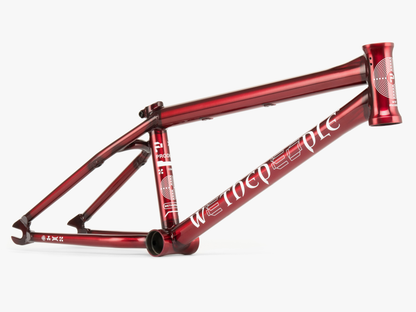

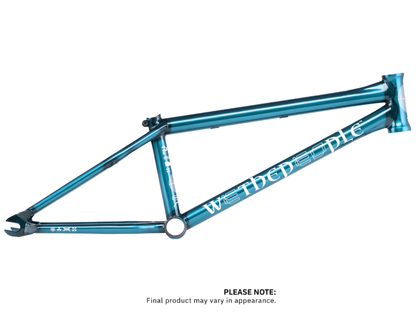

WETHEPEOPLE Prodigy 16" Frame

Features
-16" specific aftermarket frame
-Hydroformed top and down tube for superior strength and stiffness
-Super-lightweight tubing for younger riders
-Curved seat stay bridge and chain stay bridge
-110mm tall head tube for use with a gyro

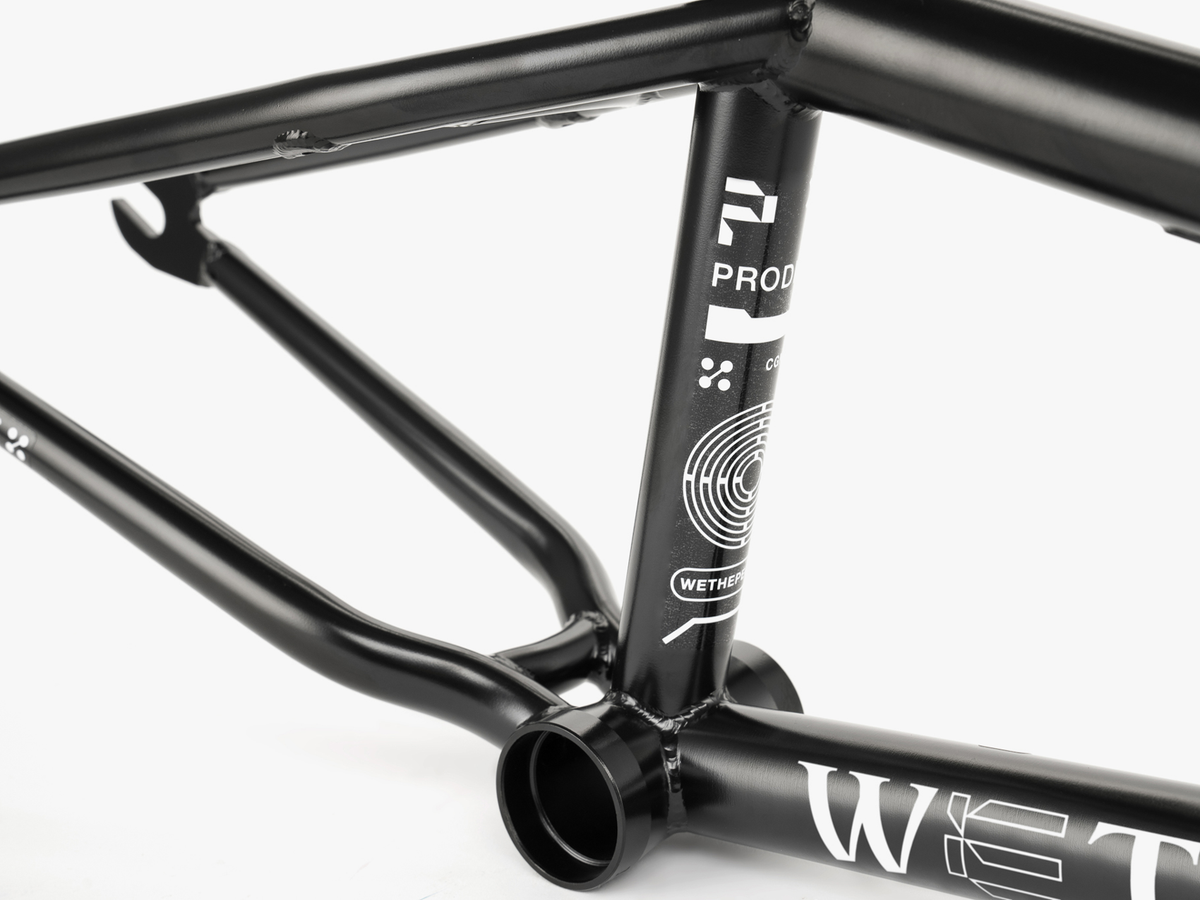

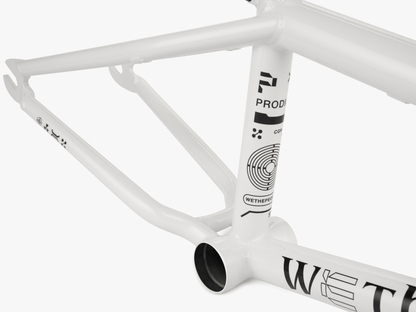

-Spanish bottom bracket for weight reduction
-Larger 1.8mm welding at head tube
-Frame comes with 14mm slot dropouts
-6mm seat clamp bolt
-Ovalized chain stays for increased tire & sprocket clearance
-Wider rear triangle allows clearance for a 2.4" tyre
-Includes lifetime guarantee

Specifications
Tubing - butted, Japanese seamless 4130 crmo tubing
Bottom bracket - 74mm Spanish size, CNC machined and heat-treated

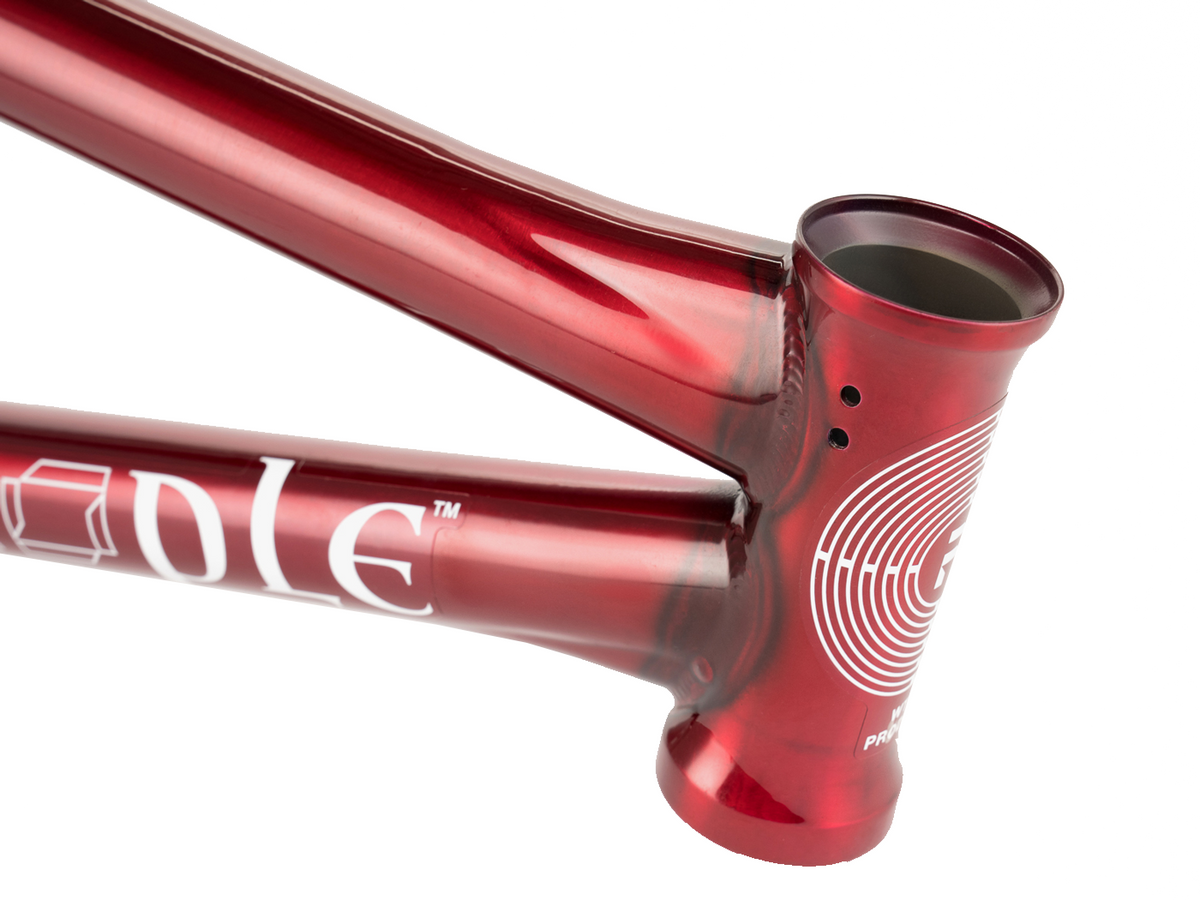

Head tube - 110mm CNC-machined and heat-treated, integ. H/set, hole for gyro tabs
Dropouts - laser cut and CNC machined 5mm, heat-treated 4130 crmo
Brakes - pivot-3 compatible, not included.

Geometry
Top tube length - 16.5"
Chain stay length - 10.9" - 11.5" / optimised for 11.2" w/25-9 gearing
Head tube angle - 75.5°
Seat tube angle - 71.5°
Bb height - 9.8"
Standover height - 7.1"
