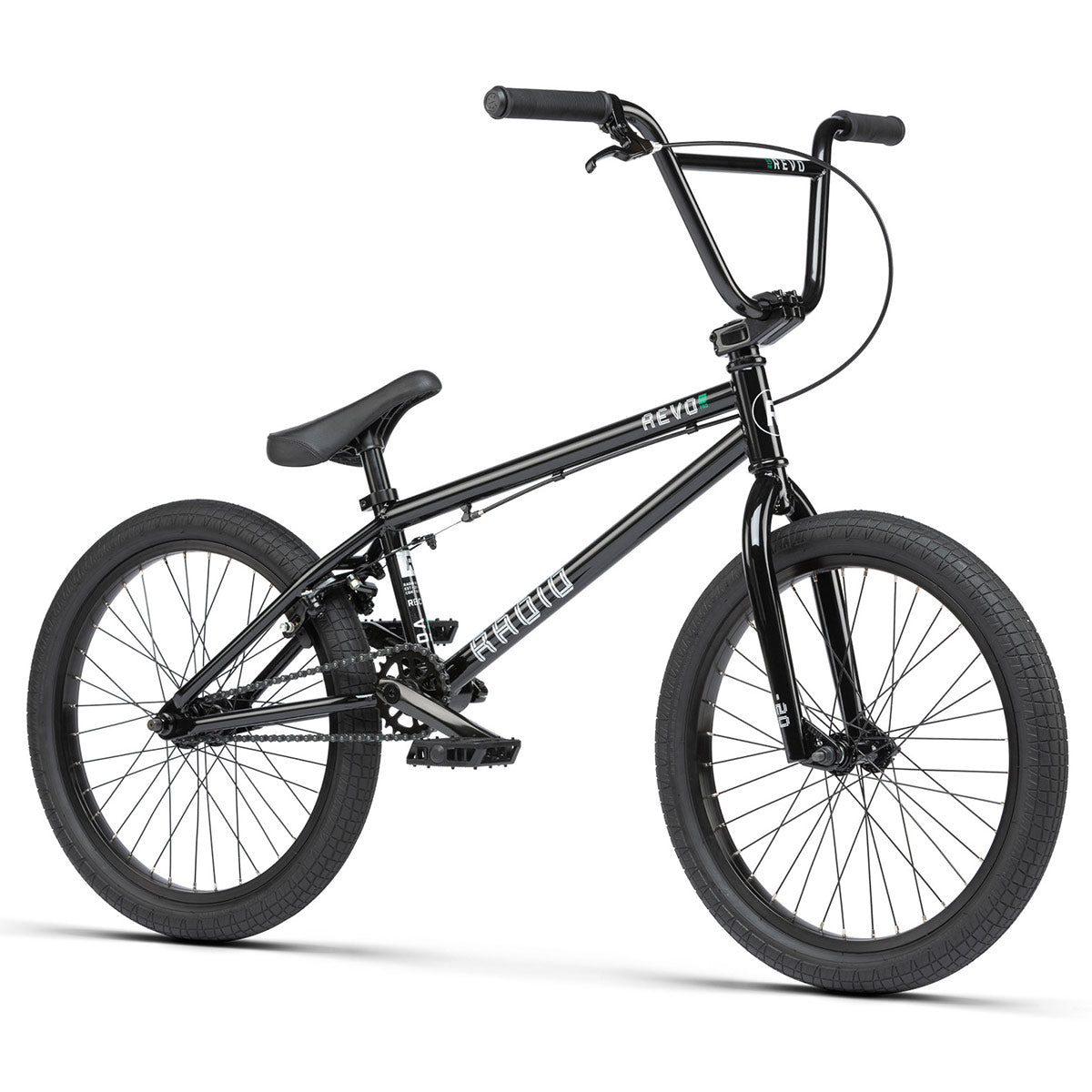

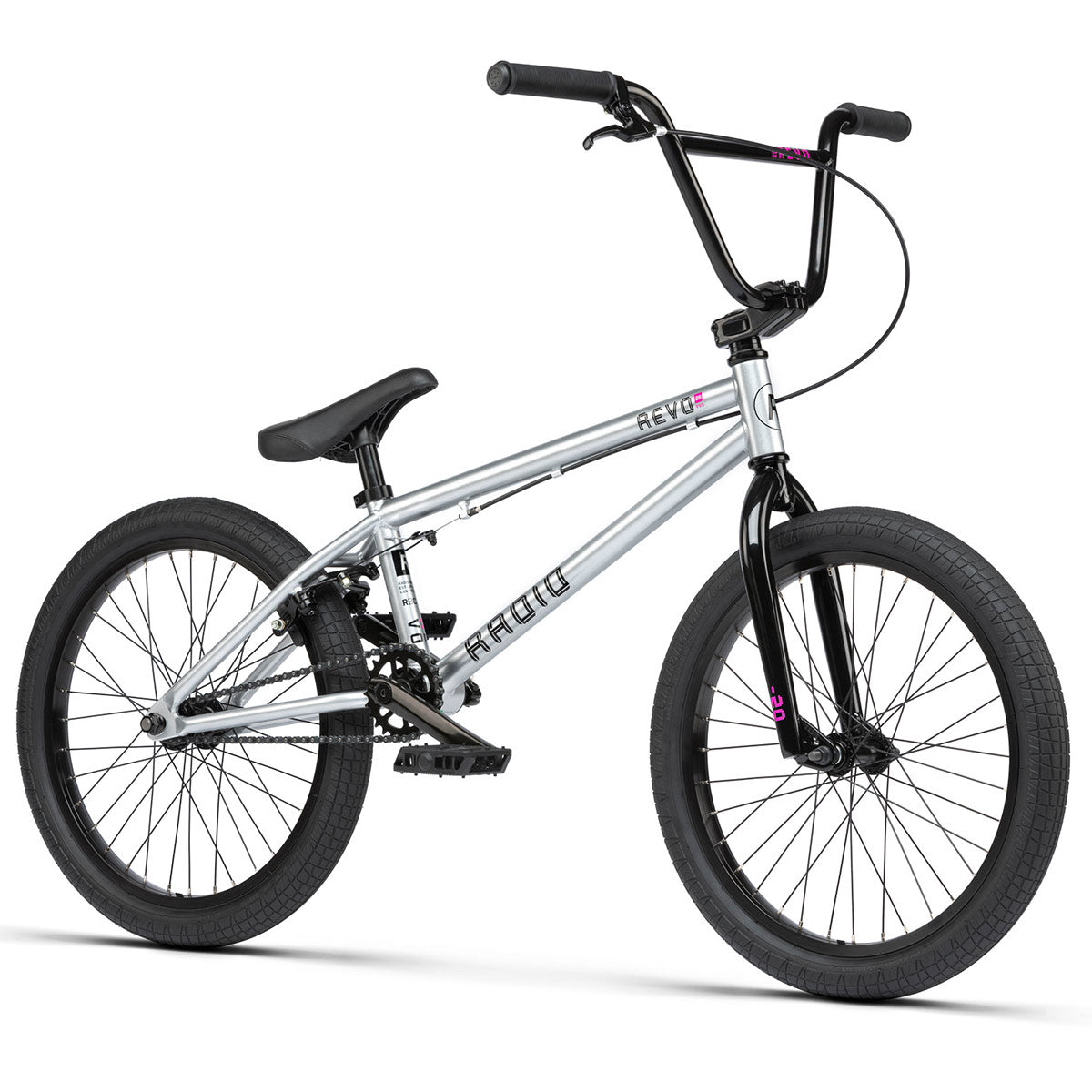

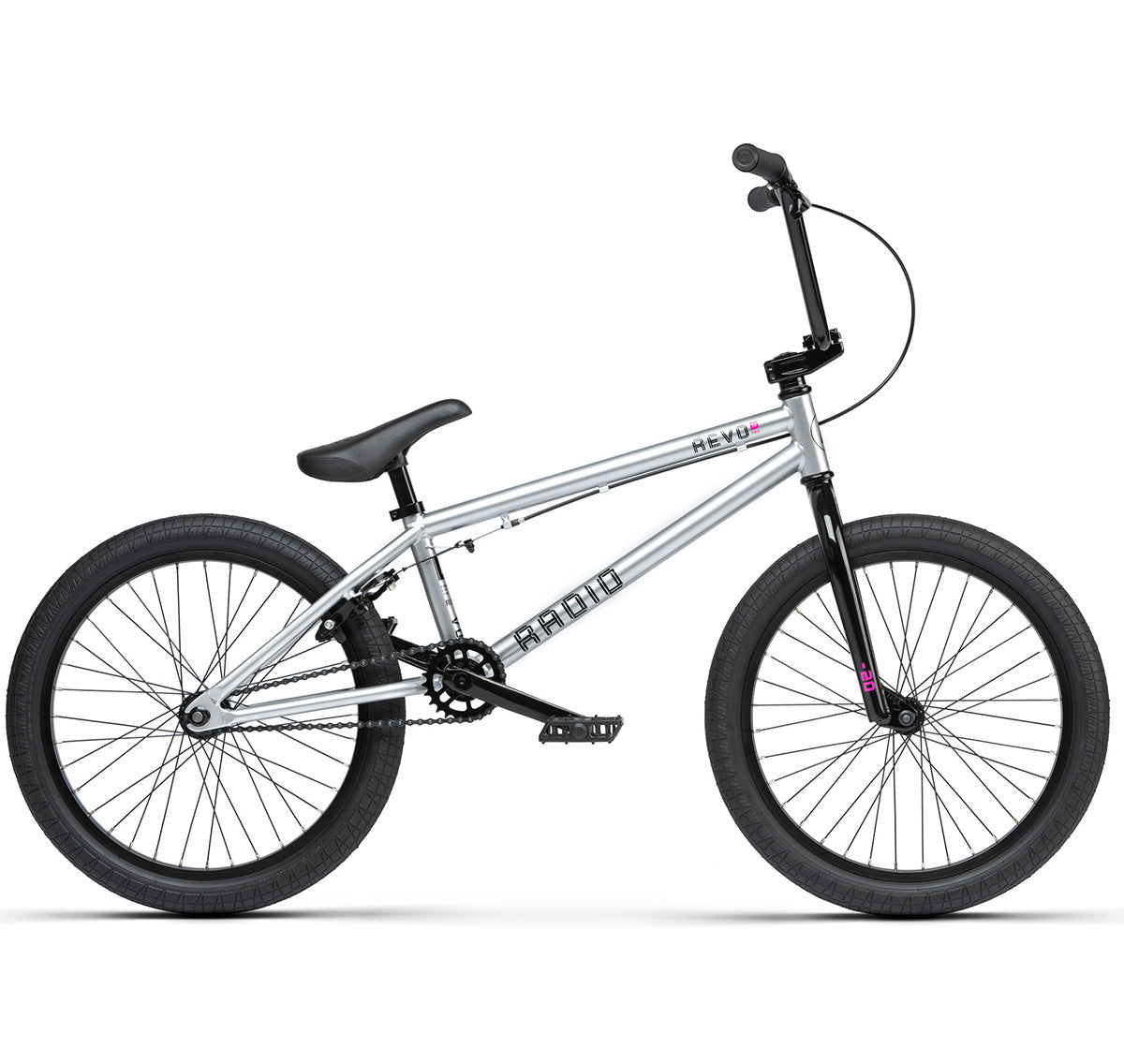

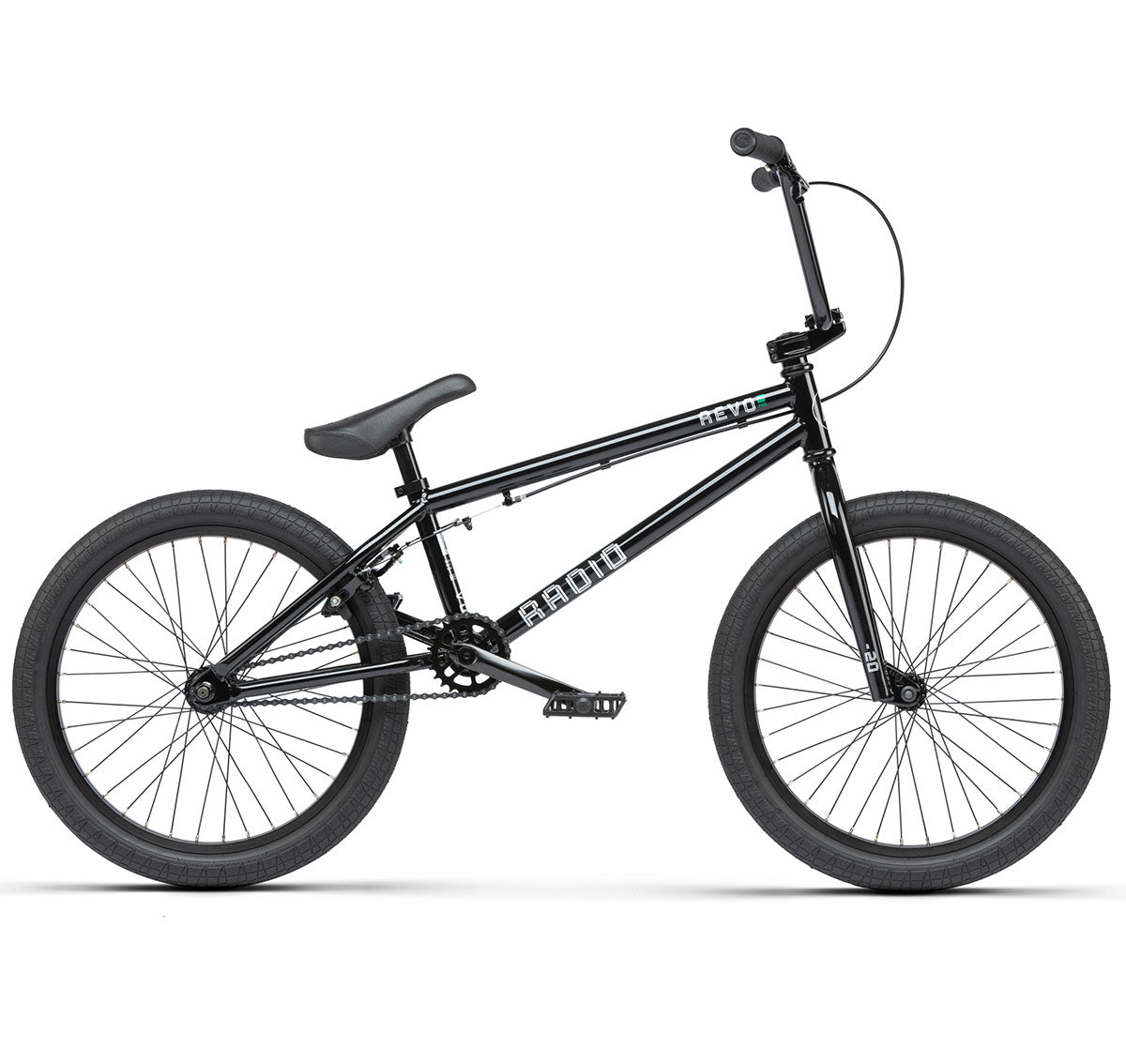

Radio Revo Pro BMX Bike

The Radio Revo Pro bike is perfect for a rider looking to make a jump into the realm of freestyle BMX. Affordable yet sturdy and track/ park ready. Radio made sure all the good parts were on the pro model check th elist below.

Specifications
Frame - Radio 'Revo Pro 20' frame, full 1020 hi-ten
Fork - Radio 'AM 20' fork, 1020 hi-ten, Cr-Mo steerer
Handlebar - Radio 'Revo Pro 20' bar, hi-ten
Grips - Radio 'AM' grips, flangeless, 150mm
Stem - Salt 'AM' topload stem, 50mm reach
Headset - FSA a-head-set loose ball
Gyro - Salt 'AM' rotor with Salt 'AM' rotor cables
Brake lever - Radio 'AM' alloy brake lever
Brake - Radio 'AM' alloy u-brake rear
Crank - Radio 'Rookie' 3pc forged crank Cr-Mo, 170mm
BB - USA size, loose ball
Pedals - Radio 'Rookie' nylon pedals
Chain - KMC 'S1' chain
Sprocket - Radio 'Rookie' sprocket, steel, 25T
Driver - 9T, cassette
Front hub - Radio 'Rookie' steel hub, Lb, 3/8" 36H
Rear hub - Radio 'Rookie' cassette hub, steel, Lb, 9T, 14mm axle, 36H
Front rim - Salt 'AM' rim, straight single wall, 36H
Rear rim - Salt 'AM' rim, straight single wall, 36H
Seat - Radio 'Century' slim combo seat
Seat clamp - Radio slim alloy seat clamp
Tyres - Radio 'Rookie' tyres, 20″x2.2″, front & rear
Weight - 12.51kg

Frame geometry
Top tube length - 20″
Chain stay length - 13″
Head tube angle - 75°
Seat tube angle - 71.5°
Bottom bracket height - 11.75″
Standover height - 7.8″

Handlebar geometry
Rise - 8.75″
Width - 29″
Backsweep - 11°
Upsweep - 2°
