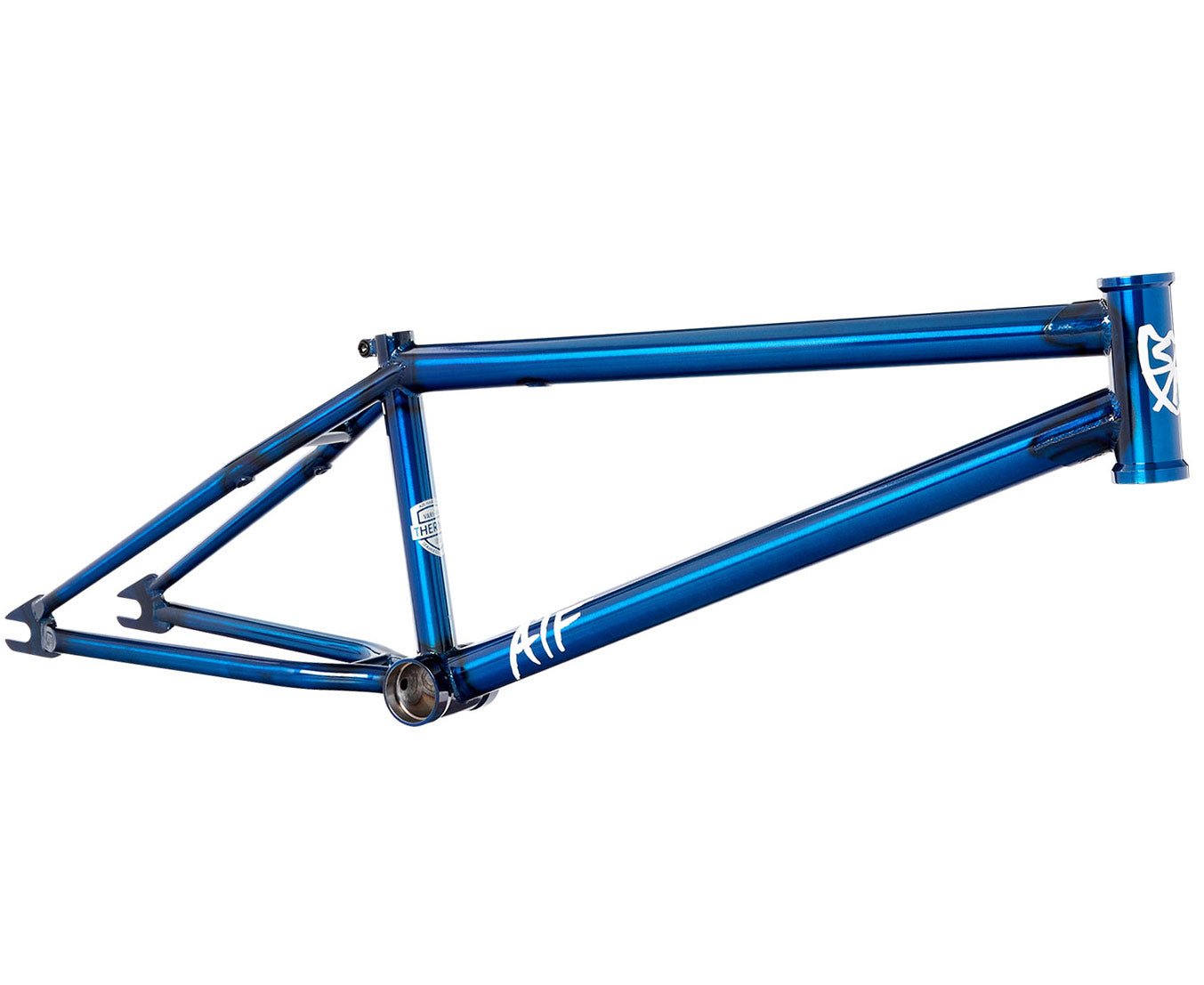

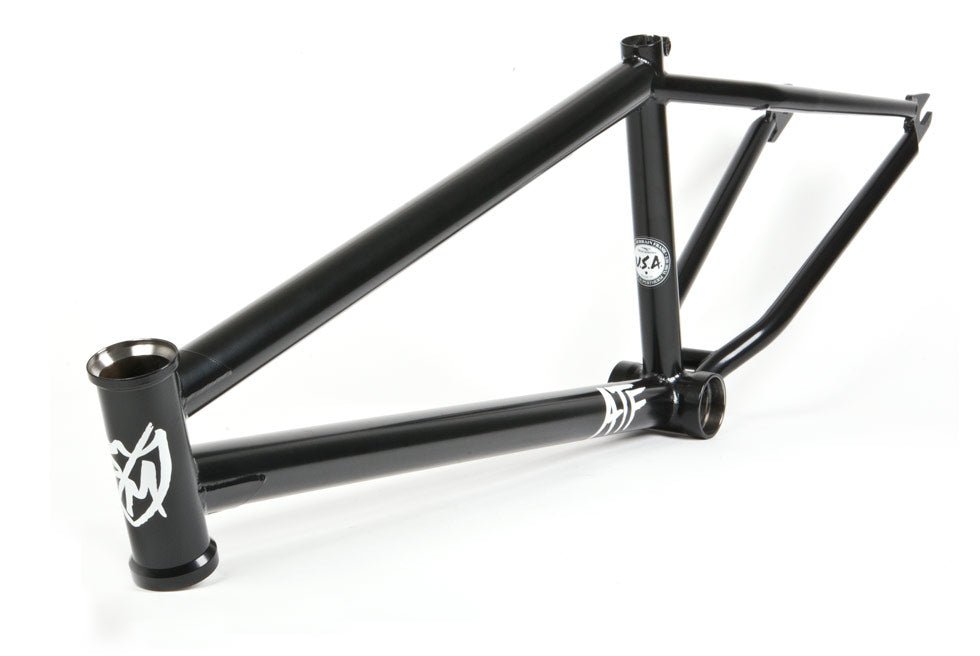

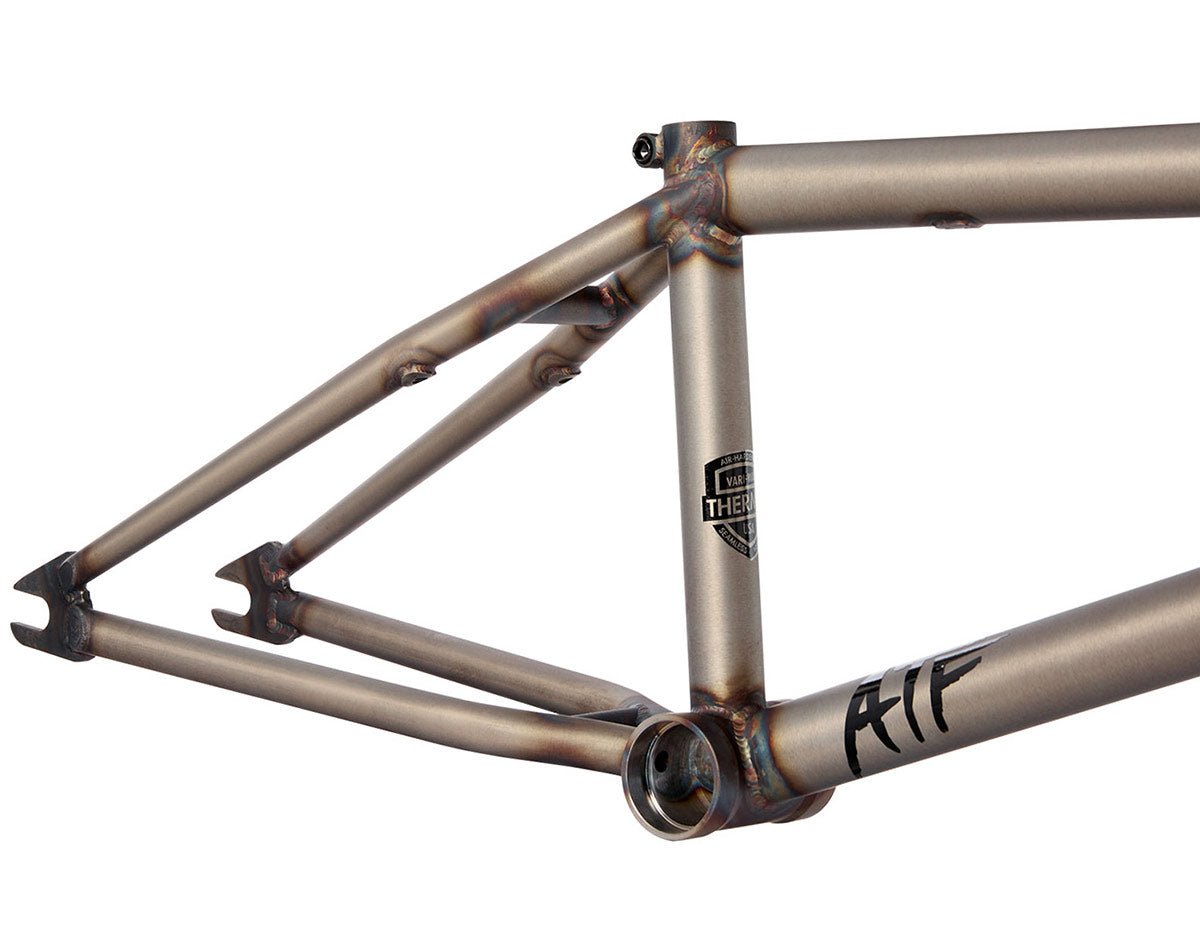

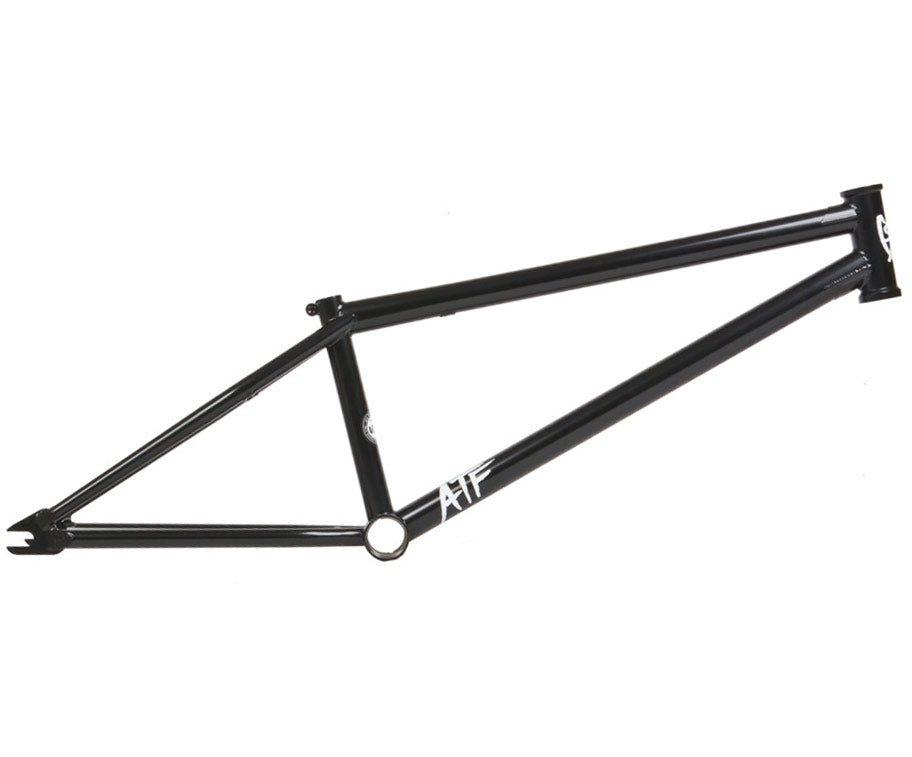

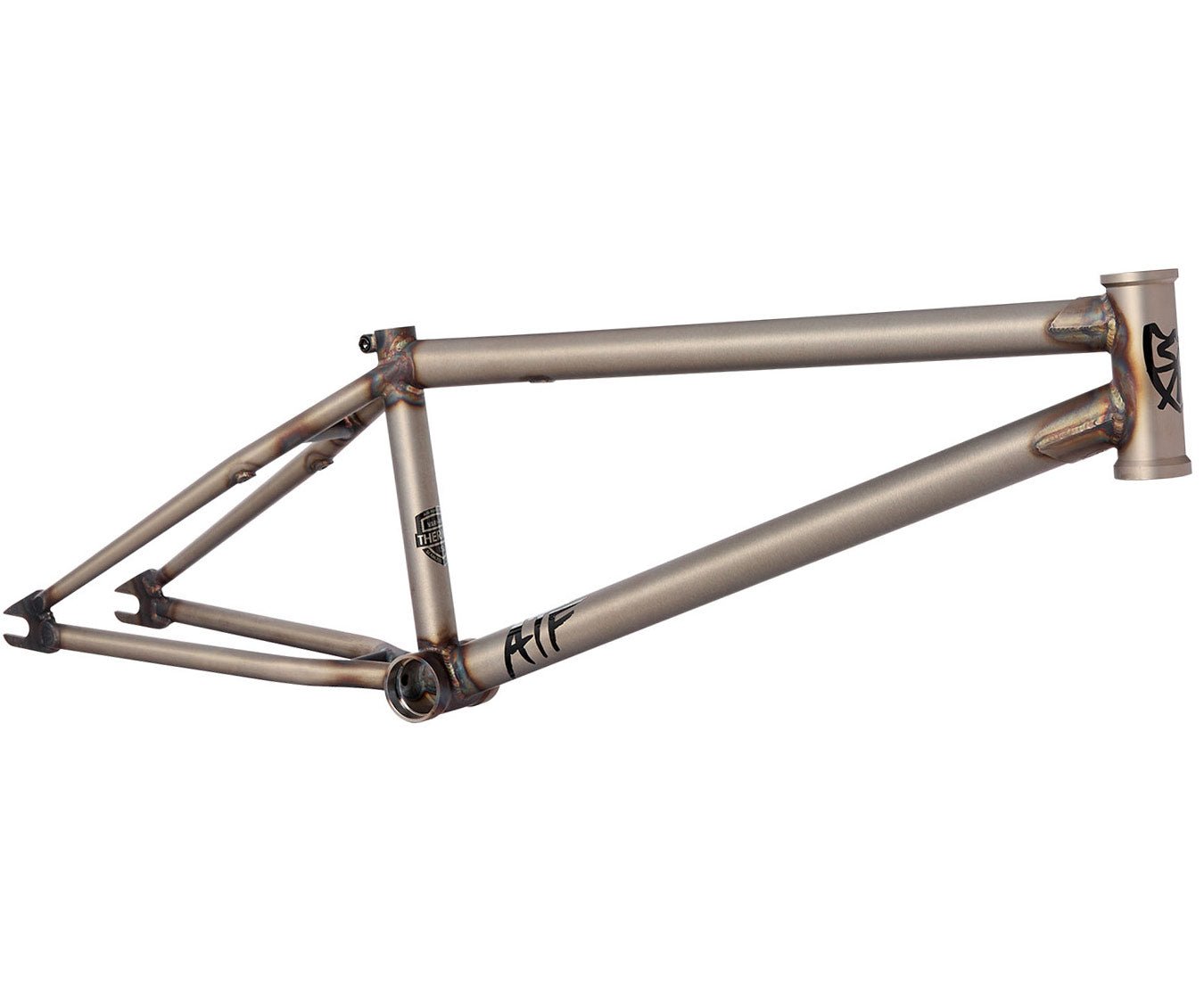

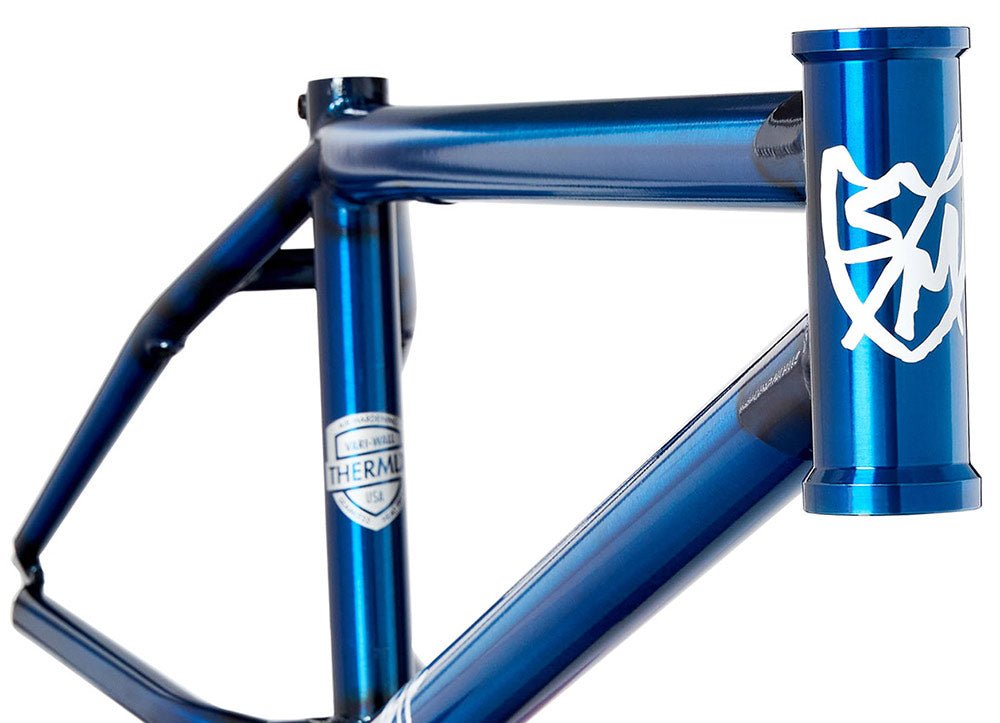

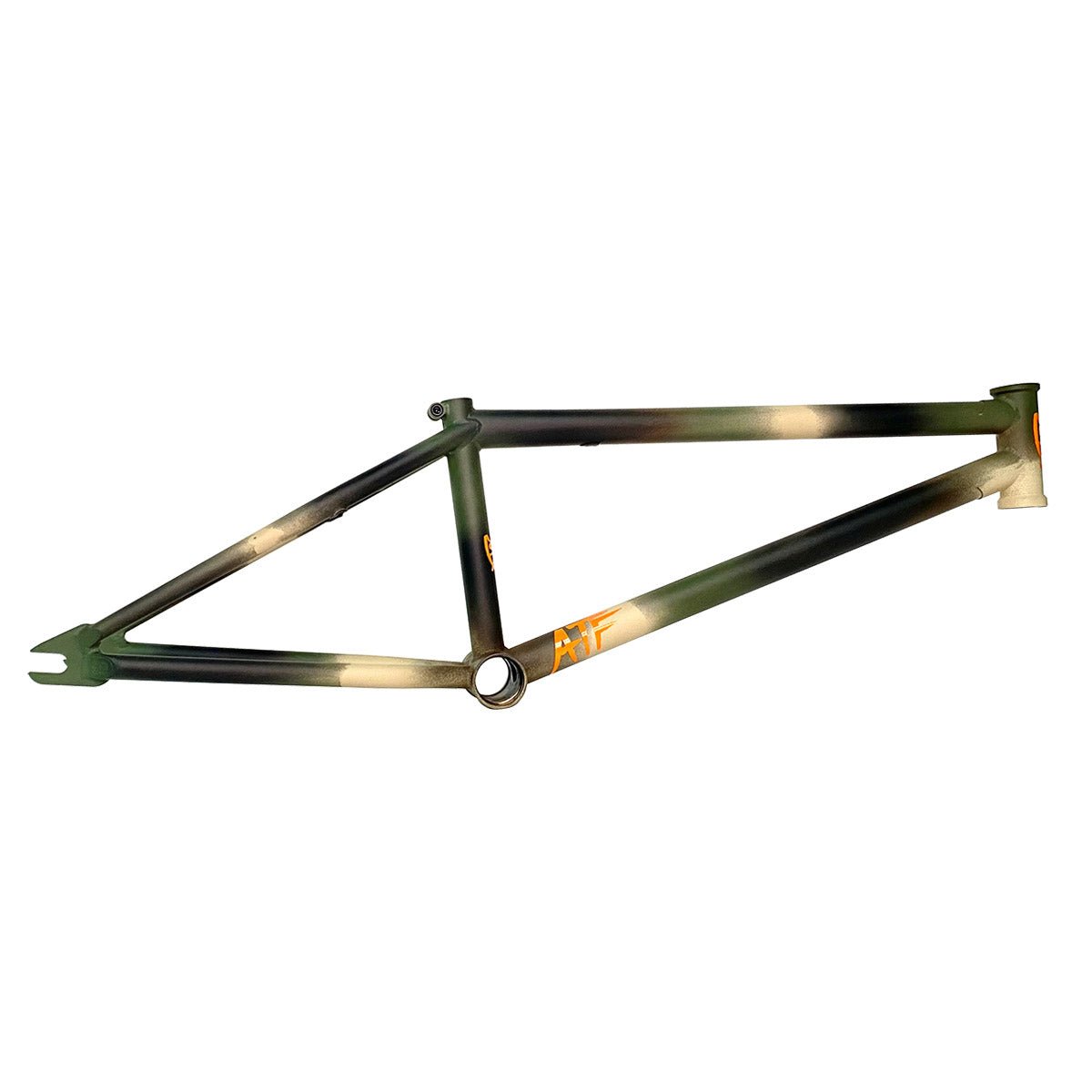

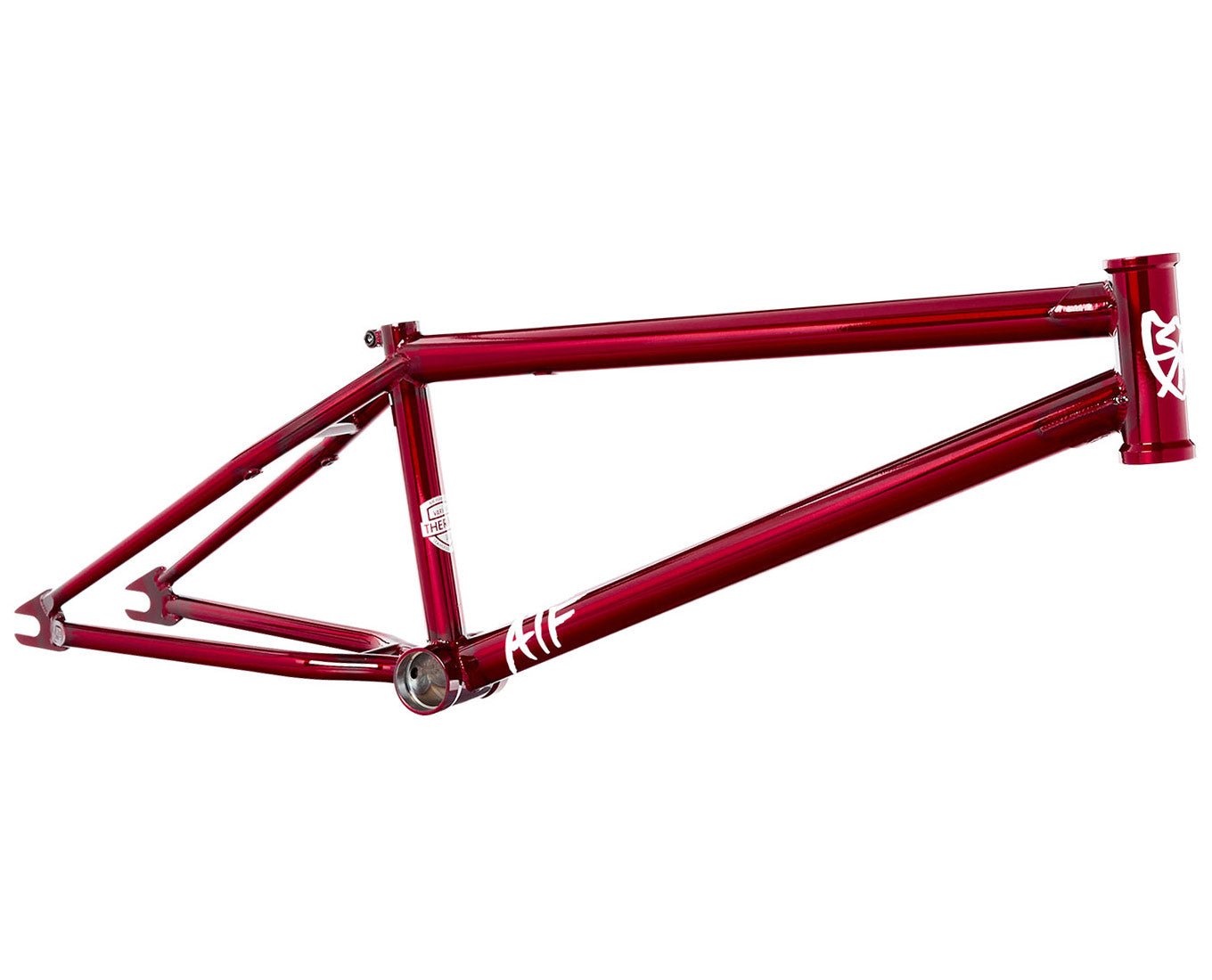

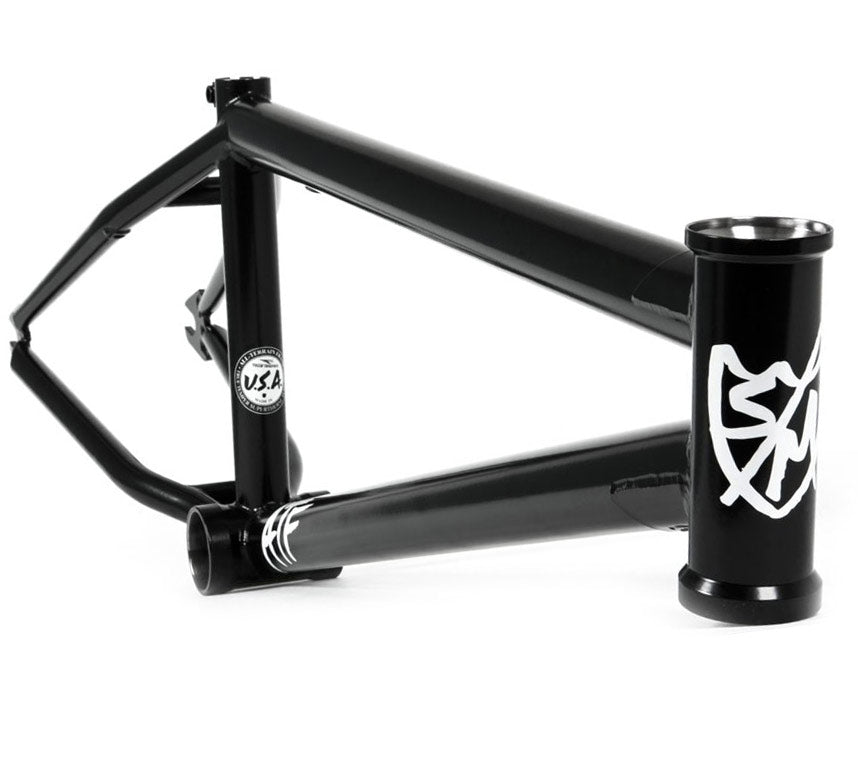

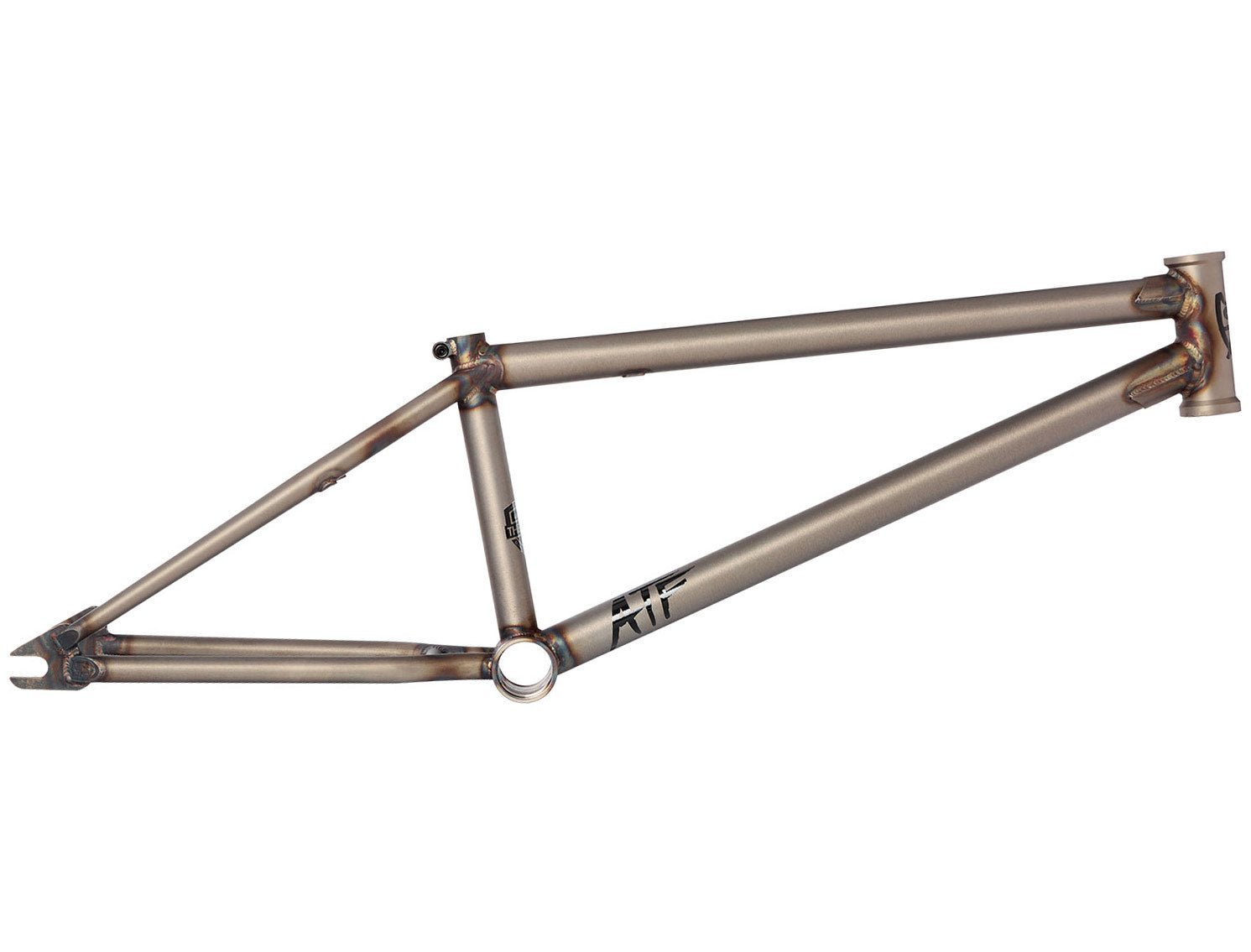

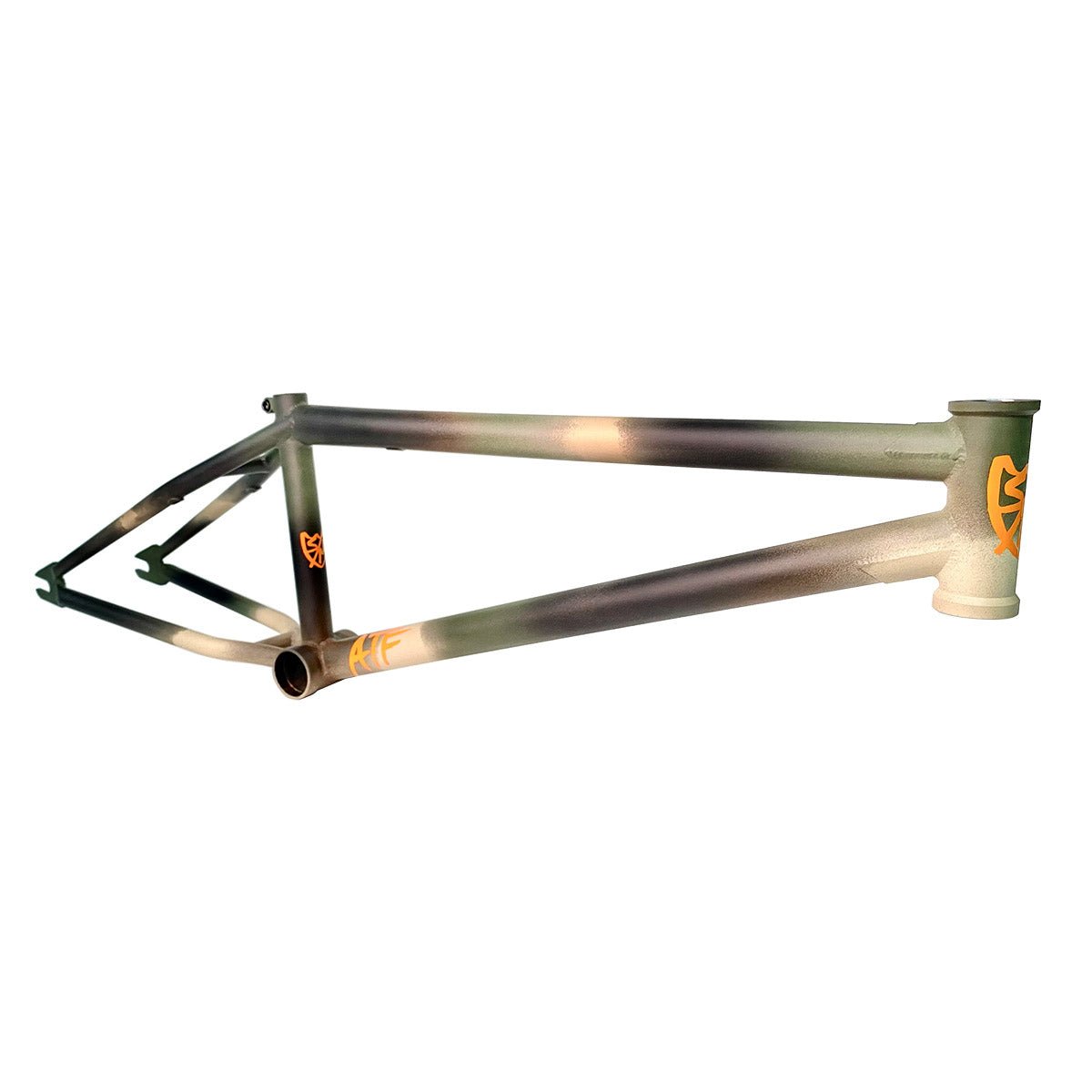

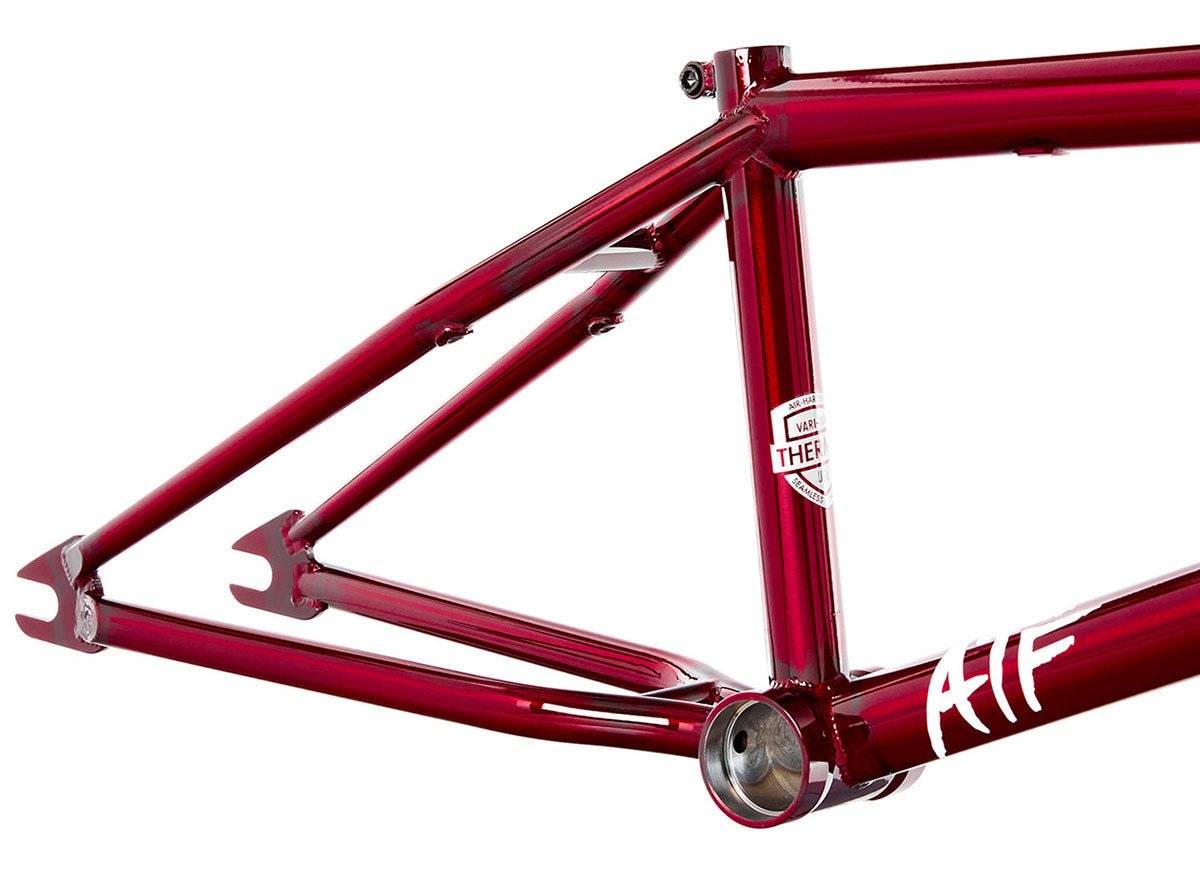

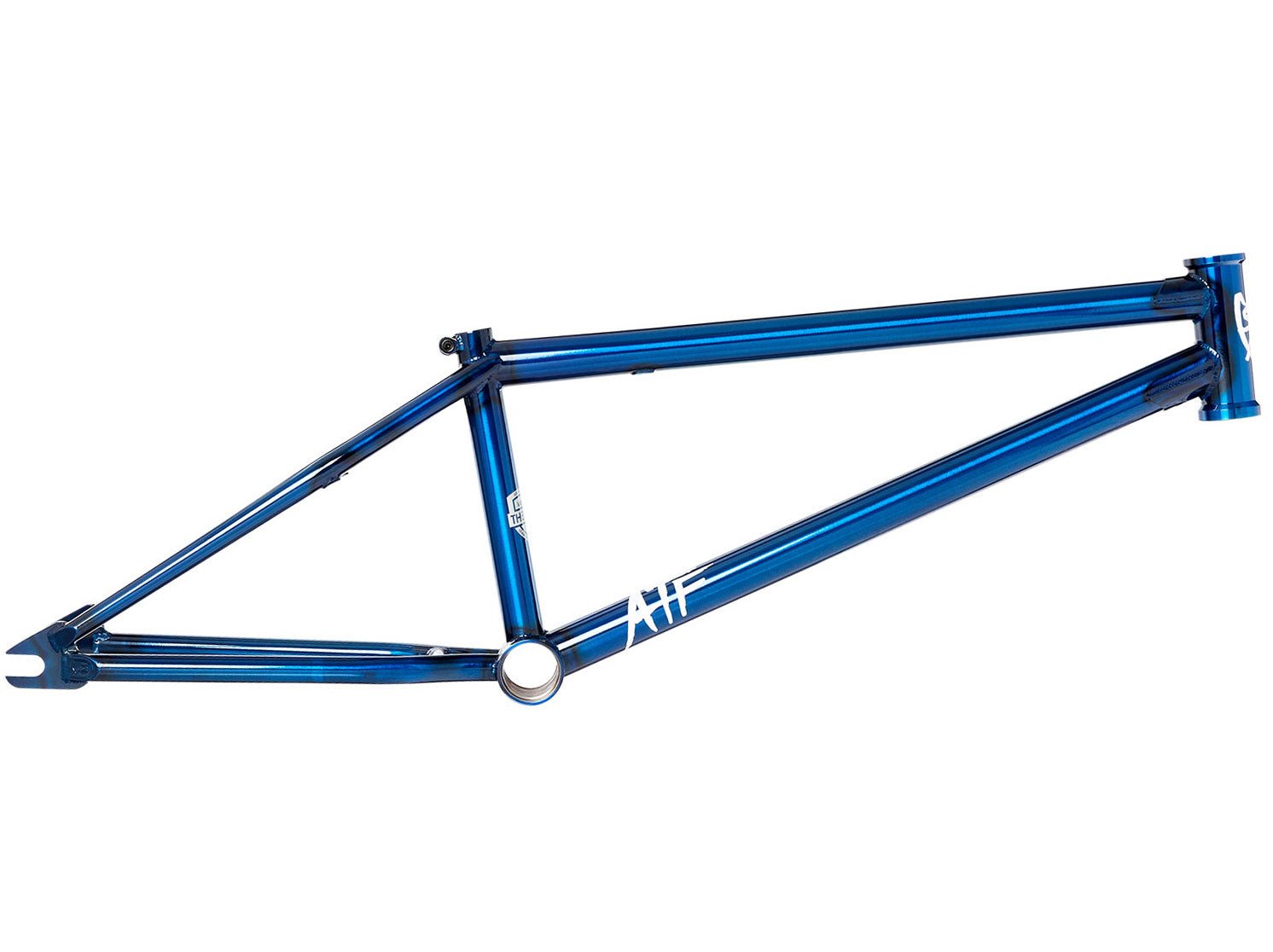

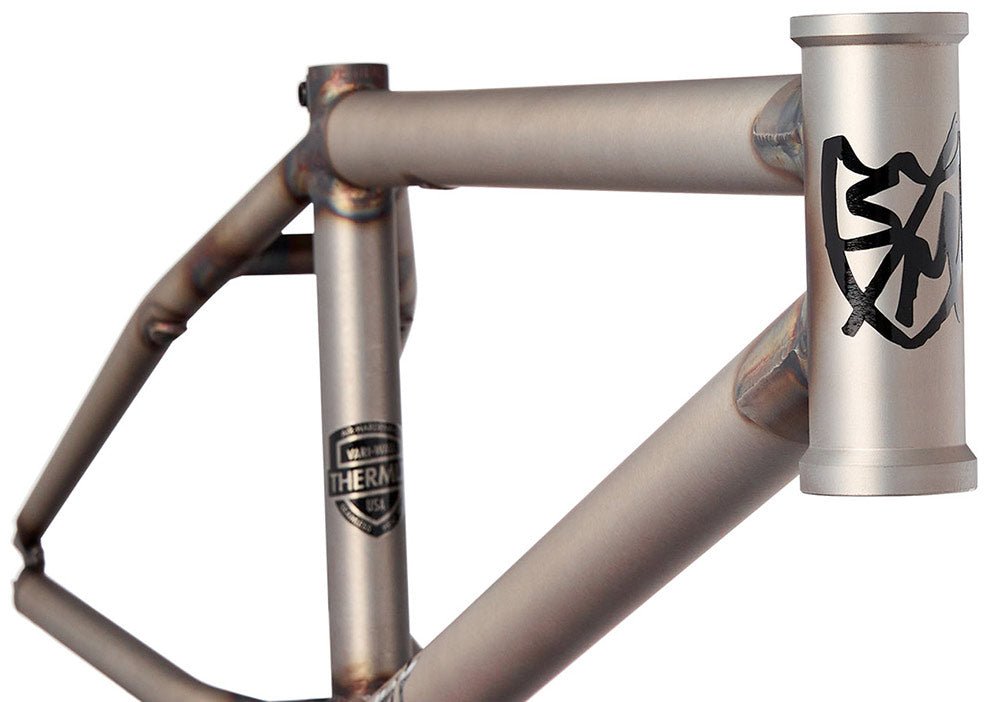

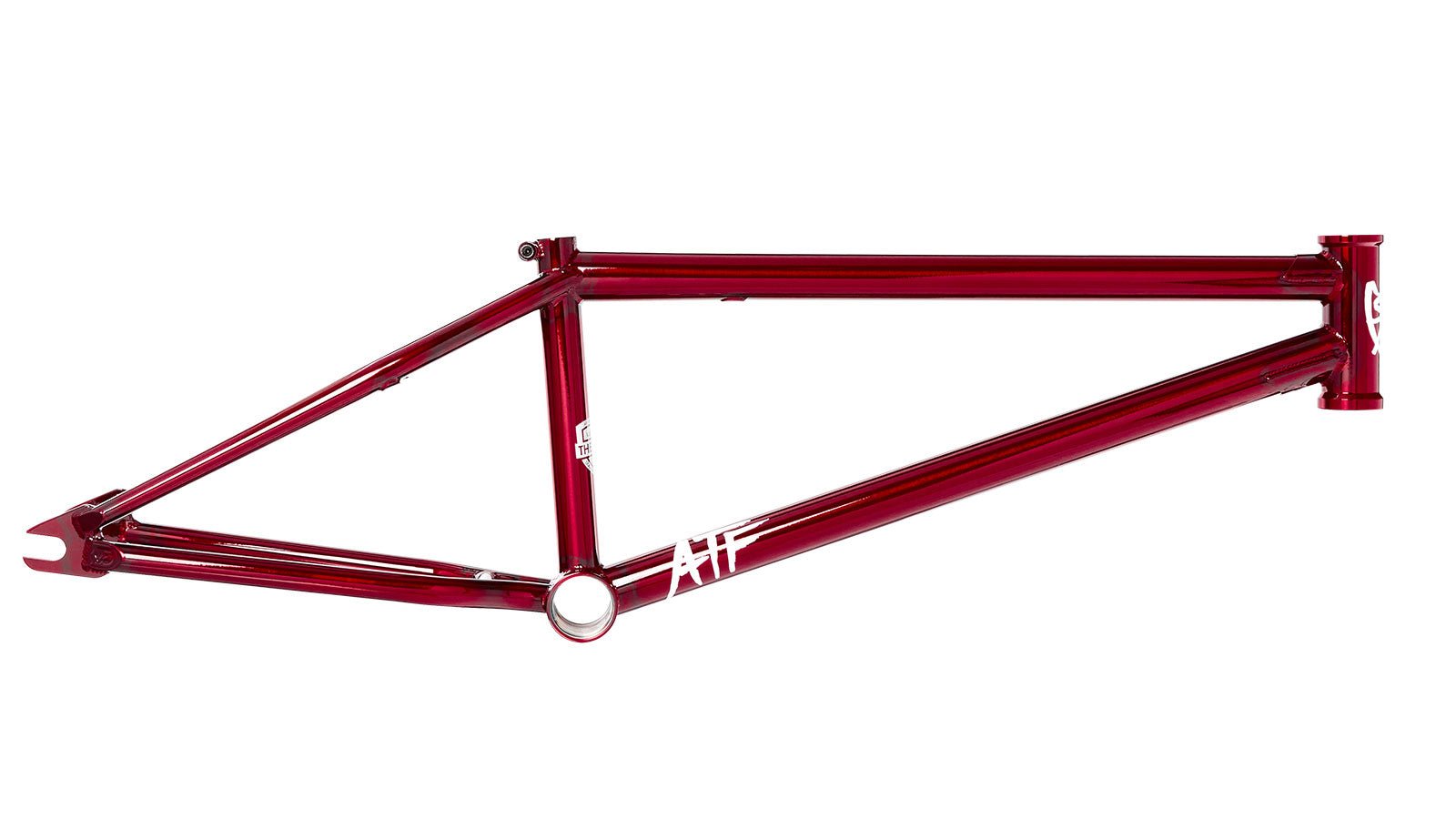

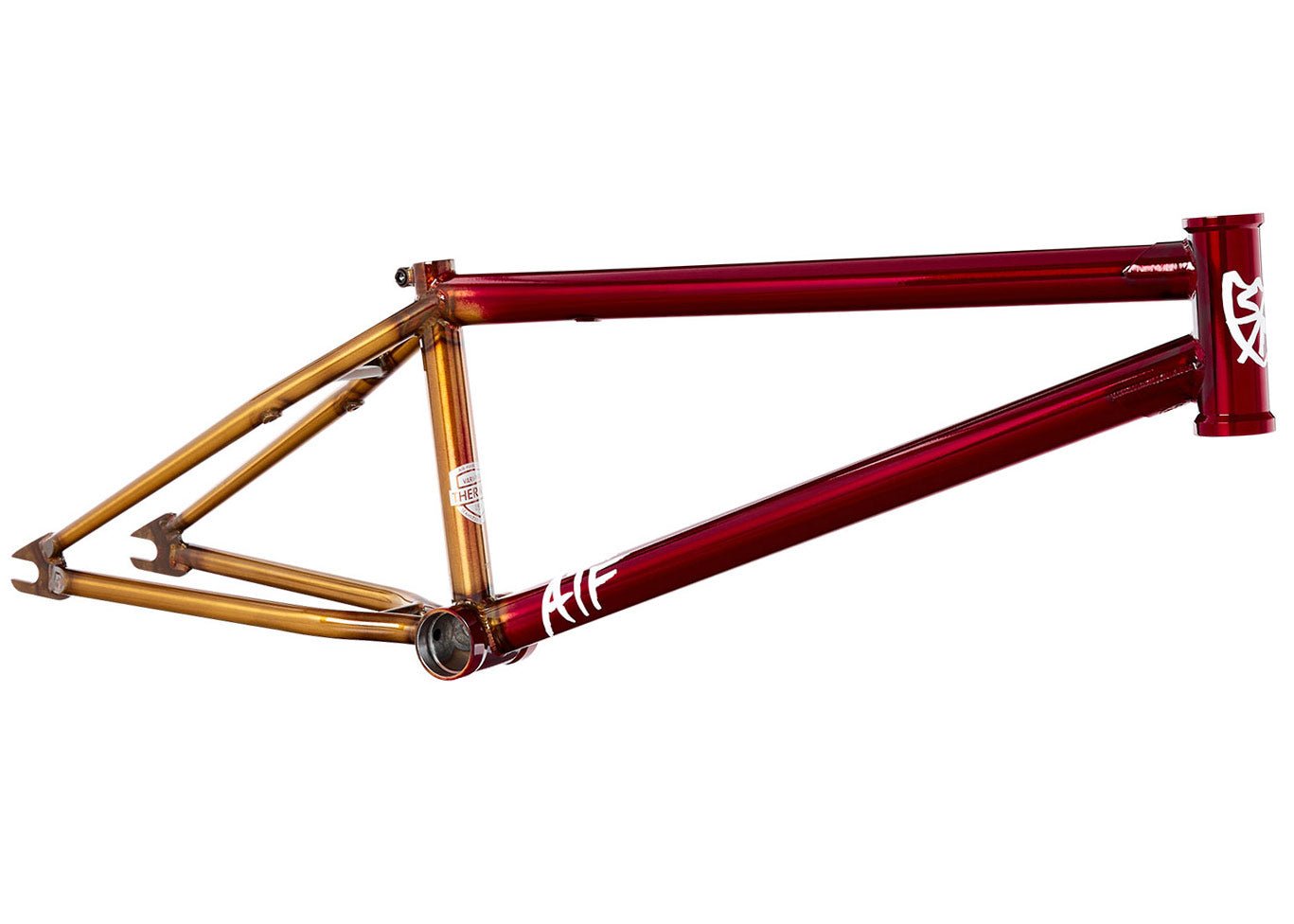

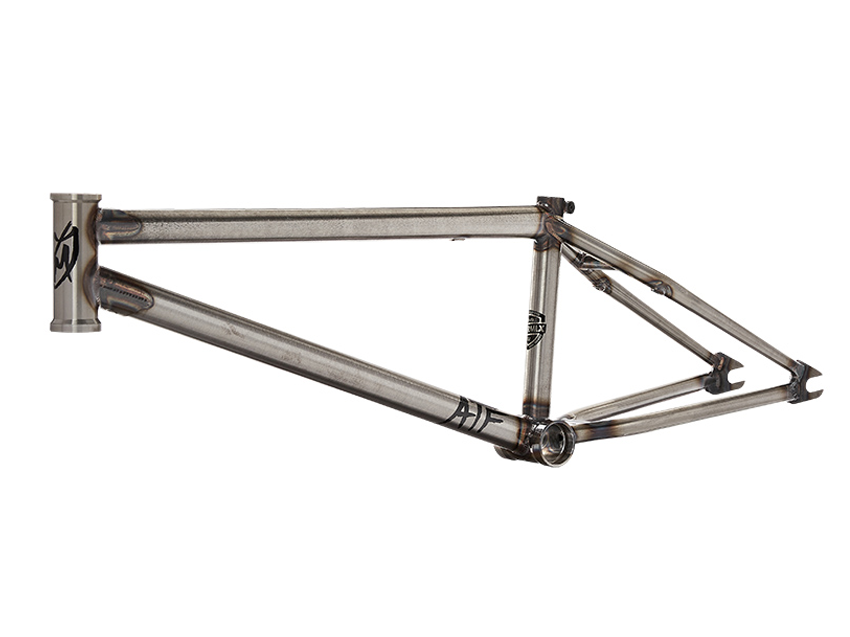

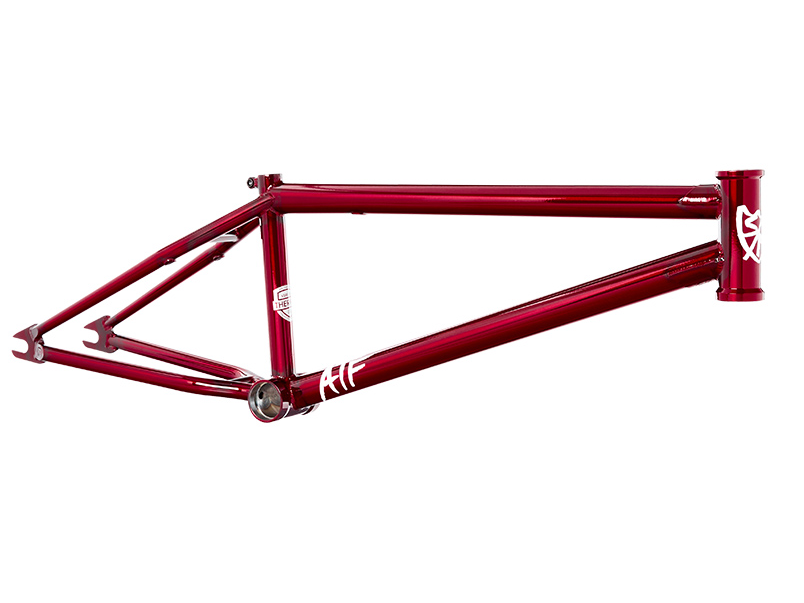

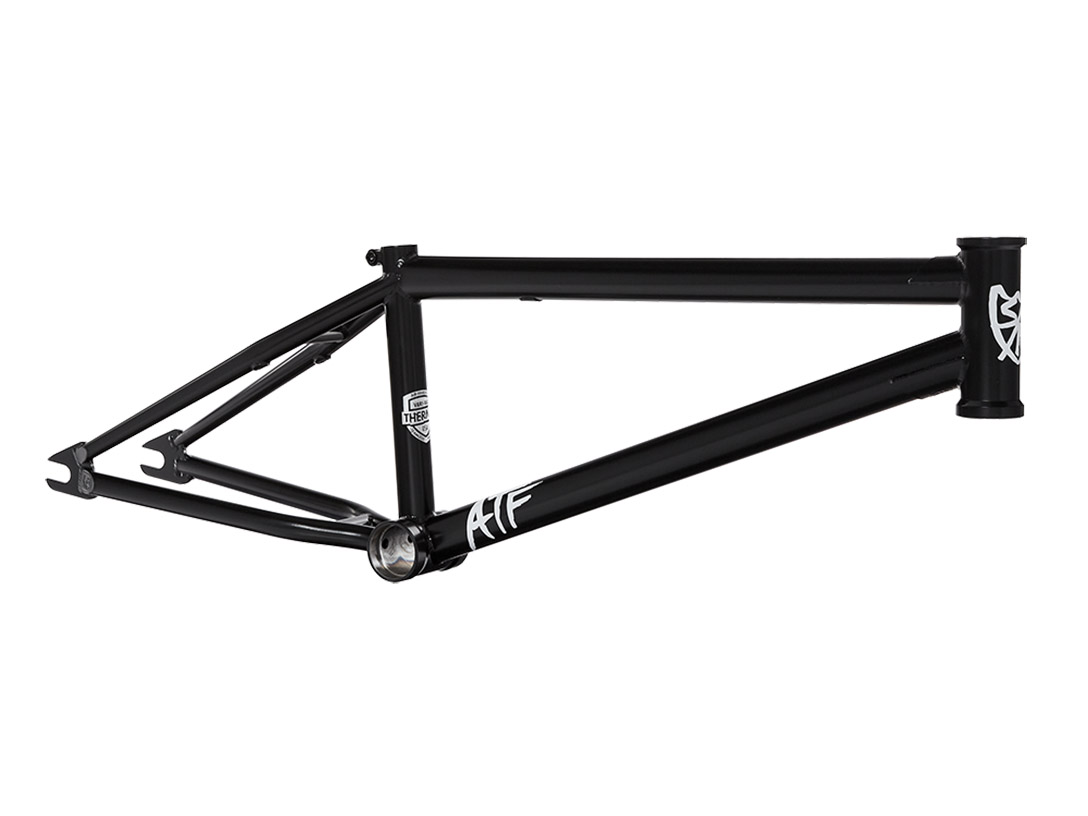

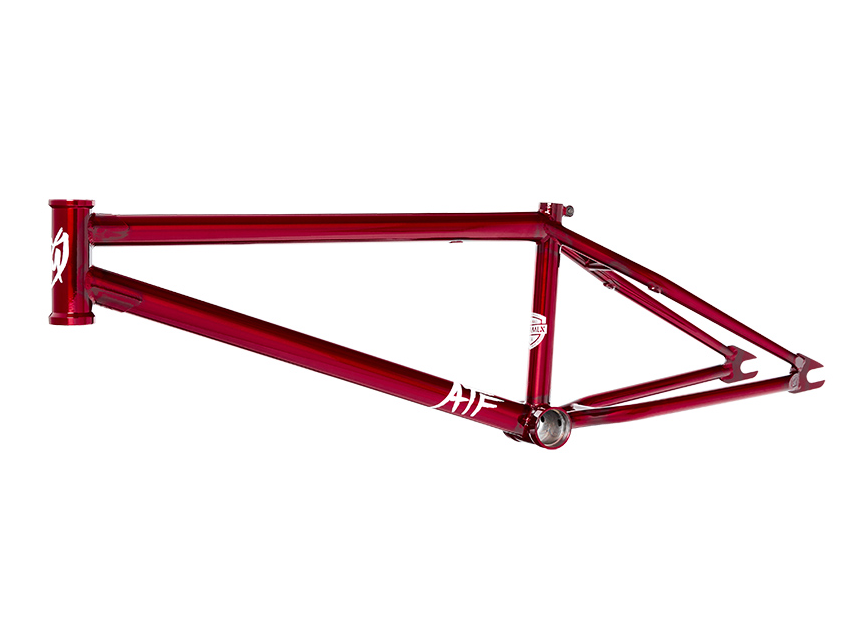

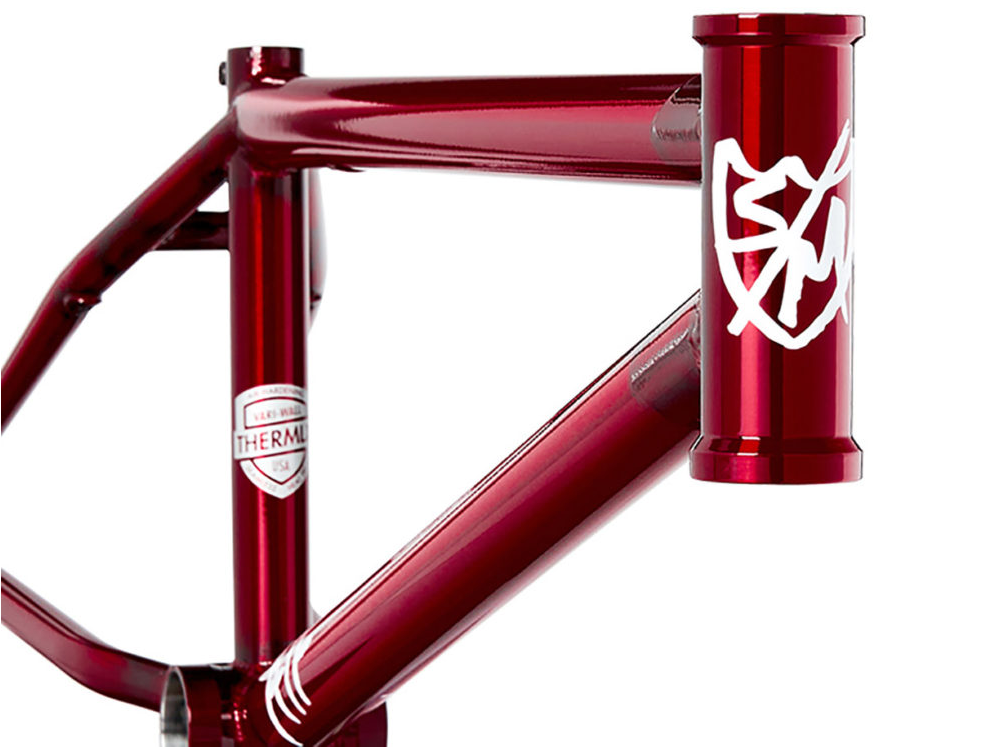

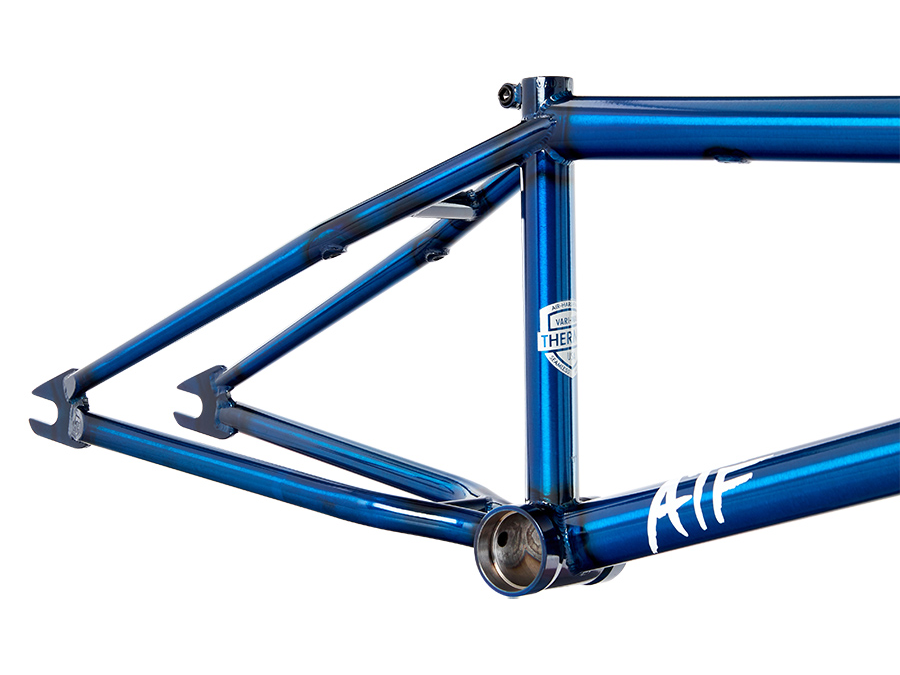

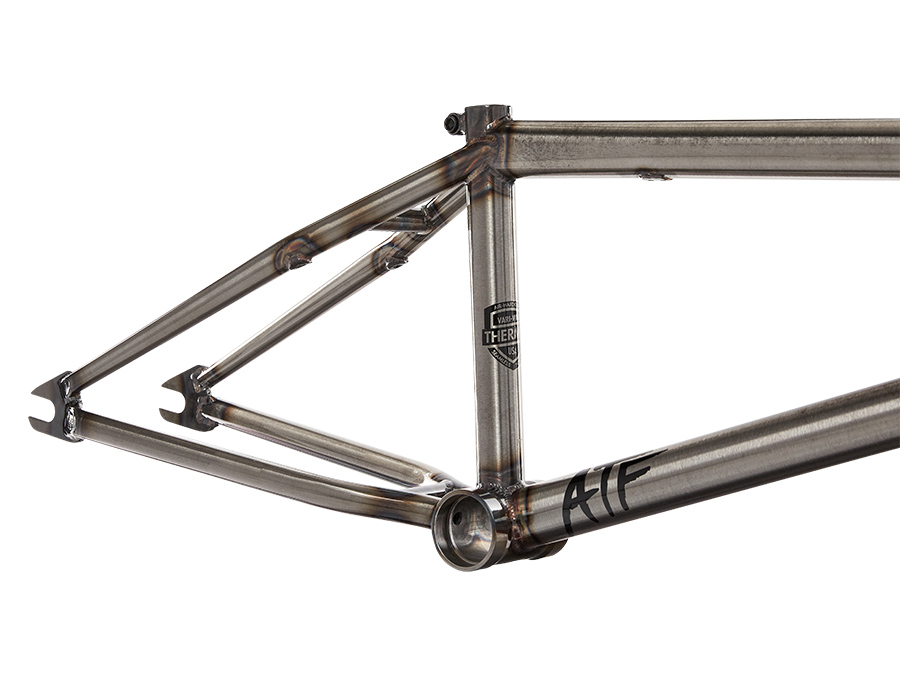

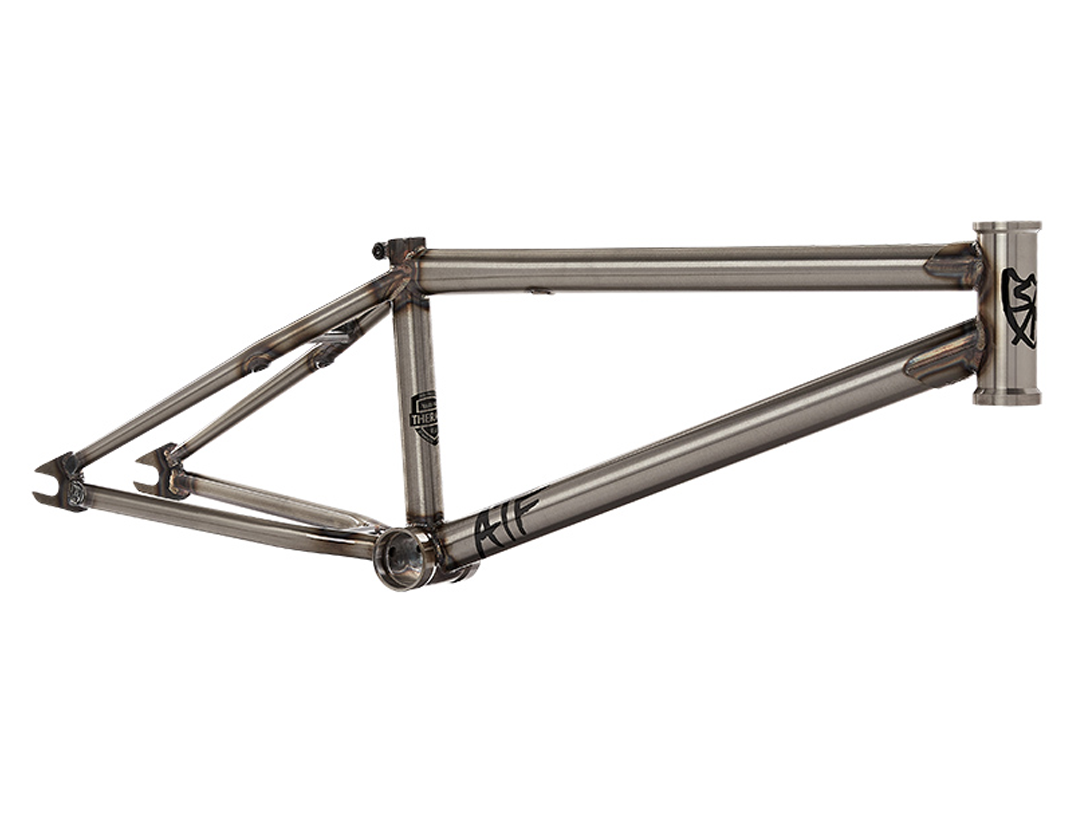

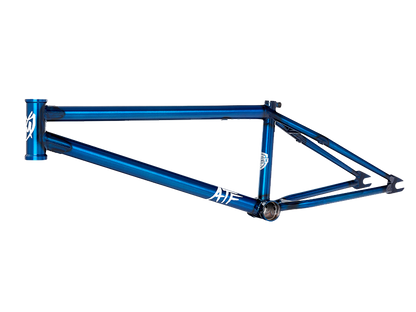

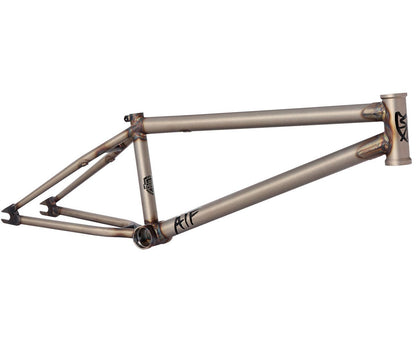

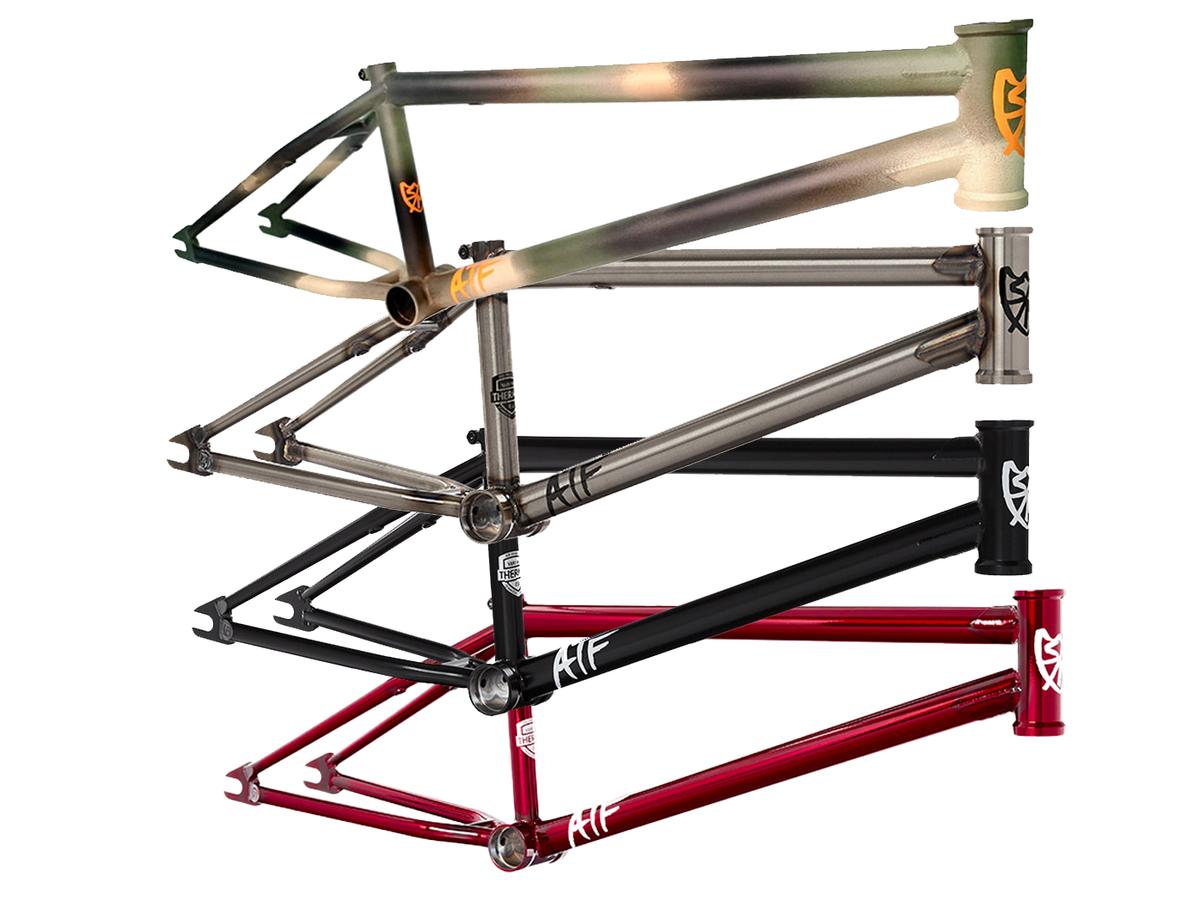

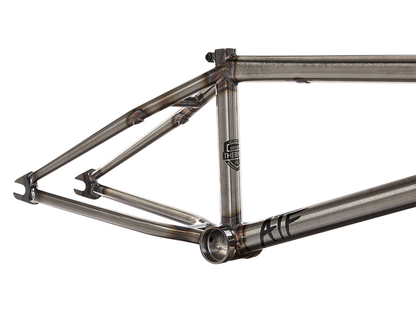

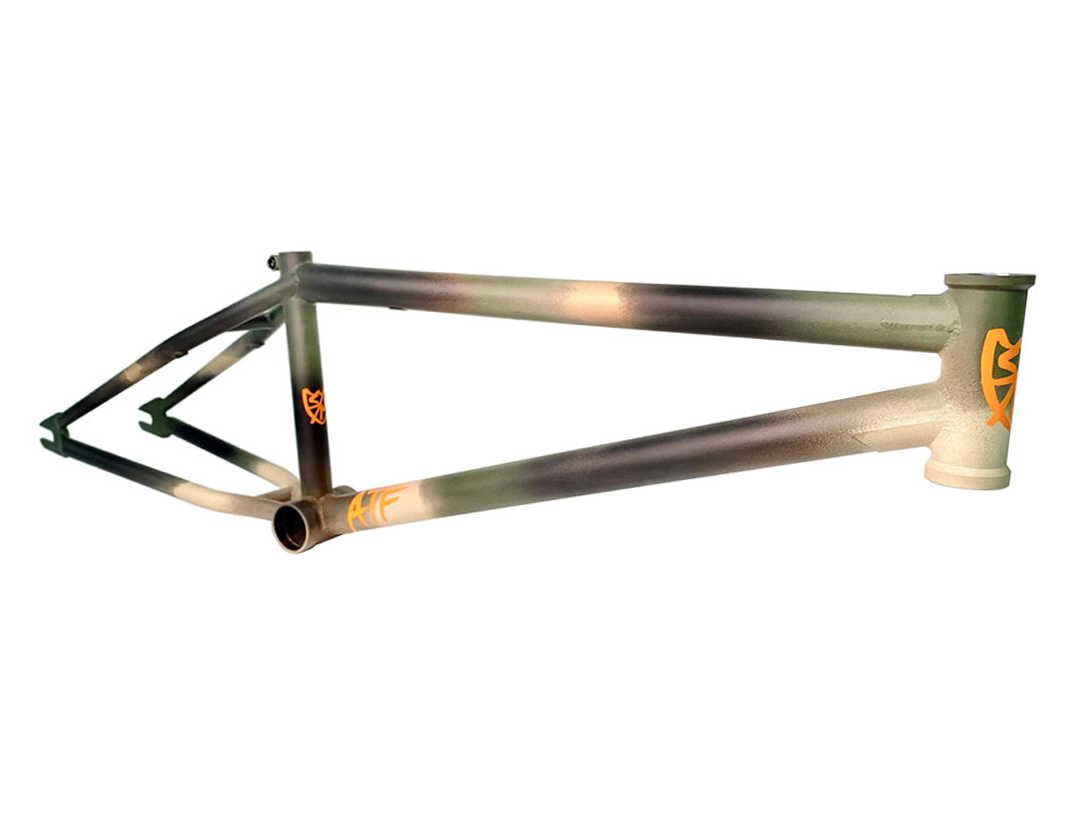

S&M ATF Frame

The S&M ATF (All Terrain Frame) is built for everything and is the go to S&M frame for many riders worldwide. Dependable, strong, ready for anything!

Specifications
BB style - Mid
Brake mounts - Thread-on 990 (mounts sold separately)
Gyro tabs - none
Weight - 2.12 kg
Tubeset - Butted Thermal-X Tubing

Geometry
Top tube lengths - 20.5″, 20.75″, 21″, 21.25″,21.5″
Rear end length - 13.4″-13.875″
Head tube angle - 75°
Head tube style - Integrated (45°/45°, 41.8mm)
Seat tube angle - 71°
Seat clamp - Integrated
Seat post size - 1″ (25.4mm)
BB height - 11.7″
Standover height - 8.5″
Dropouts - 14mm slot, 4q-baked
