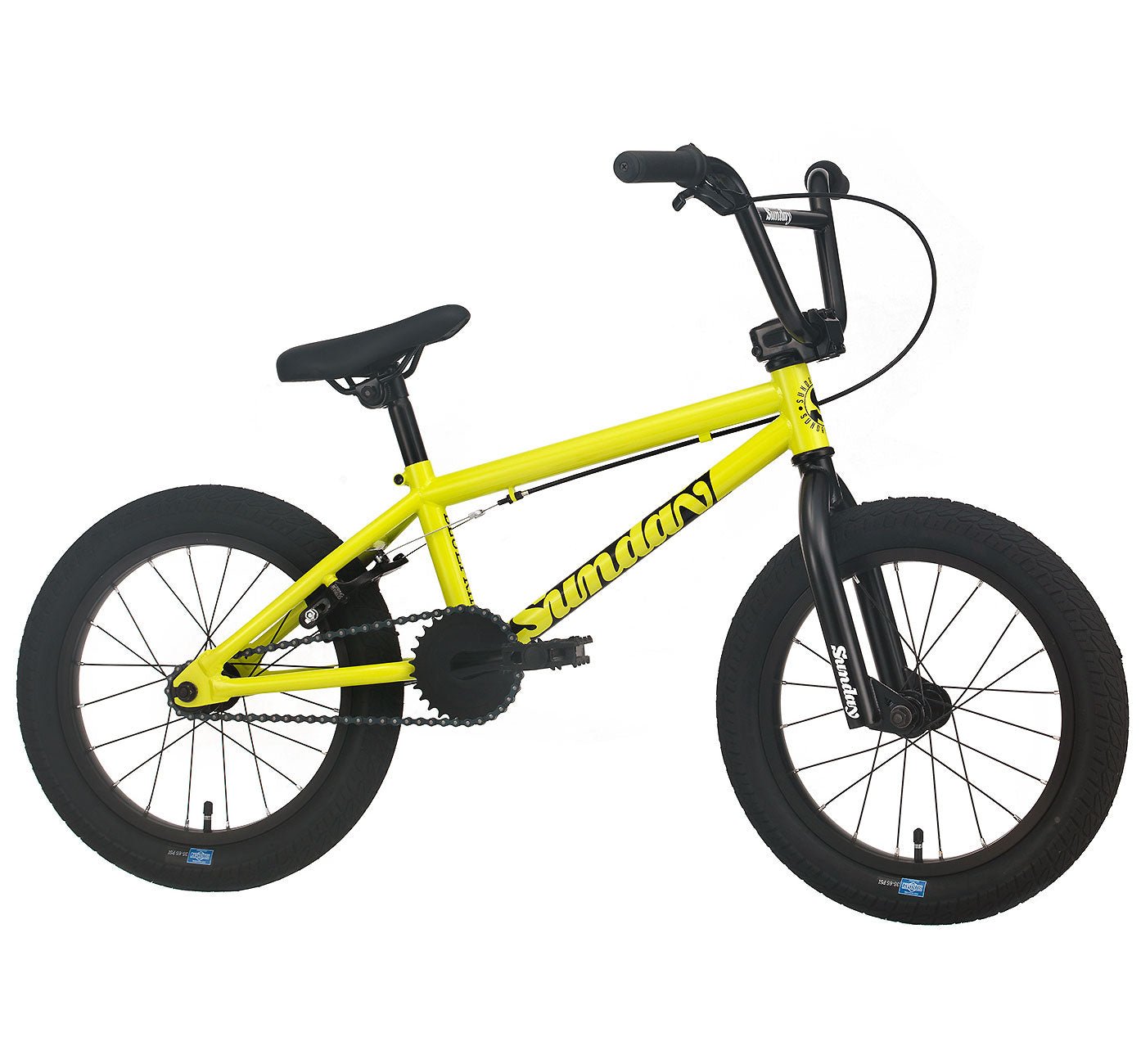

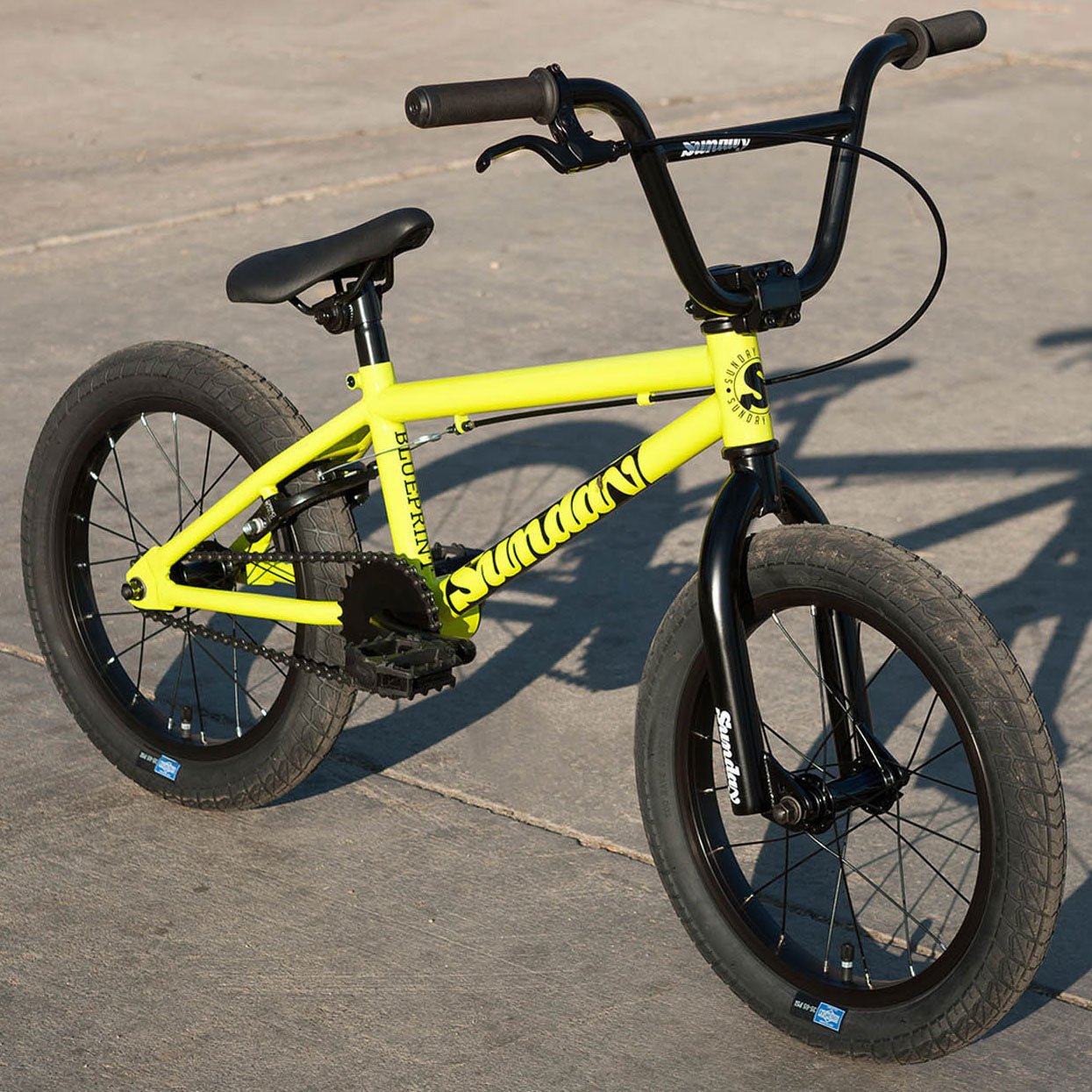

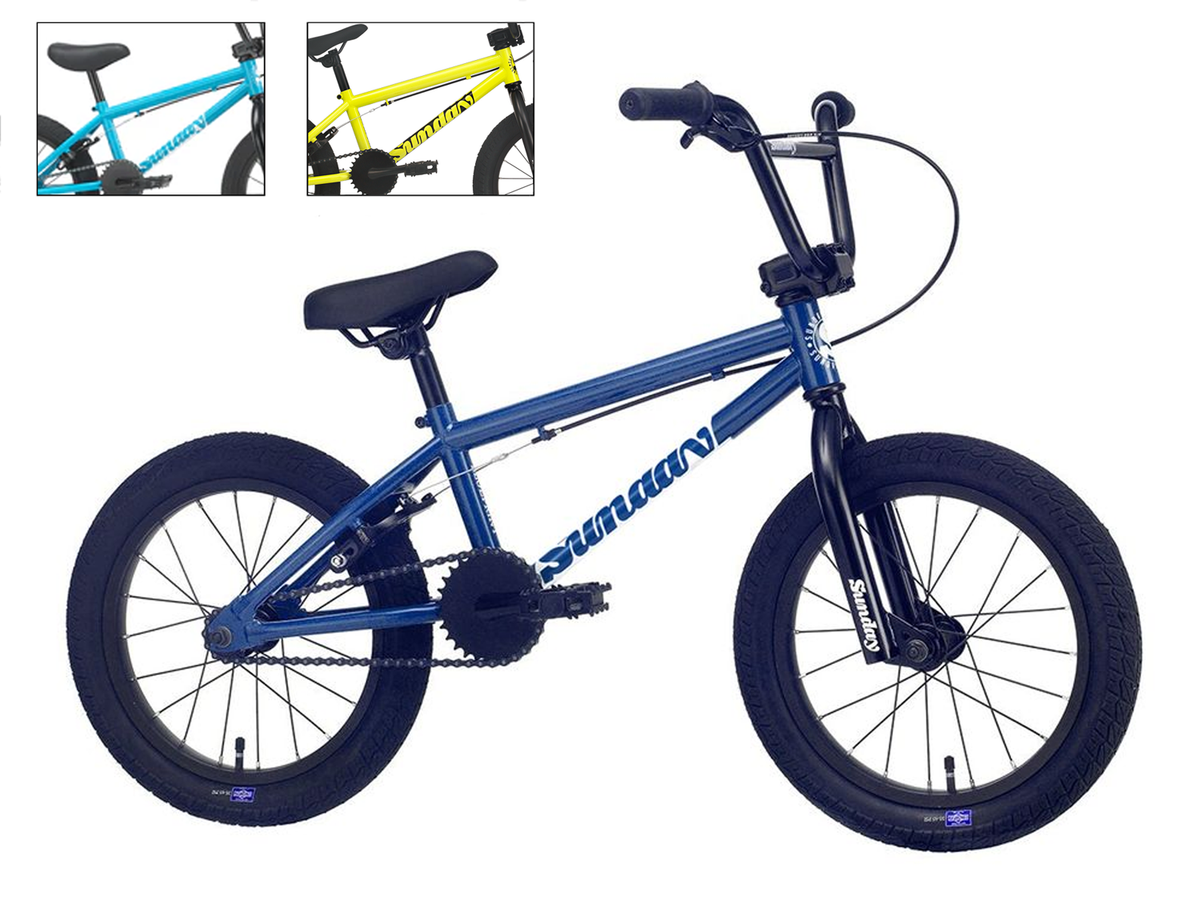

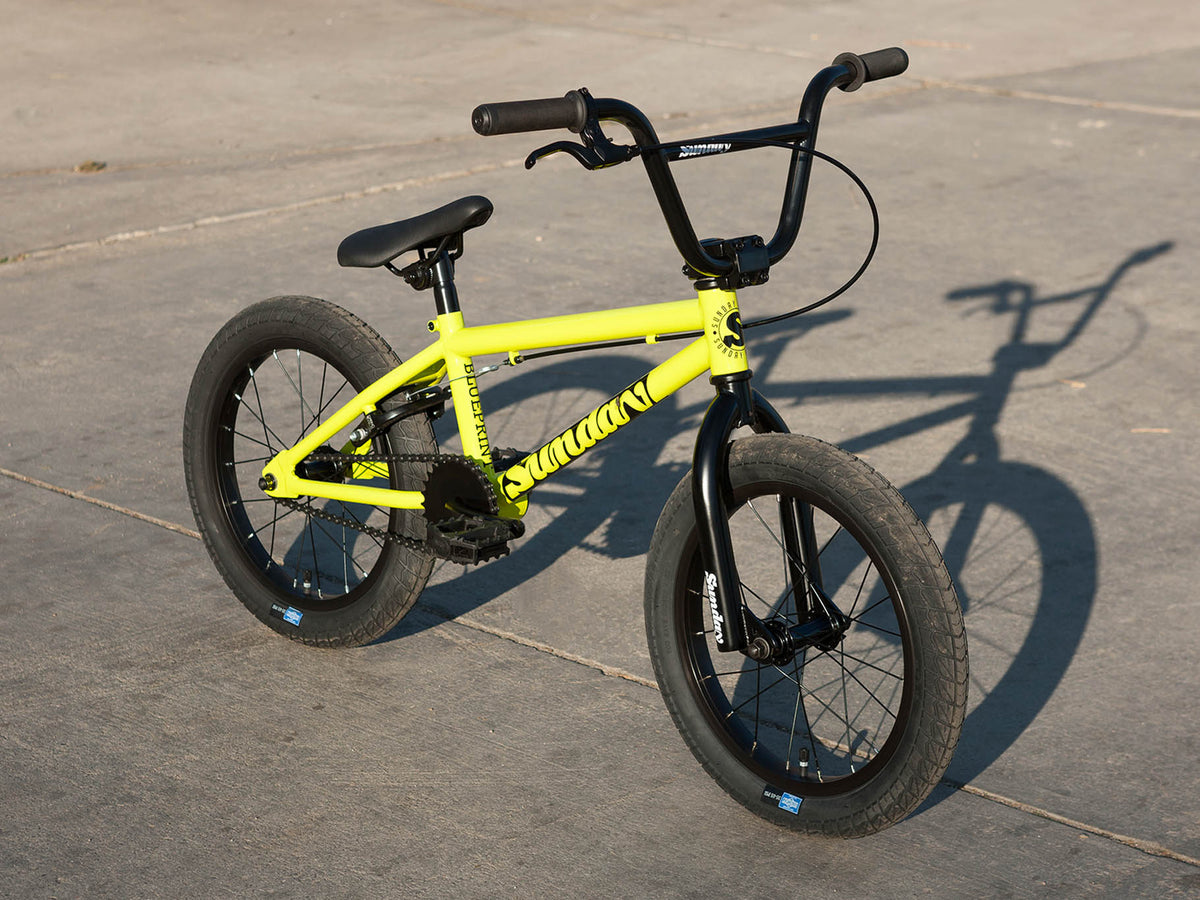

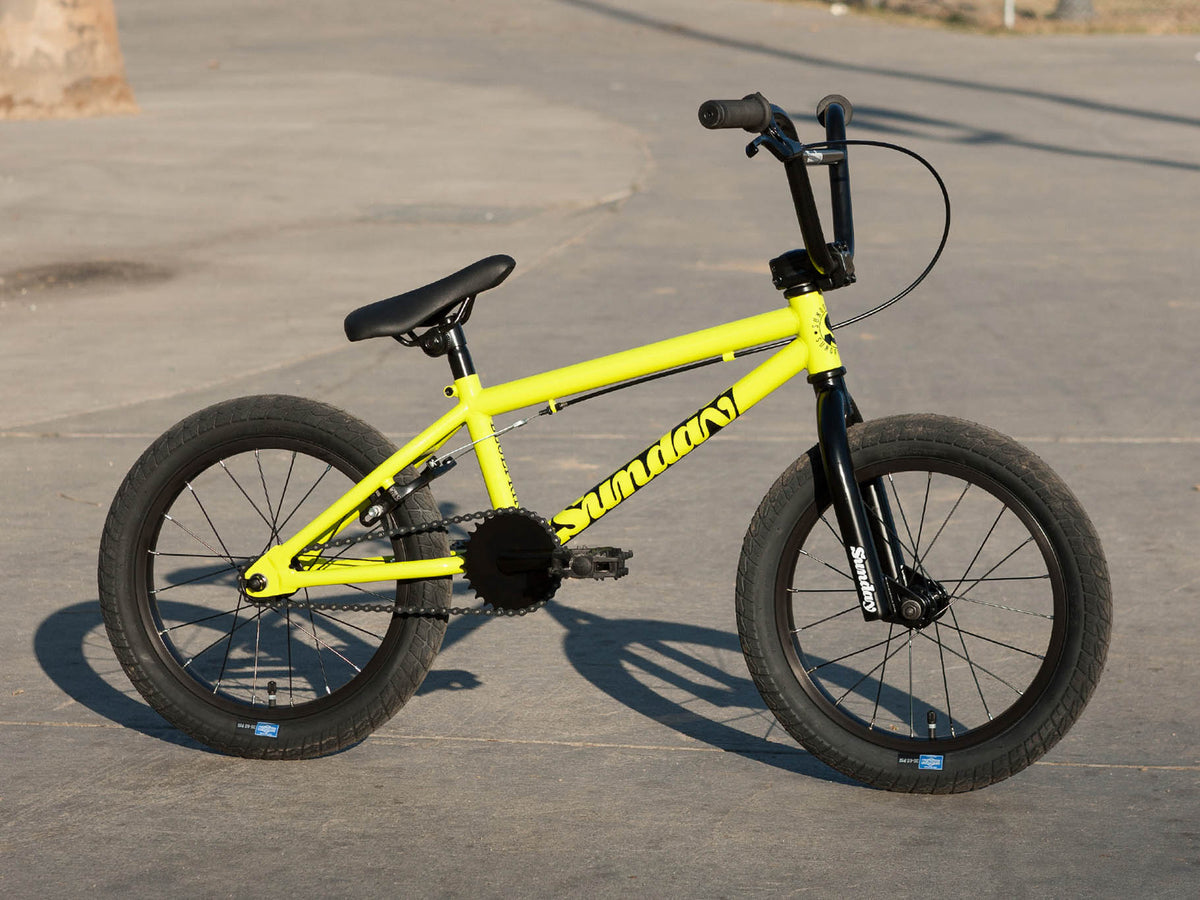

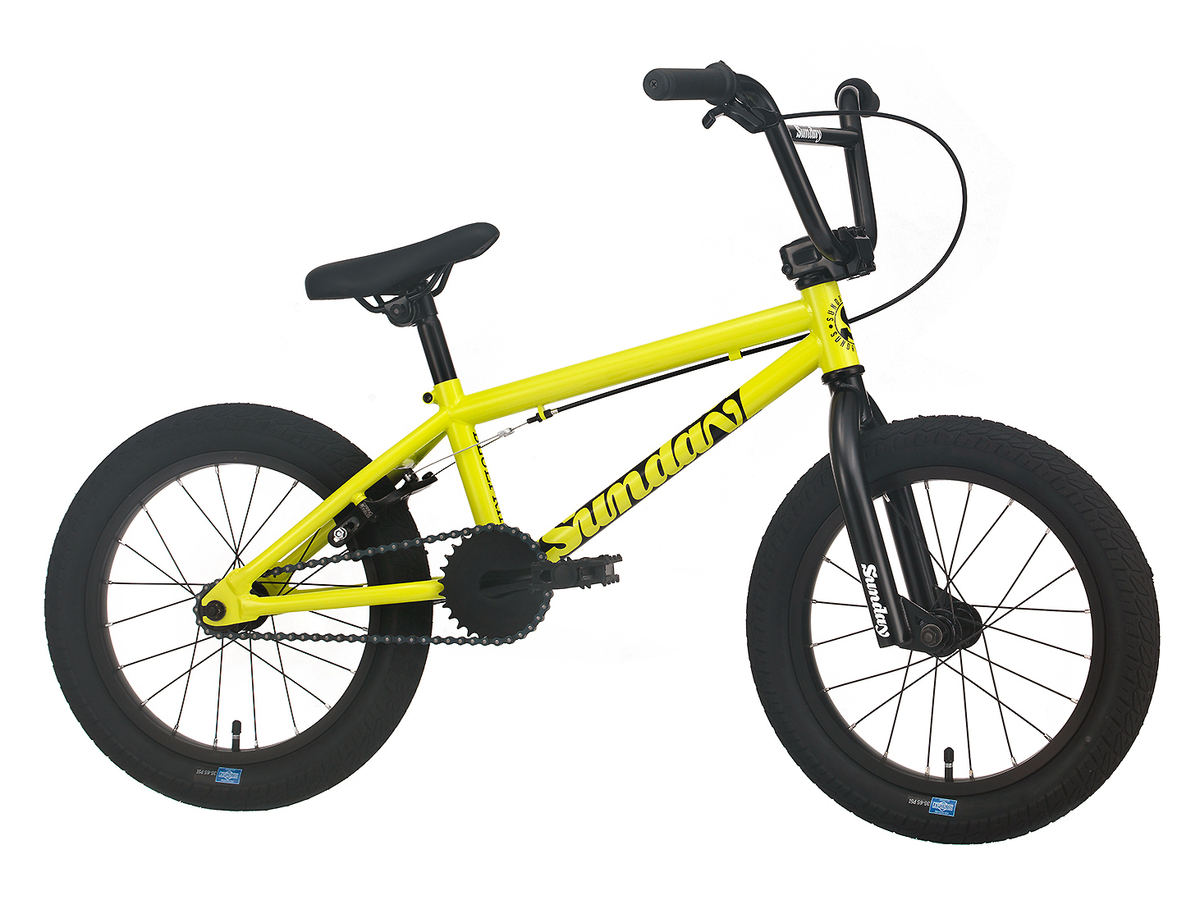

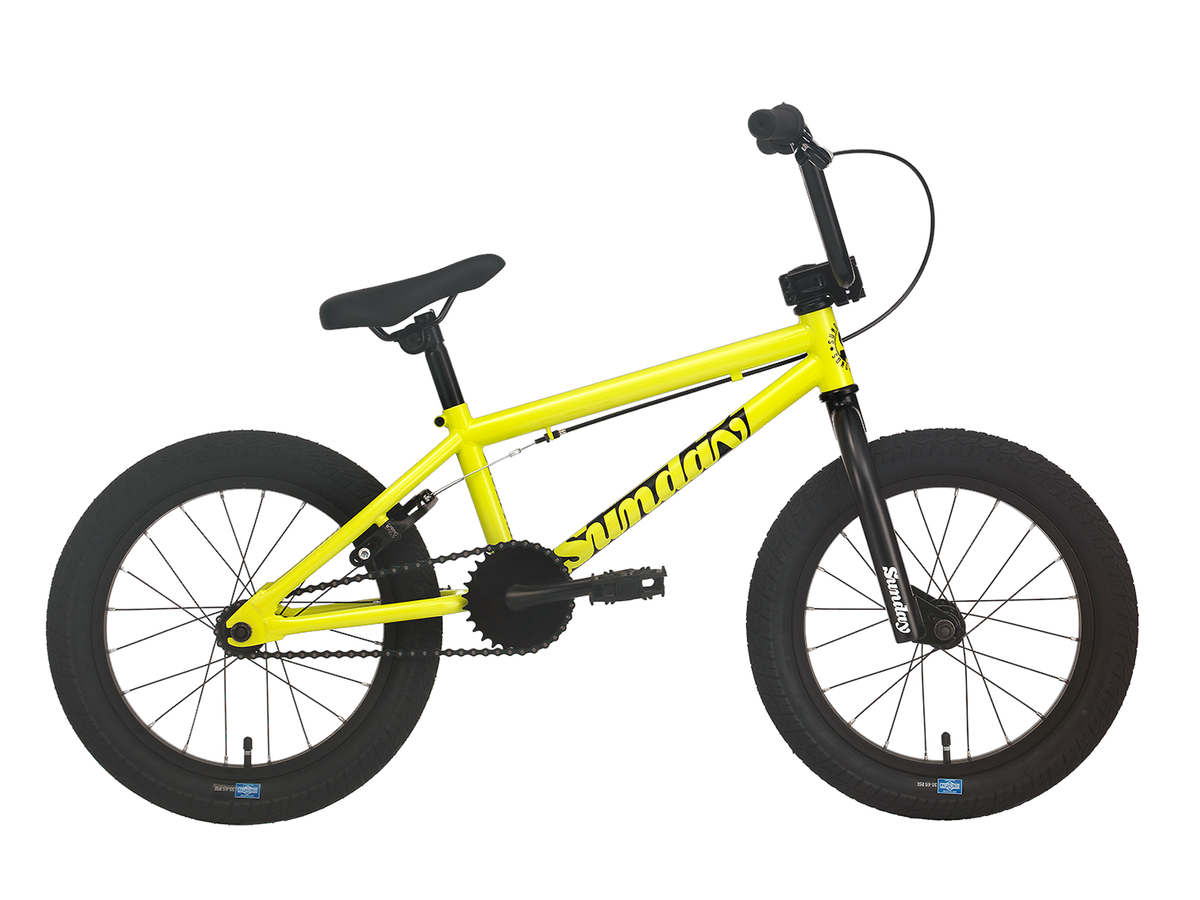

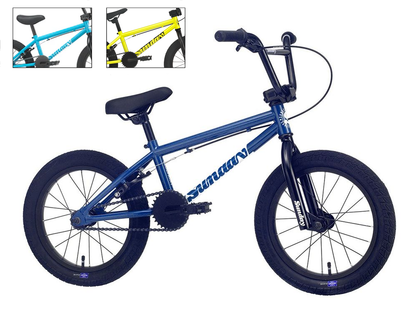

Sunday Blueprint 16" BMX Bike

What a perfect BMX bike for kids the Sunday Blueprint 16" bike is; an epic entry into the world of BMX. Built Sunday bikes strong featuring odyssey components the blue print 16 is the perfect beginner BMX.

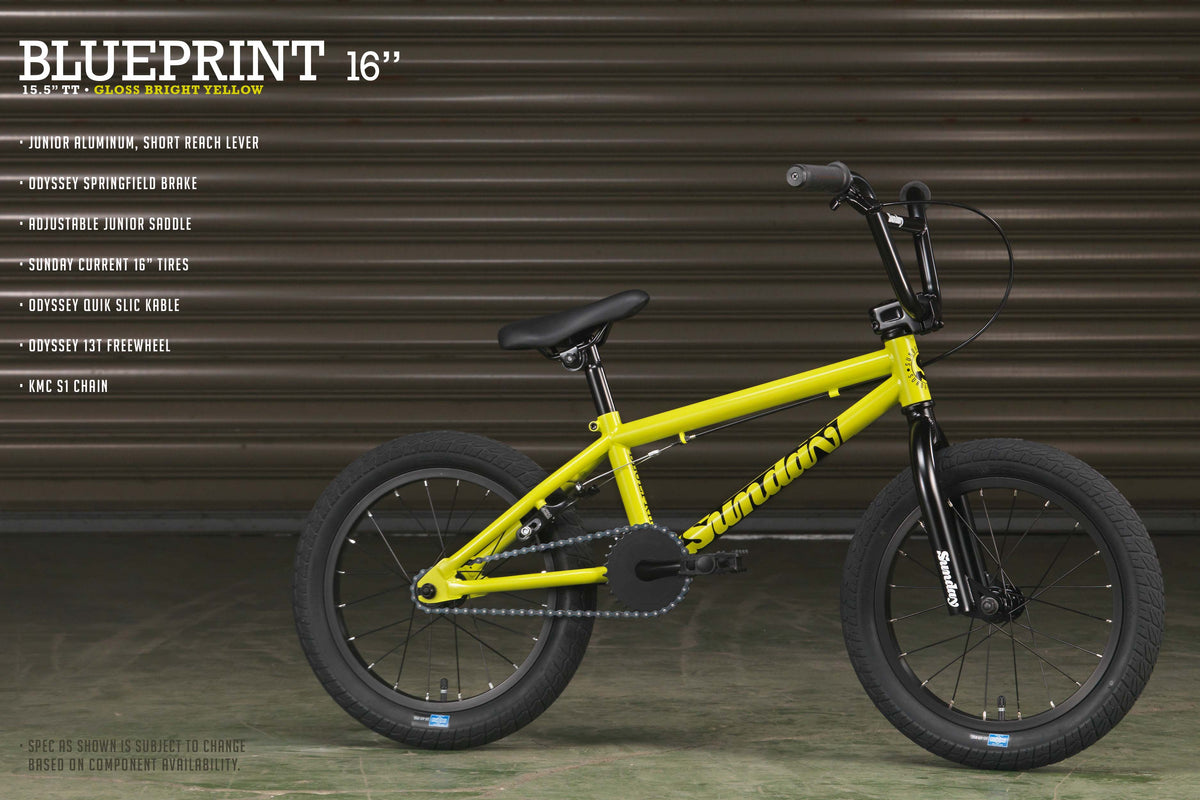

Features
- Adjustable Junior Saddle
- Sunday Current 16" Tyres
- 13t Odyssey Freewheel
- Odyssey Springfield Brakes
- Odyssey Quik Slic Kable
- KMC S1 Chain

Specifications
Frame - Sunday Blueprint, 15.5" top tube
Fork - Sunday Blueprint 16" fork w/ 2-piece steerer tube
Handlebar - Sunday, 2-piece
Stem - Front load, aluminium, 40mm
Headset - Traditional 1-1/8"
Alloy Cap - Aluminum cap w/ star nut

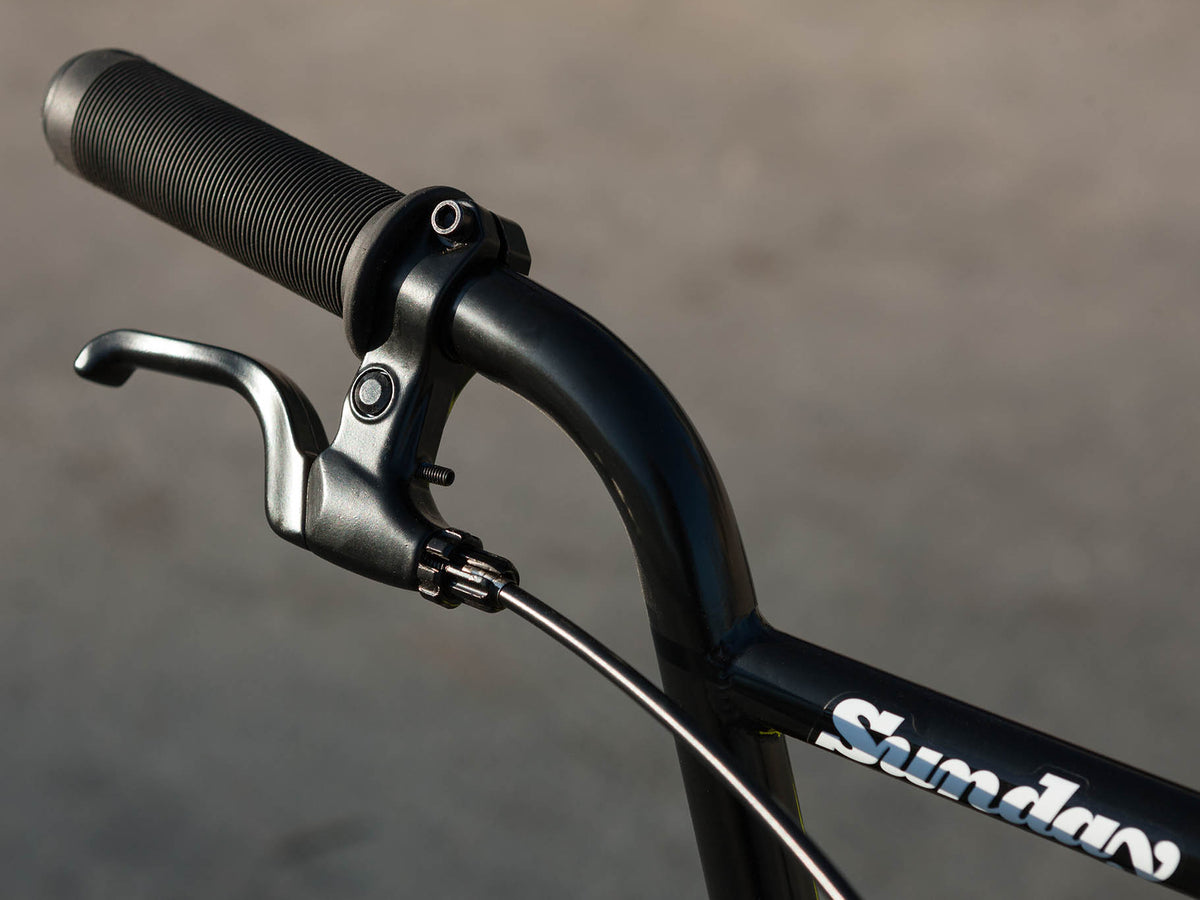

Brake Lever - Junior Aluminum, Short Reach, U-brake compatible
Brakes - Odyssey Springfield U-brake
Brake Cable - Odyssey Quik Slic

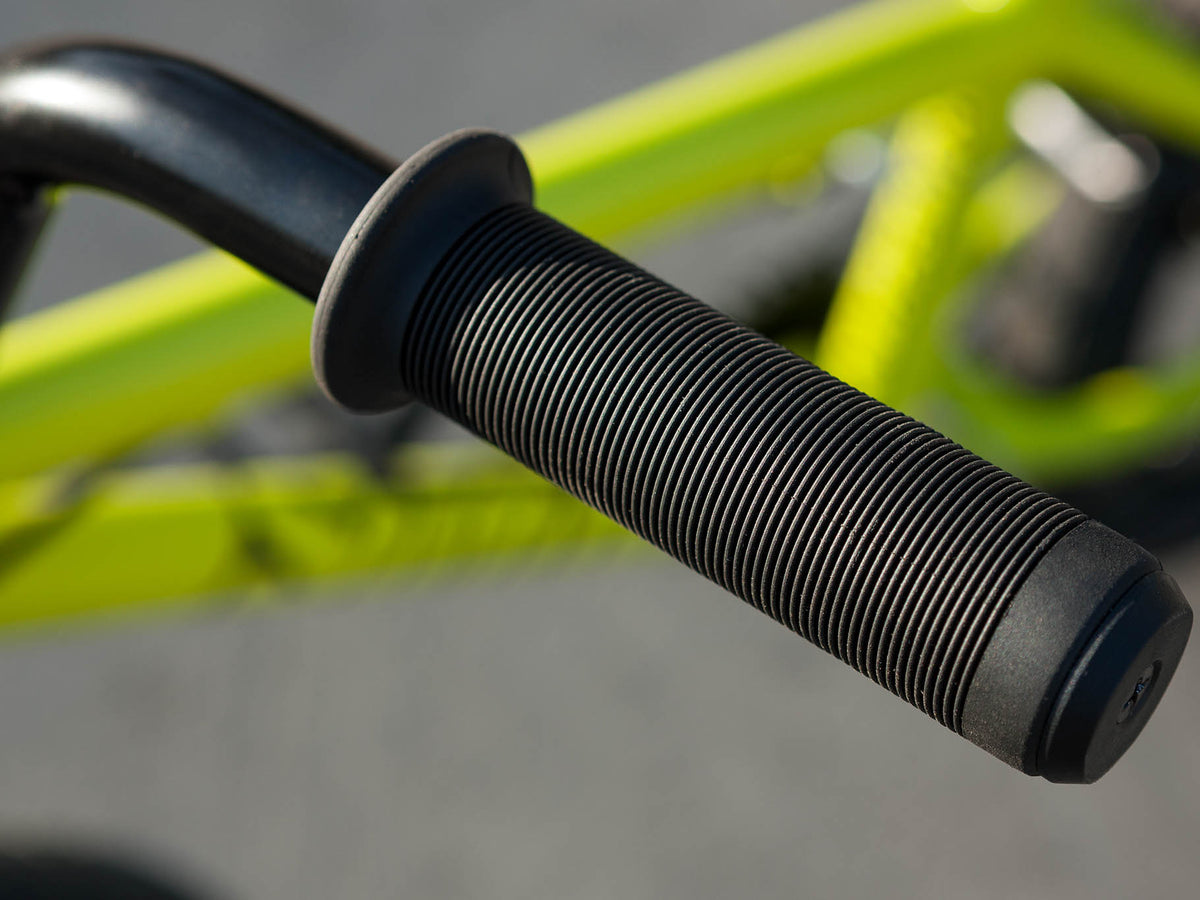

Grips - Velo Junior

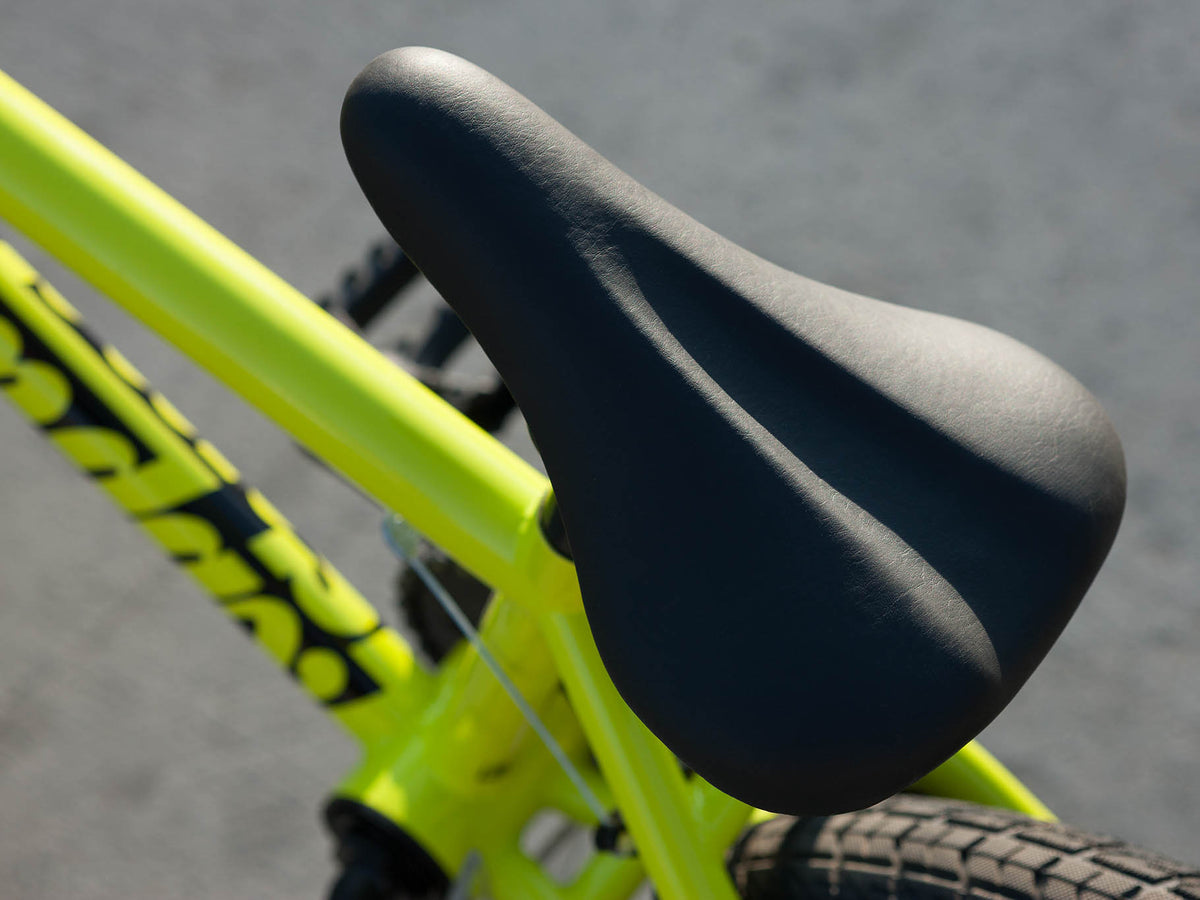

Seat - Velo Junior, adjustable
Seat Post - 1" steel
Seat Clamp - Integrated
Sprocket - Sunday S-Logo, 28-T, steel
Cranks - 115mm, 1-piece
BB Parts - Loose-ball, American, 19mm

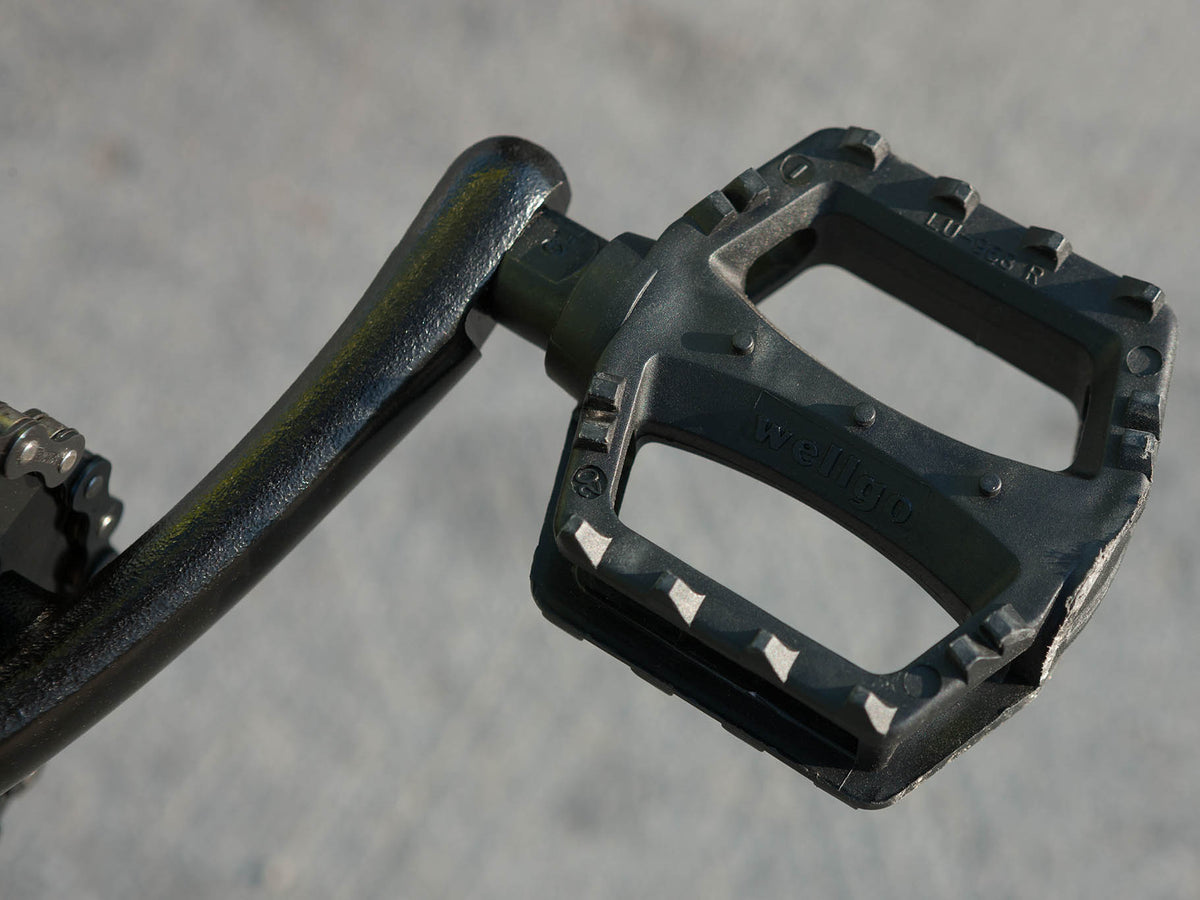

Pedals - Wellgo Junior platform, plastic
Rims - P-7X aluminum, 16", 20H
Front Hub - Sunday, 20H, low-flange, loose-ball, 3/8" axle
Rear Hub - 20H, loose-ball, 3/8 axle w/ Odyssey 13T freewheel
Spokes - 14g steel, black
Tyres - Sunday Current, 16x2.1" (F&R)
Chain - KMC S1
Approx. Weight - 9.86kgs (with brakes)

Frame Geometry
Top Tube Length - 15.5"
Head Tube Angle - 73.5°
Seat Tube Angle - 71°
Chainstay Length - 11.25"
Bottom Bracket Height - 9.25"
Standover - 6.9"

Handlebar Geometry
Rise - 6.75"
Width - 23"
Backsweep - 12°
Upsweep - 1°
